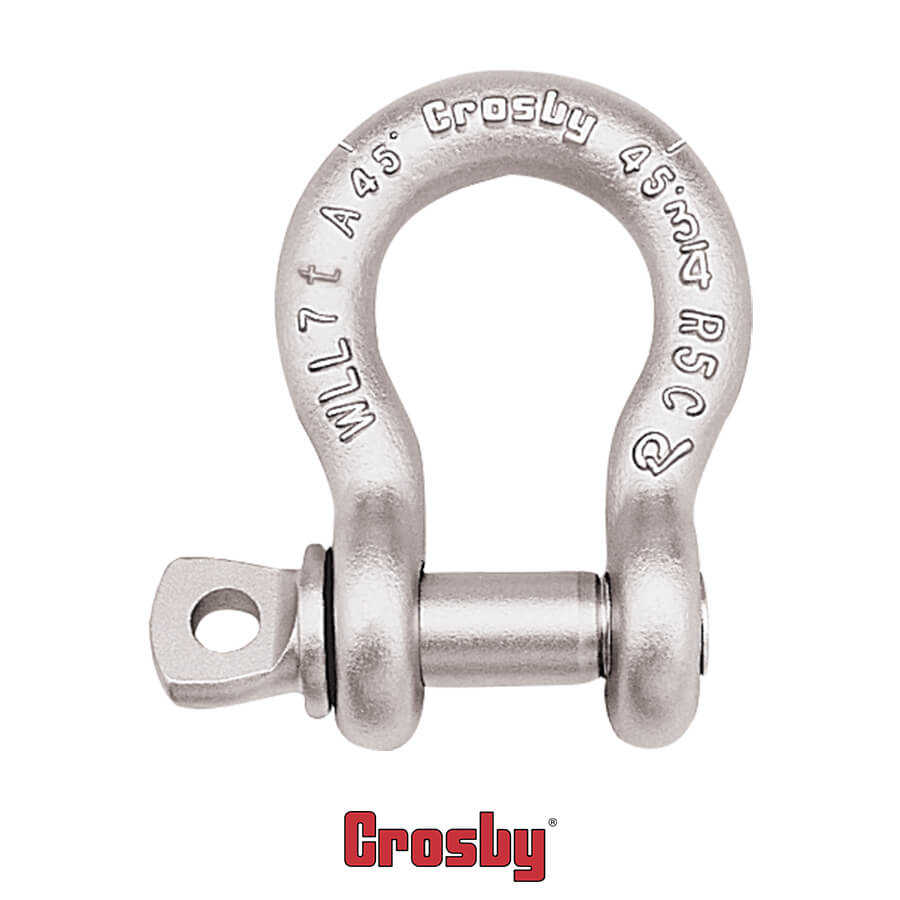

Crosby® Alloy Screw Pin Shackles – G-209A

Crosby® Alloy Screw Pin Shackles - G-209A

G-209A
Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271F Type IVA, Grade B, Class 2, except for those provisions required of the contractor.
For additional information, see Crosby Catalog.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

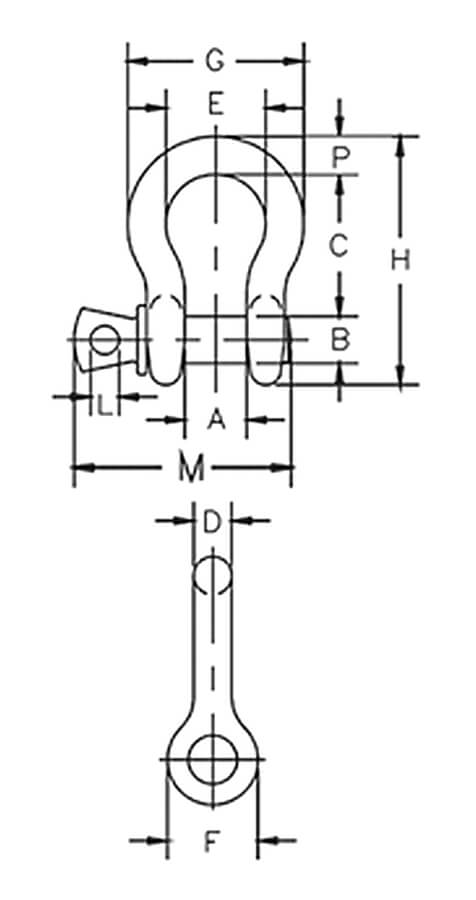

Nominal Size (in.) Working Load Limit (t)* G-209A Stock No. Weight Each (lbs.) Dimensions (in.) Tolerance
+ / –
A B C D E F G H L M P C A
3/8 2 1017450 .31 .66 .44 1.44 .38 1.03 .91 1.78 2.49 .25 2.03 .38 .13 .06
7/16 2-2/3 1017472 .38 .75 .50 1.69 .44 1.16 1.06 2.03 2.91 .31 2.38 .44 .13 .06
1/2 3-1/3 1017494 .63 .81 .63 1.88 .50 1.31 1.19 2.31 3.28 .38 2.69 .50 .13 .06
5/8 5 1017516 1.38 1.06 .75 2.38 .63 1.69 1.50 2.94 4.19 .44 3.34 .69 .13 .06
3/4 7 1017538 2.35 1.25 .88 2.81 .75 2.00 1.81 3.50 4.97 .50 3.97 .81 .25 .06
7/8 9-1/2 1017560 3.61 1.44 1.00 3.31 .88 2.28 2.09 4.03 5.83 .50 4.50 .97 .25 .06
1 12-1/2 1017582 5.32 1.69 1.13 3.75 1.00 2.69 2.38 4.69 6.56 .56 5.07 1.06 .25 .06
1-1/8 15 1017604 7.25 1.81 1.25 4.25 1.16 2.91 2.69 5.16 7.47 .63 5.59 1.25 .25 .06
1-1/4 18 1017626 9.88 2.03 1.38 4.69 1.29 3.25 3.00 5.75 8.25 .69 6.16 1.38 .25 .06
1-3/8 21 1017648 13.25 2.25 1.50 5.25 1.42 3.63 3.31 6.38 9.16 .75 6.84 1.50 .25 .13



* Maximum Proof Load is 2 times the Working Load Limit (metric tons) and 2.2 times the Working Load Limit (short tons). Minimum Ultimate Strength is 4.5 times the Working Load Limit for metric tonnes, and 5 times the Working Load Limit for short tons. For Working Load Limit reduction due to side loading applications, see Crosby Catalog.



  • Capacities 2 thru 21 metric tons. Meets performance requirements of Grade 8 shackles.
  • Forged Alloy Steel – Quenched and Tempered, with alloy pins.
  • Working Load Limit permanently shown on every shackle.
  • Hot Dip Galvanized.
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification. Charges for proof testing and certification available when requested at the time of order
  • Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).
  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.
    Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
