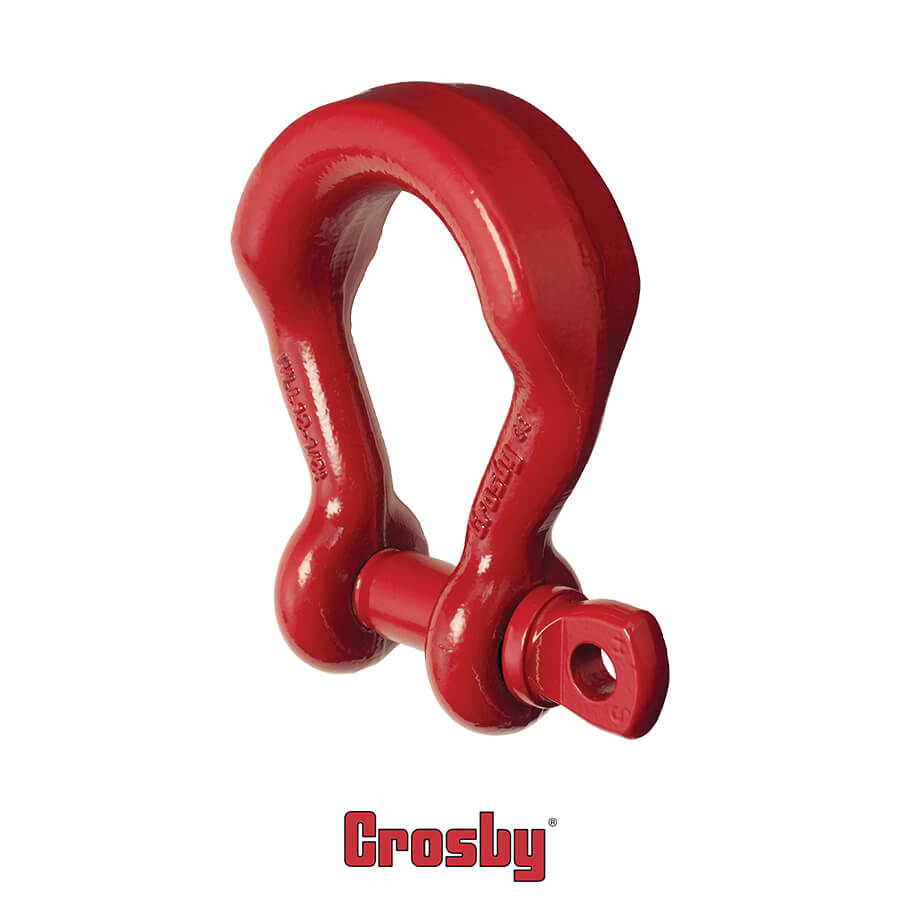

Crosby® Alloy Screw Pin Wide Body Shackles – G-2169 / S-2169

Crosby® Alloy Screw Pin Wide Body Shackles - G-2169 / S-2169
  • Capacities of 7, 12.5 and 18 metric tons
  • Quenched and Tempered for maximum strength.
  • Forged Alloy Steel.
  • Available in galvanized and self colored finish.
  • Individually proof tested and magnetic particle inspected. Crosby certification available at time of order.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

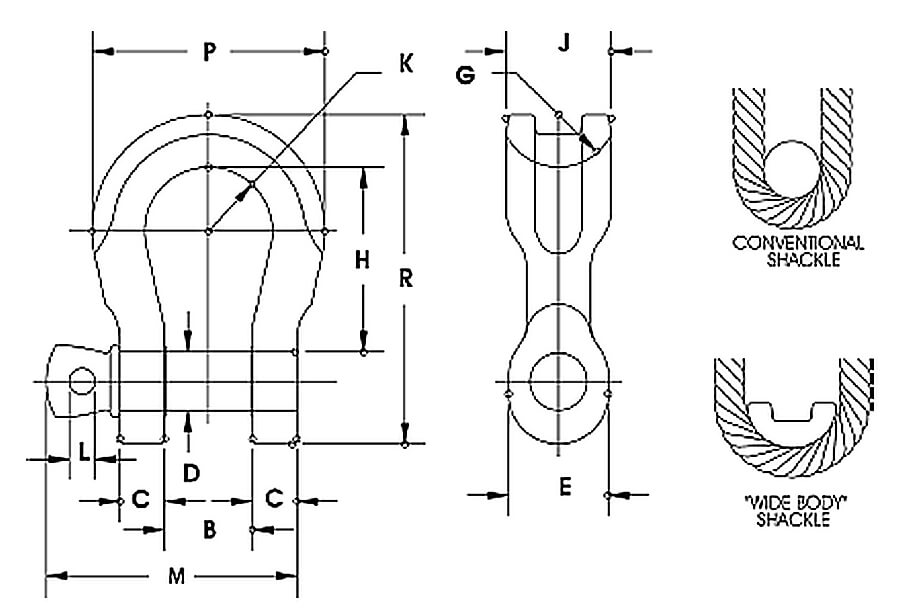

G-2169 / S-2169 Alloy Screw Pin “Wide Body” Shackles

Working Load Limit (t)* G-2169 Stock No S-2169 Stock No. Weight Each (lbs.) Dimensions (in.)
B +/- .25 C D +/- .02 E G H J K L M P R
7 1021655 1021664 3.5 1.25 .69 .88 1.82 1.25 3.56 1.60 1.25 .50 3.97 4.10 5.87
12.5 1021673 1021682 8.8 1.69 .92 1.13 2.38 1.37 4.63 2.13 1.63 .56 5.13 5.51 7.63
18 1021691 1021699 13 2.03 1.16 1.38 2.69 1.50 5.81 2.50 2.00 .69 6.25 6.76 9.38



* Ultimate Load is 5 times the Working Load Limit. Proof Load is 2 times the Working Load Limit.





  • Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
  • Look for the Red Pin®… the mark of genuine Crosby quality.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
