IPTK

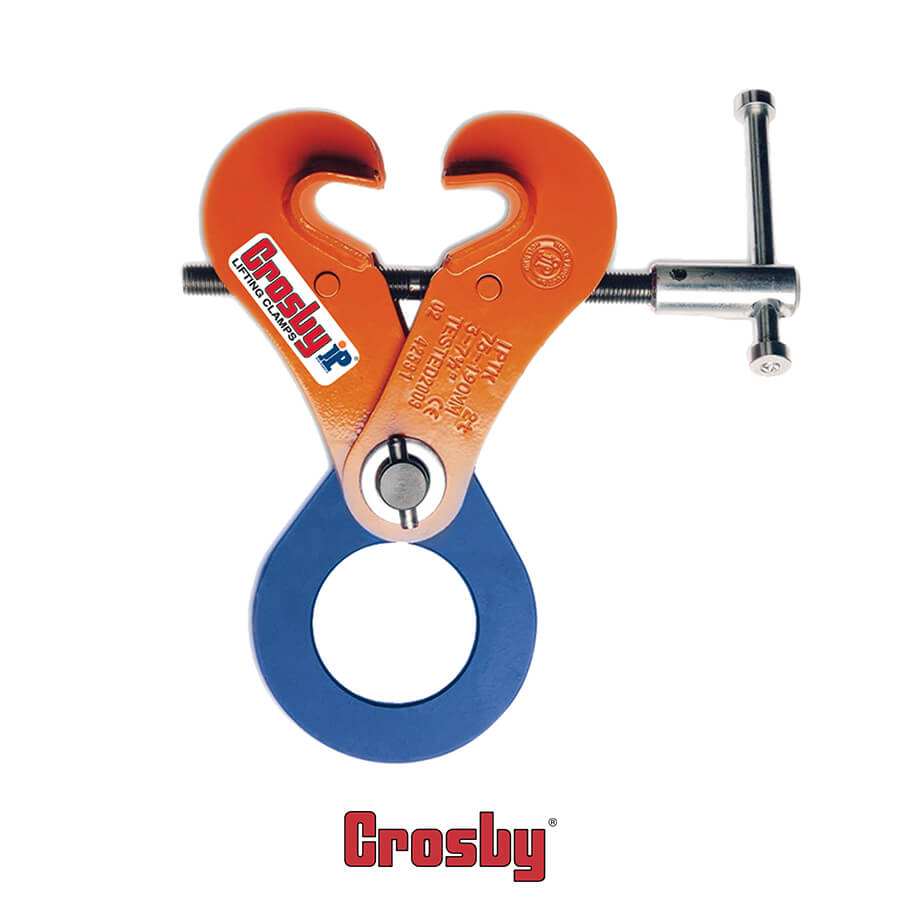

This IPTK series beam clamp is suitable for use as a temporary tackle eye for a beam.

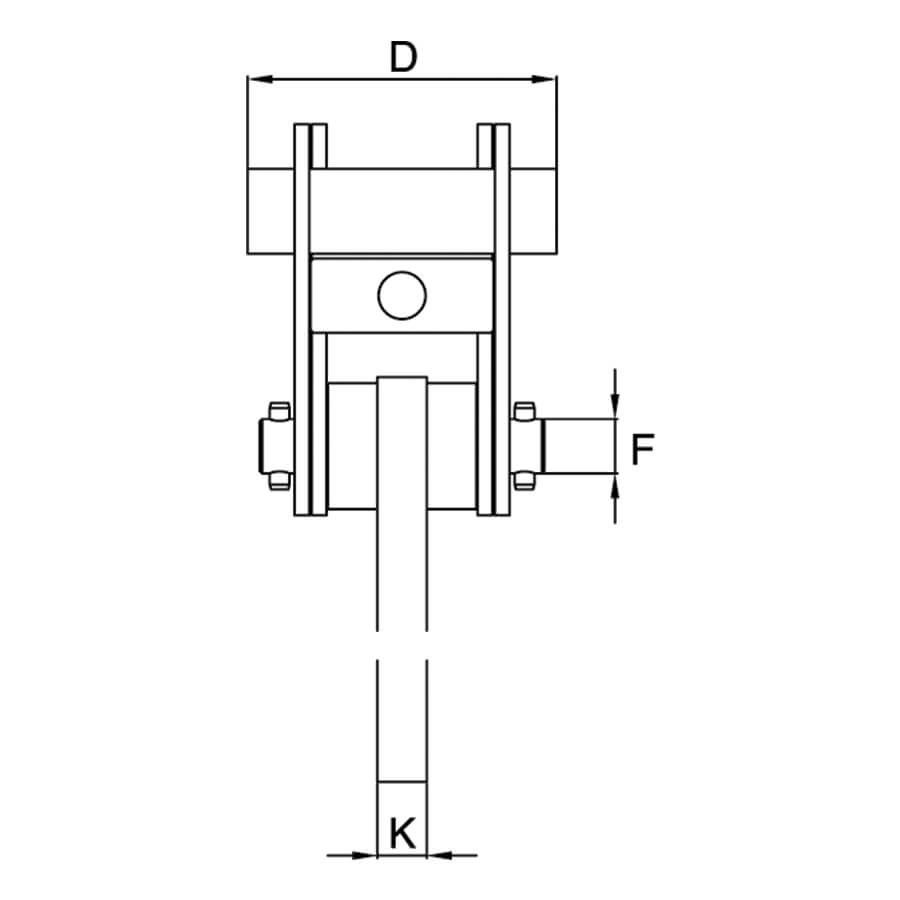

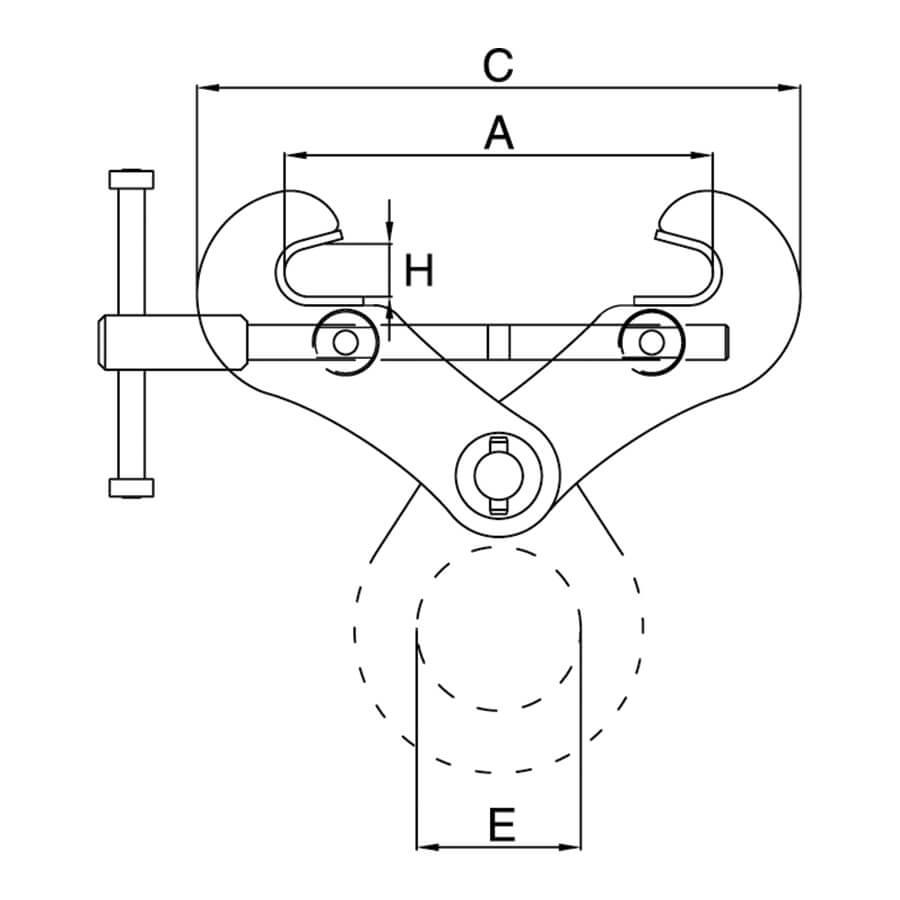

| Model | Working Load Limit (t)* | Stock No. | Weight Each (lbs.) | Dimensions (in.) | |||||||
| Jaw A | C | D | E | F | H | J | K | ||||
| IPTK | 2 | 2700996 | 13.2 | 3.00 – 7.50 | A + 3.13 | 4.92 | 2.95 | – | .98 | – | .79 |
| IPTK | 3 | 2700997 | 14.3 | 3.00 – 7.50 | A + 3.13 | 4.92 | 2.95 | – | .98 | – | .79 |
| IPTK | 4 | 2700998 | 18.7 | 5.88 – 11.25 | A + 4.00 | 4.92 | 2.95 | – | 1.38 | – | .79 |
| IPTK | 5 | 2700994 | 24.3 | 4.75 – 13.75 | A + 7.67 | 4.92 | 2.95 | – | 1.57 | – | .79 |
| IPTK | 10 | 2700970 | 68.3 | 11.75 – 19.70 | A + 11.75 | 6.98 | 2.91 | – | 1.57 | – | 1.18 |
| IPTK | 25 | 2702999 | 496 | 18.00 – 40.00 | A + 8.66 | 19.69 | 4.92 | – | 2.99 | – | 1.77 |
* Design Factor based on EN 13155 and ASME B30.20
