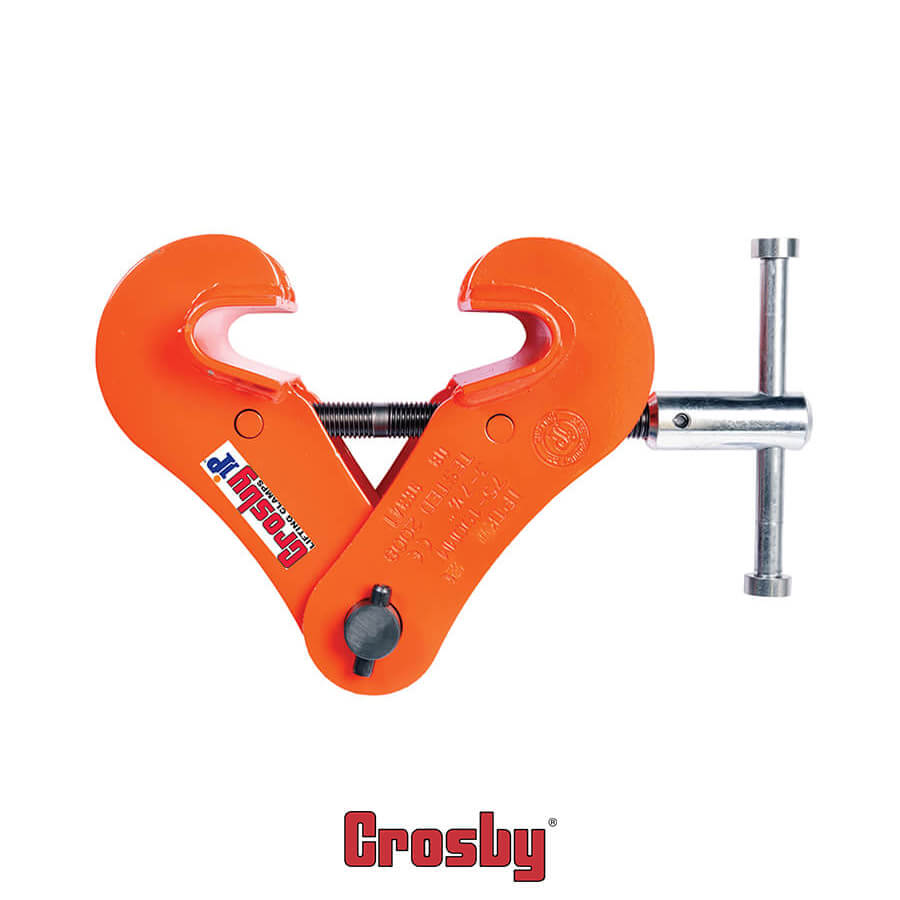

IPTKW

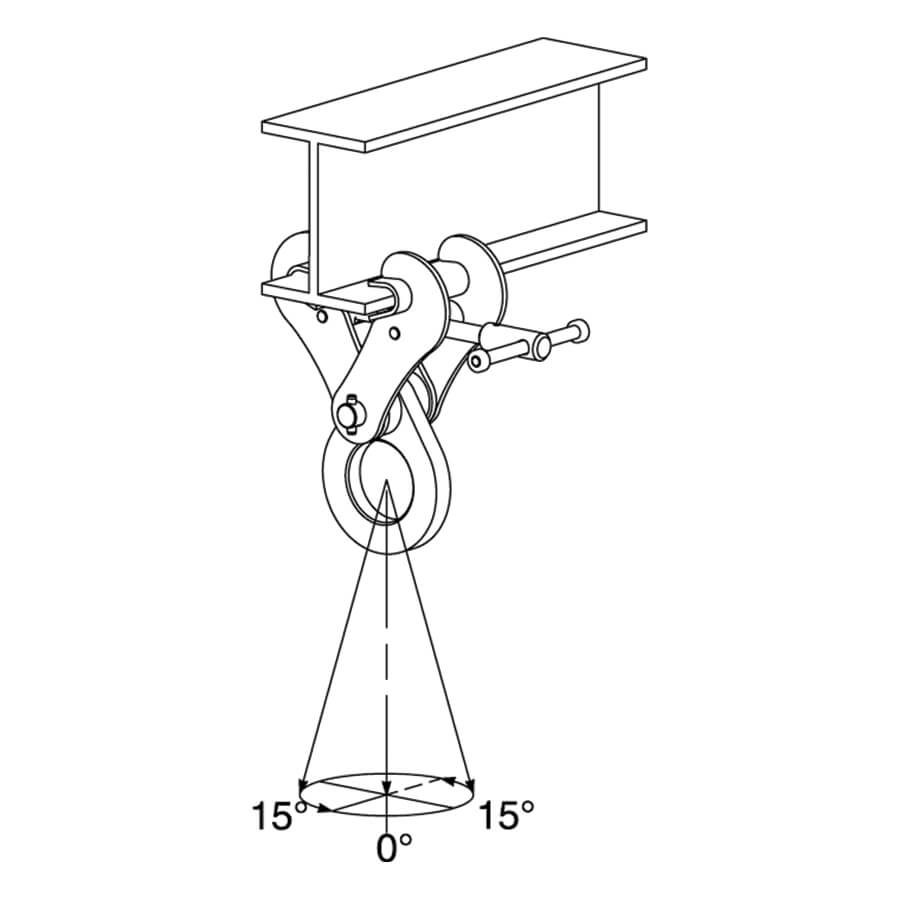

This IPTKW series beam clamp is suitable for use as a temporary tackle eye for a beam.
| Model | Working Load Limit (t)* | Stock No. | Weight Each (lbs.) | Dimensions (in.) | |||||||
| Jaw A | C | D | E | F | H | J | K | ||||
| IPTKW | 2 | 2700966 | 8.82 | 3.00 – 7.50 | A + 3.13 | 4.92 | – | 1.10 | .98 | – | – |
| IPTKW | 3 | 2700967 | 9.92 | 3.00 – 7.50 | A + 3.13 | 4.92 | – | 1.10 | .98 | – | – |
| IPTKW | 4 | 2700968 | 13.9 | 5.88 – 11.25 | A + 4.00 | 4.92 | – | 1.30 | 1.38 | – | – |
| IPTKW | 5 | 2700969 | 19.4 | 4.75 – 13.75 | A + 7.67 | 4.92 | – | 1.30 | 1.57 | – | – |
* Design Factor based on EN 13155 and ASME B30.20
