Crosby® Bolt Type Chain Shackles – G-2150 / S-2150

Crosby® Bolt Type Chain Shackles - G-2150 / S-2150

G-2150 / S-2150

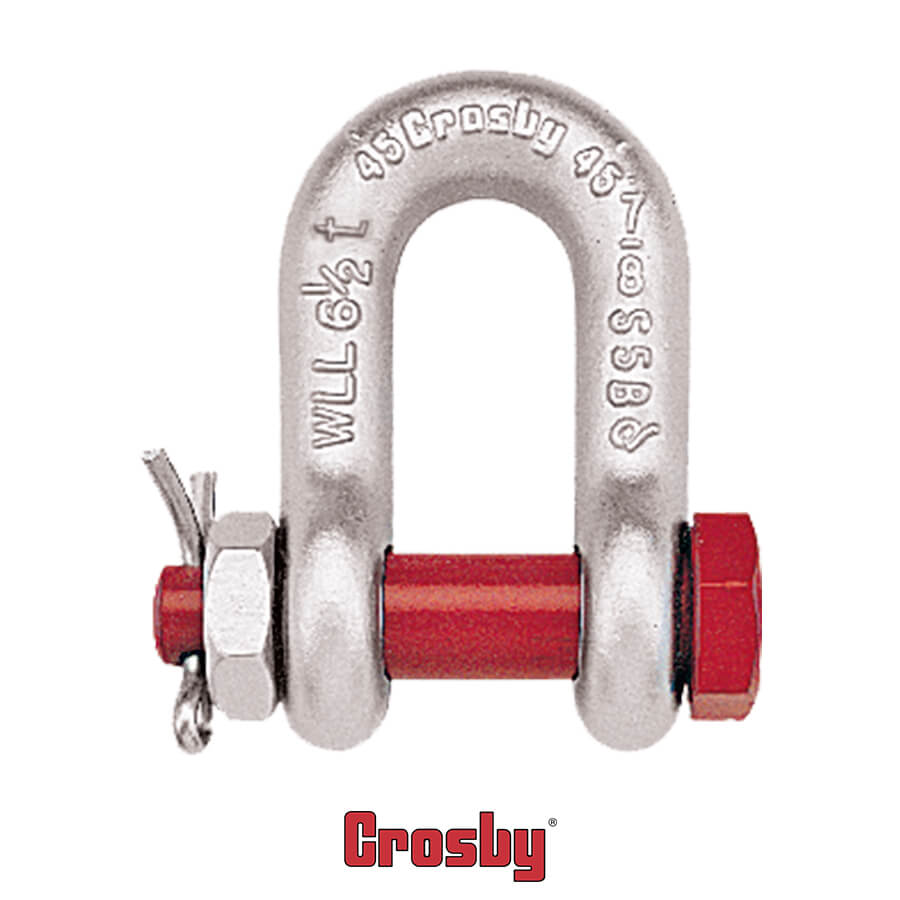

Bolt Type chain shackles with thin hex head bolt – nut with cotter pin.
Meets the performance requirements of Federal Specification RR-C-271F Type IVB, Grade A, Class 3,except for those provisions required of the contractor. For additional information, see Crosby Catalog.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

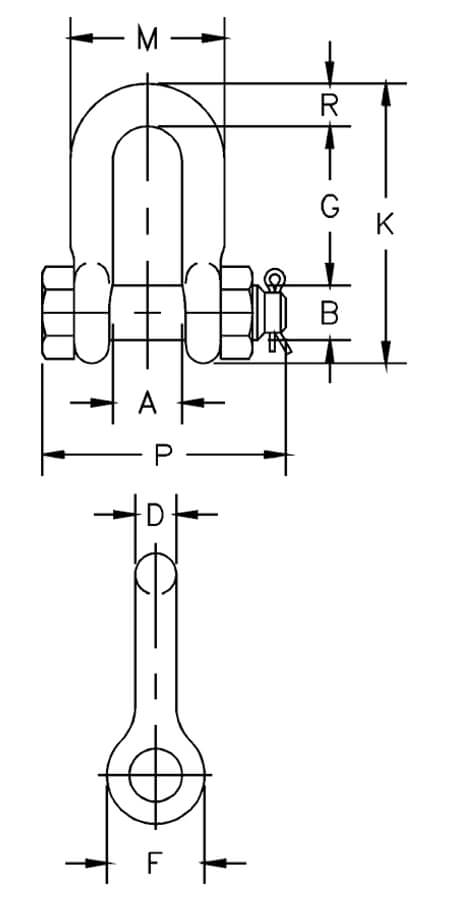

G-2150 / S-2150 Bolt Type Chain Shackles

Nominal Size (in) Working Load Limit (t) Stock No. Weight Each (lb) Dimensions (in) Tolerance (+ / – in)
G-2150 S-2150 A B D F G K M P R G A
1/4 1/2 1019768 – .13 .47 .31 .25 .62 .91 1.59 .97 1.56 .25 .06 .06
5/16 3/4 1019770 – .23 .53 .38 .31 .75 1.07 1.91 1.15 1.82 .31 .06 .06
3/8 1 1019772 – .33 .66 .44 .38 .92 1.28 2.31 1.42 2.17 .38 .13 .06
7/16 1-1/2 1019774 – .49 .75 .50 .44 1.06 1.48 2.67 1.63 2.51 .44 .13 .06
1/2 2 1019775 1019784 .75 .81 .64 .50 1.18 1.66 3.03 1.81 2.80 .50 .13 .06
5/8 3-1/4 1019793 1019800 1.47 1.06 .77 .63 1.50 2.04 3.76 2.32 3.56 .63 .13 .06
3/4 4-3/4 1019819 1019828 2.52 1.25 .89 .75 1.81 2.40 4.53 2.75 4.15 .81 .25 .06
7/8 6-1/2 1019837 1019846 3.85 1.44 1.02 .88 2.10 2.86 5.33 3.20 4.82 .97 .25 .06
1 8-1/2 1019855 1019864 5.55 1.69 1.15 1.00 2.38 3.24 5.94 3.69 5.39 1.00 .25 .06
1-1/8 9-1/2 1019873 1019882 7.60 1.81 1.25 1.13 2.68 3.61 6.78 4.07 5.90 1.25 .25 .06
1-1/4 12 1019891 1019908 10.81 2.03 1.40 1.25 3.00 3.97 7.50 4.53 6.69 1.38 .25 .06
1-3/8 13-1/2 1019917 1019926 13.75 2.25 1.53 1.38 3.31 4.43 8.28 5.01 7.21 1.50 .25 .13
1-1/2 17 1019935 1019944 18.50 2.38 1.66 1.50 3.62 4.87 9.05 5.38 7.73 1.62 .25 .13
1-3/4 25 1019953 1019962 31.40 2.88 2.04 1.75 4.19 5.82 10.97 6.38 9.33 2.12 .25 .13
2 35 1019971 1019980 46.75 3.25 2.30 2.10 5.00 6.82 12.74 7.25 10.41 2.36 .25 .13
2-1/2 55 1019999 1020004 85.00 4.12 2.80 2.63 5.68 8.07 14.85 9.38 13.58 2.63 .25 .25
3 † 85 1020013 – 124.25 5.00 3.25 3.00 6.50 8.56 16.87 11.00 15.13 3.50 .25 .25

* NOTE: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit. For Working Load Limit reduction
due to side loading applications, see Crosby Catalog. † Individually Proof Tested with certification. ‡ Furnished in Anchor style only and furnished with Round Head
Bolts with welded handles.

  • Capacities 1/2 thru 85 metric tons, grade 6.
  • Working Load Limit and grade “6” permanently shown on every shackle.
  • Forged — Quenched and Tempered, with alloy bolts.
  • Hot Dip galvanized or self colored. (85, 120, and 150-metric ton shackles are all hot dip galvanized bows and the bolts are Dimetcoted® and painted red)
  • Fatigue rated (1/2t – 55t).
  • Shackles 25t and larger are RFID EQUIPPED.
  • Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F).
  • Meets or exceeds all requirements of ASME B30.26.
  • Sizes 1/2 – 25t meet the performance requirements of EN13889:2003.
  • Shackles 55 metric tons and smaller can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order.
  • Type Approval certification in accordance with ABS 2007 Steel Vessel Rules 1-11-17.7 and ABS Guide for Certification on Cranes available. Certificates available when requested at time of order and may include additional charges.
  • All 2150 shackles can meet charpy requirements of 42 joules (31 ft-Lbs) avg at -20 degree C (-4 degree F) upon special request.
  • Look for the Red Pin®… the mark of genuine Crosby quality

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
