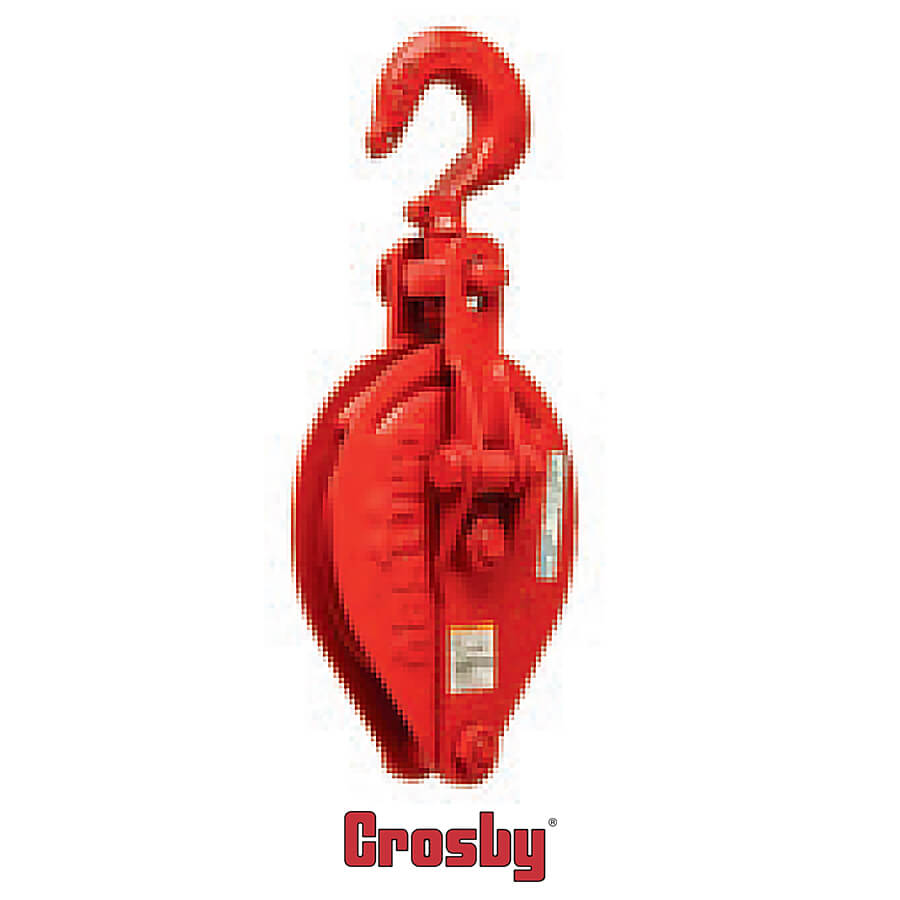

C-700 Snatch Blocks
| Sheave Diameter & Block No. | CERTEX Cat. Ref. No | Crosby Stock No. | Working Load Limit* (tons) | Wire Rope Size (in.) | Weight Each (lbs.) | Fitting |
| 6” 10611 | CX13-0286 | 260014 | 2 | 1/2 | 12.00 | Swivel Hook |
| 8” 10811 | CX13-0287 | 261013 | 3 | 5/8 | 18.60 | Swivel Hook |
* Ultimate Load is 3.5 times the Working Load Limit.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
