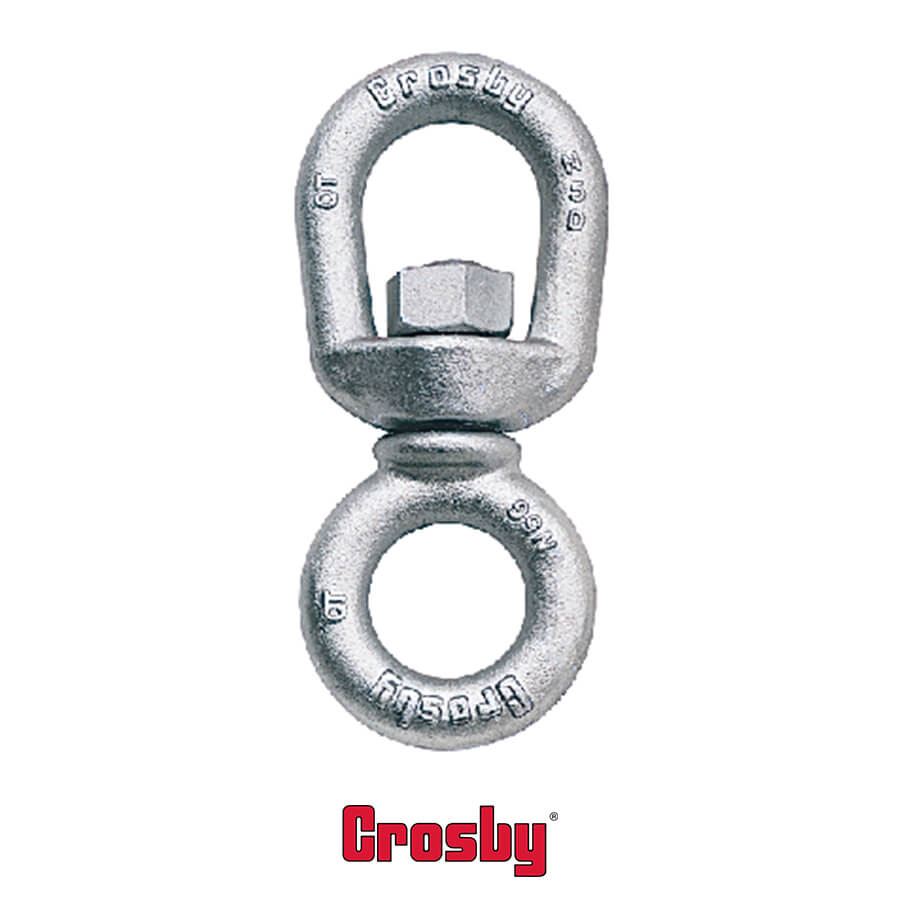

Crosby® Chain Swivels

Crosby® Chain Swivels

• Hot Dip Galvanized
• Quenched & Tempered

Meets the performance requirements of Federal Specifications RR-C-271D,
Type VII, Class 1 except for those provisions required of the contractor.

Size (in.) CERTEX Cat. Ref. No. Crosby G-401 Stock No. Galv Working Load Limit * (lbs.) Weight Each (lbs.) Dimensions (in.)
A B C D E G J M R T U V
1/4 CX05-0299 1016233 850 0.13 1.25 0.69 0.75 0.62 1.12 0.25 0.69 0.31 2.25 2.75 1.69 1.25
5/16 CX05-0300 1016251 1250 0.25 1.63 0.81 1.00 0.75 1.38 0.31 0.81 0.38 2.72 3.34 2.06 1.47
3/8 CX05-0301 1016279 2500 0.54 2.00 0.94 1.25 1.00 1.75 0.38 1.00 0.50 3.44 4.19 2.50 1.88
1/2 CX05-0302 1016297 3600 1.12 2.50 1.31 1.50 1.25 2.25 0.50 1.31 0.63 4.25 5.25 3.19 2.44
5/8 CX05-0303 1016313 5200 2.09 3.00 1.56 1.75 1.50 2.75 0.62 1.50 0.75 5.13 6.31 3.88 2.94
3/4 CX05-0304 1016331 7200 3.09 3.50 1.75 2.00 1.75 3.25 0.75 1.88 0.88 5.78 7.22 4.94 3.46

* Ultimate Load is 5 times the Working Load Limit

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
