Crosby® Eye Hooks with or without Latch

Crosby® Eye Hooks with or without Latch

View Warnings & Application Instructions for Crosby® Eye Hooks.
See Replacement Latch Kits for Crosby® Hooks.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

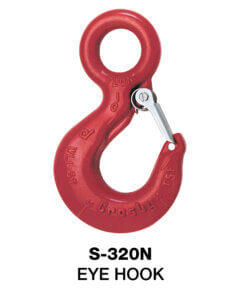

L-320N /L-320 Eye Hooks

Working Load Limit (t) Hook ID Code Eye Hook Stock No. Weight Each (lb) Replacement Latch Kits
Carbon Alloy Carbon L-320C L-320CN S.C. Carbon GL-320CN Galv. Alloy L-320A L-320AN S.C. S-4320 Stock No. PL Stock No. SS-4055 Stock No.
0.75 1 †D 1022205 1022208 1022380 .61 1096325 – –
1 1.5 †F 1022216 1022219 1022391 .89 1096374 – –
1.5 2 †G 1022227 1022230 1022402 1.44 1096421 – –
2 3 †H 1022238 1022241 1022413 2.07 1096468 – –
3 5 †I 1022246 1022249 1022424 4.30 1096515 1092000 –
5 7 †J 1022260 1022262 1022435 8.30 1096562 1092001 –
7.5 11 †K 1022271 1022274 1022446 15.00 1096609 1092002 –
10 15 †L 1022282 1022285 1022457 20.77 1096657 1092003 –
15 22 †N 1022293 1022296 1022468 39.50 1096704 1092004 –
20 30 O 1022302 – 1022477 60.00 – 1093716 1090161
25 37 P 1023306 – 1023565 105.00 – 1093717 1090189
40 45 S 1023324 – 1023583 148.00 – 1093718 1090189
40 60 T 1023342 – 1023609 228.00 – 1093719 1090205

All carbon hooks have a 5:1 Design Factor. Alloy eye hooks it through 22t have a 5:1 Design Factor. Alloy eye hooks 30t through 60t have a 4.5:1 Design Factor. For 3/4t carbon through 22t alloy eye hooks, Proof Load is 2.5 times Working Load Limit. For 20t carbon through 60t alloy eye hooks, Proof Load is 2 times Working Load Limit.

  • Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK® features.
    • Deformation Indicators — Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a QUIC-CHECK® measurement to determine if the throat opening has changed, thus indicating abuse or overload. To check, use a measuring device (i.e. tape measure) to measure the distance between the marks. The marks should align to either an
      inch or half-inch increment on the measuring device. If the measurement does not meet this criteria, the hook should be inspected further for possible damage.
    • Angle Indicators — Indicates the maximum included angle which is allowed between two (2) sling legs in the hook. These indicators also provide the opportunity to approximate other included angles between two sling legs.

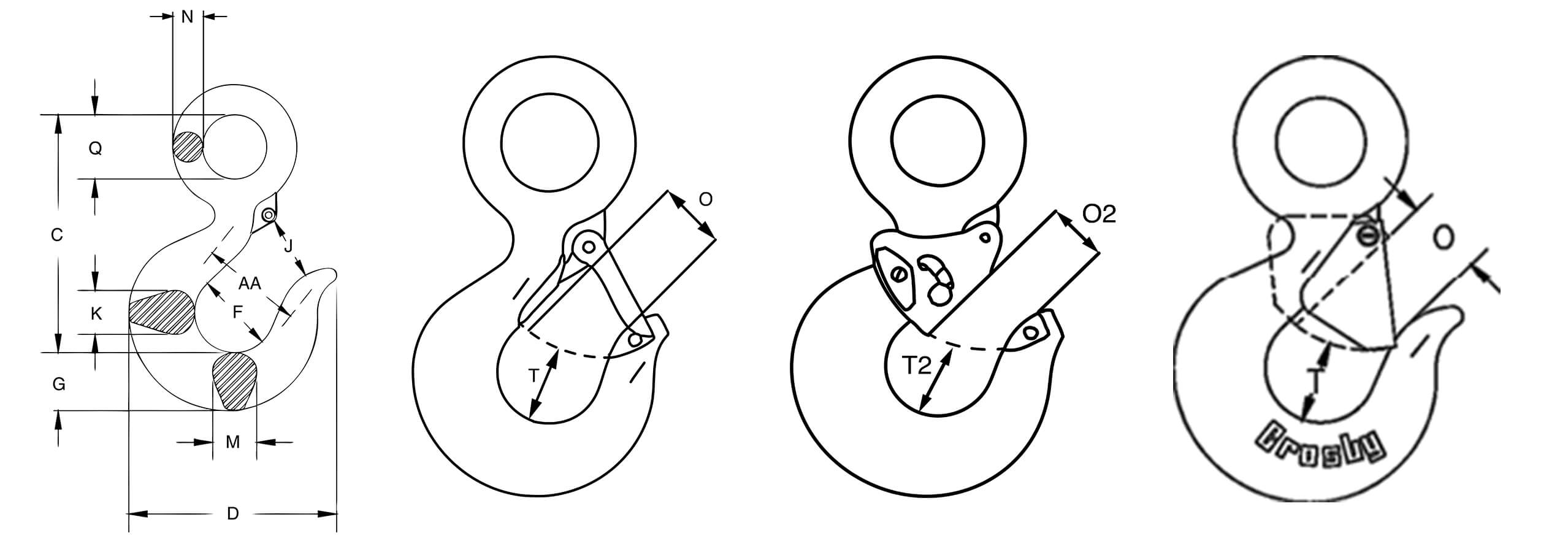

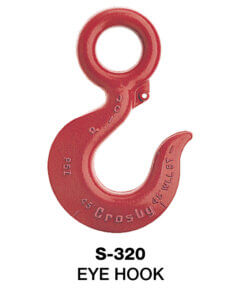

S-320 / S-320N Eye Hooks

Hook ID Code* Dimensions (in.)
C D F G J K M N O † O2 †† Q T † T2 †† AA**
D 3.34 2.83 1.25 .73 .90 .63 .63 .36 .89 – .75 .87 – 1.50
F 3.81 3.11 1.38 .84 .93 .71 .71 .42 .91 – .91 .98 – 2.00
G 4.14 3.53 1.50 1.00 1.00 .88 .88 .55 1.00 – 1.13 1.03 – 2.00
H 4.69 3.97 1.63 1.13 1.13 .94 .94 .58 1.09 – 1.25 1.16 – 2.00
I 5.77 4.81 2.00 1.44 1.47 1.31 1.31 .72 1.36 1.00 1.56 1.53 1.50 2.50
J 7.37 6.27 2.50 1.81 1.75 1.66 1.66 .90 1.61 1.31 2.00 1.96 1.88 3.00
K 9.07 7.45 3.00 2.25 2.29 1.88 1.63 1.11 2.08 1.81 2.44 2.47 2.25 4.00
L 10.08 8.30 3.25 2.59 2.50 2.19 1.94 1.27 2.27 2.00 2.84 2.62 2.31 4.00
N 12.53 10.30 4.25 3.00 3.30 2.69 2.38 1.56 3.02 2.75 3.50 2.83 2.56 5.00
O 14.06 13.62 5.00 3.62 4.00 3.00 3.00 1.75 3.25 – 3.50 3.44 – 6.50
P 18.19 14.06 5.38 4.56 4.25 3.75 3.19 2.00 3.00 – 4.50 3.88 – 7.00
S 20.12 15.44 6.00 5.06 4.75 4.50 3.25 2.18 3.38 – 4.94 4.75 – 8.00
T 23.72 18.50 7.00 6.00 5.75 5.50 3.91 2.53 4.12 – 5.69 5.69 – 10.00

*Eye Hooks (3/4 TC-22TA), Proof load is 2 times Working Load Limit. Eye Hooks (20 TC-60TA). All carbon hooks – average straightening load (ultimate load) is 5 times Working Load Limit.
Alloy eye hooks 1t through 22t – average straightening load (ultimate load) is 5 times Working Load Limit. Alloy eye hooks 30t through 60t – average straightening load (ultimate load) is 4.5 times Working Load Limit.
** Deformation Indicators.† 3/4tC – 22tA dimensions shown are for S-4320 Latch Kits. Dimensions for sizes 20t carbon and larger are for PL Latch Kits.
†† Dimensions are for PL-N latch kits.

SEE APPLICATION AND WARNING INFORMATION

Eye Hooks
All Crosby 320 Eye Hoist Hooks incorporate the
following features:

  • The most complete line of Eye hoist hooks.
  • Available in carbon steel and alloy steel.
  • Designed with a 5:1 Design Factor for (Carbon Steel); 4.5:1 Design Factor for 30t – 60t (Alloy Steel).
  • Eye hooks are load rated.
  • Proper design, careful forging and precision controlled quenched and tempering give maximum strength
    without excessive weight and bulk.
  • Every Crosby Eye Hook has a pre-drilled cam which can be equipped with a latch. Even years after purchase of the original hook, latch assemblies can be added. (See pages 116, 118, & 120)
  • Chemical analysis and tensile tests performed on each PIC to verify chemistry and mechanical properties.
  • Type Approval certification in accordance with ABS 2007 Steel Vessel Rules 1-11-17.7 and ABS Guide for
    Certification on Cranes available. Certificates available when requested at time of order and may include
    additional charges.
  • Hoist hooks incorporate two types of strategically placed markings forged into the product which address
    two (2) QUIC-CHECK® features:

    • Deformation Indicators and Angle Indicators (see following page for detailed definition).

The following additional features have been incorporated in the new Crosby S-320N Eye Hoist Hooks. (Sizes 3/4 metric ton Carbon through 22 metric ton Alloy.)

  • Metric Rated at 5:1 Design Factor for (Carbon Steel); 5:1 Design Factor for 1t – 22t (Alloy Steel).
  • Can be proof tested to 2 times the Working Load Limit.
  • Low profile hook tip.
  • New integrated latch (S-4320) meets the world-class standard for lifting.
    • Heavy duty stamped latch interlocks with the hook tip.
    • High cycle, long life spring.
    • When secured with proper cotter pin through the hole in the tip of hook, meets the intent of OSHA Rule1926.1431(g) and 1926.1501(g) for personnel hoisting.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
