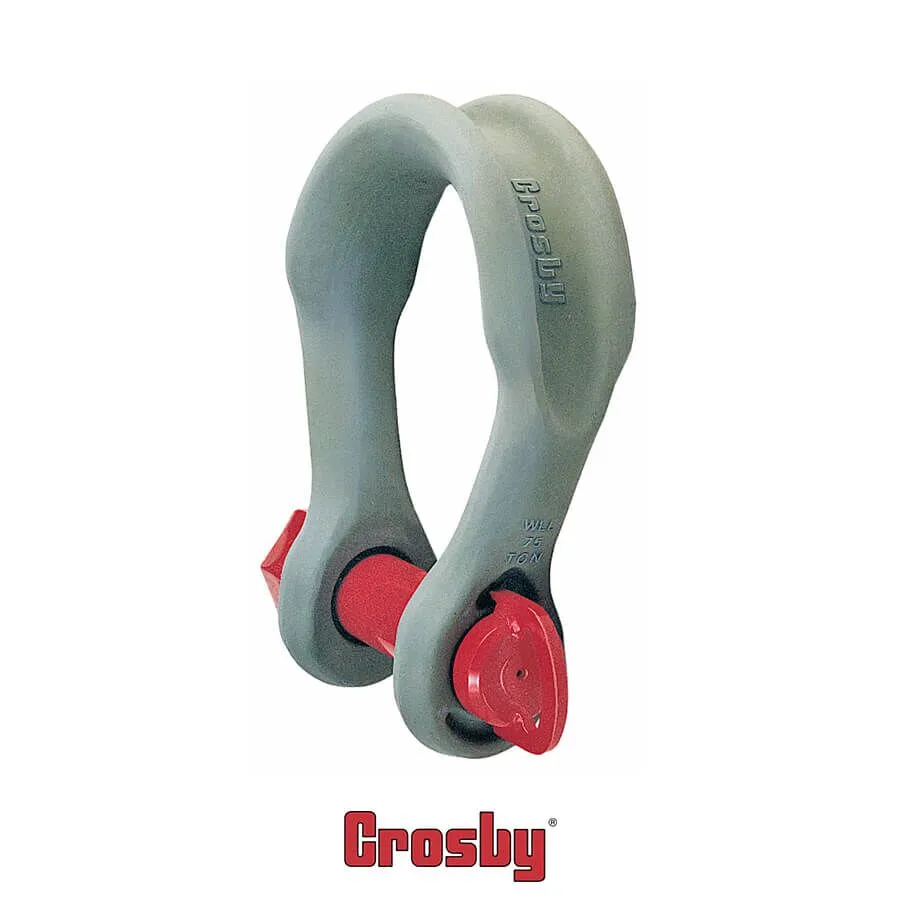

Crosby® Wide Body Shackles – G-2160 / S-2160

Crosby® Wide Body Shackles - G-2160 / S-2160

G-2160 / S-2160

  • Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and eliminates need for a thimble
  • Increases usable sling strength a minimum of 15% and greatly improves life of wire rope slings.
  • Can be used to connect synthetic web slings, synthetic round slings or wire rope slings
  • All sizes Quenched & Tempered for maximum strength.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

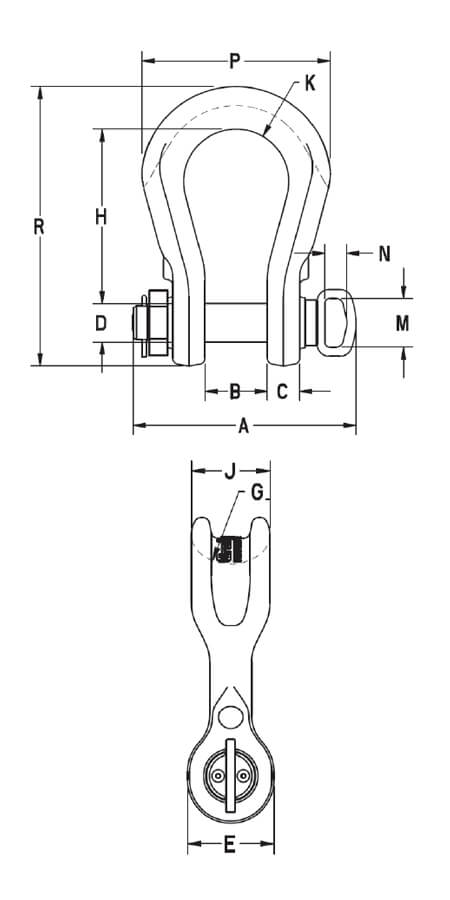

G-2160 / S-2160 Wide Body Shackles

Working Load Limit (t)* Stock No. Weight Each (lb) Dimensions (in)
G-2160 S-2160 A B
+/- .25		 C D
+/- .02		 E G H J K M N P R Effective Body Diameter
7 1021256 1021548 4.0 4.14 1.25 .69 .88 1.82 1.25 3.56 1.60 1.25 – – 4.10 5.87 2.1
12.5 1021265 1021557 8.8 5.38 1.69 .92 1.13 2.38 1.37 4.63 2.13 1.63 – – 5.51 7.63 2.4
18 1021274 1021566 14.9 6.69 2.03 1.16 1.38 2.69 1.50 5.81 2.50 2.00 – – 6.76 9.38 2.8
30 1021283 1021575 26.5 7.69 2.37 1.38 1.63 3.50 2.50 6.94 3.13 2.50 – – 8.50 11.38 4.1
40 1021285 1021584 46.0 9.28 2.88 1.69 2.00 4.00 1.75 8.06 3.75 3.00 – – 10.62 13.62 3.6
55 1021287 1021593 68.0 10.36 3.25 2.00 2.25 4.63 2.00 9.36 4.50 3.50 – – 12.26 15.63 4.3
75 1022101 – 112 15.04 4.13 2.39 2.75 5.34 3.75 11.53 5.00 3.64 4.00 1.80 12.64 18.66 6.3
125 1022110 – 193 18.32 5.12 3.10 3.15 6.50 3.75 14.37 5.91 4.33 4.00 1.80 15.47 23.00 6.8
200 1022118 – 420 19.35 5.91 3.39 4.12 8.41 5.25 18.91 8.56 5.42 4.00 1.80 20.27 30.44 9.5
300 1022127 – 805 22.61 7.38 4.30 5.25 10.50 6.13 23.63 10.38 6.31 4.00 1.80 23.93 37.66 11.4
400 1021334 – 1143 30.27 8.66 5.16 6.30 12.56 7.99 22.64 12.60 7.28 4.00 1.80 27.17 38.78 14.3
500 1021343 – 1439 33.35 9.84 5.73 7.09 13.39 8.09 24.81 13.39 8.86 4.00 1.80 31.10 42.72 14.8
600 1021352 – 2132 36.02 10.83 6.23 7.87 15.50 13.00 27.56 14.57 9.74 5.75 2.25 34.05 47.24 20.3
700 1021361 – 2579 38.91 11.81 6.59 8.46 17.03 8.87 28.94 15.75 10.63 5.75 2.25 37.01 50.18 16.6
800 1021254 – 3025 41.66 12.80 7.30 9.06 17.69 9.76 29.53 16.54 10.92 5.75 2.25 38.39 52.09 18.0
900 1021389 – 3678 43.73 13.78 7.78 9.84 18.81 13.00 29.82 18.81 11.52 5.75 2.25 40.35 54.59 22.4
1000 1021370 – 4079 45.98 14.96 8.33 10.63 20.00 10.26 29.92 18.11 12.11 5.75 2.25 42.32 55.31 19.3
1250 1021272 – 5320 49.86 16.99 9.16 11.81 22.56 13.92 36.61 20.87 12.70 – – 46.26 65.35 24.4
1550 1021281 – 8302 54.89 18.31 11.10 12.60 24.25 12.52 42.32 22.82 13.29 – – 51.81 74.63 23.9

5:1 Design Factor on 75 through 300 metric tons. Maximum Proof Load is 2 times the Working Load Limit on 75 through 300 metric tons (except for 125 metric tons which is proof tested to 1.6 times the Working Load Limit). 4.5:1 Design Factor on 400 through 1550 metric tons. Maximum Proof Load is 1.33 times the Working Load Limit on 400 through 1550 metric tons.



G-2160 / S-2160

  • Forged alloy steel from 7 through 300 metric tons.
  • Cast alloy steel from 400 through 1550 metric tons.
  • Proof tested as follows:
    • 7 through 75 metric tons and 200 through 300 metric tons: 2 x WLL
    • 125 metric tons: 1.6 x WLL
    • 400 metric tons and higher: 1.33 x WLL
  • All ratings are in metric tons, embossed on side of bow
  • G-2160, (7 through 55t), are hot-dip galvanized and pins are painted red.
  • G-2160 (75t and larger), bows are furnished Dimetcoted; Pins are Dimetcoted, then painted red.
  • S-2160 bows and pins are painted red
  • Shackles 30t and larger are RFID equipped.
  • Approved for use at -40° C (-40° F) to 204° C (400° F).
  • Bow and bolt are certified to meet Charpy impact testing of 42 Joules (31 ft-lb) min. avg. at -20° C (-4° F)
  • All 2160 shackles are individually proof tested and magnetic particle inspected. Crosby certification available at time of order.
  • Shackles requiring ABS, Lloyds and other certifications are available upon special request and must be specified at time of order
  • Type approved and certification to DNV Rules for Certification of Lifting Appliances, and are produced in
    accordance with DNV MSA requirements. Databook is provided that includes required documents.
    • Serialization / Identification
    • Material Testing (physical / chemical / Charpy)
    • Proof Testing
  • Look for the Red Pin®… the mark of genuine Crosby quality
