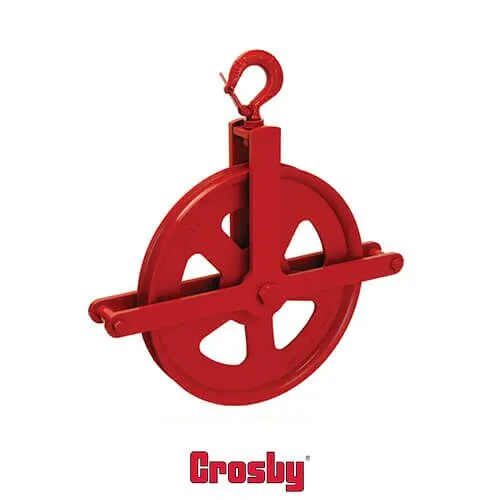

Crosby® Gin Blocks for Manila Rope

Crosby® Gin Blocks for Manila Rope

For light hoisting by Roofers and Contractors

Furnished with drop forged swivel latch hooks.
Can be furnished with SS-4055 hook latch.

Block Size (in.) Fitting T-350-C Painted T-350-R Painted T-350-B Painted Sheave Size (in.) Manila Rope Size (in.) Working Load Limit * (lbs.) Weight Each (lbs.)
CERTEX Cat. Ref. No. Crosby Stock No. CERTEX Cat. Ref. No. Crosby Stock No. CERTEX Cat. Ref. No Crosby Stock No. Outside Diameter Rim Thickness Bearing Diameter
8 T CX13-0359 710001 CX13-0363 710207 CX13-0367 710403 8.00 1.25 .75 7/8 1000 9.0
10 T CX13-0360 710029 CX13-0364 710225 CX13-0368 710421 10.00 1.25 .88 1 1000 9.8
12 T CX13-0361 710047 CX13-0365 710243 CX13-0369 710449 12.00 1.38 .88 1 1000 12.7

* Ultimate Load is 3 times the Working Load Limit.
Bearing Code: C — Common Iron, R — Roller, B — Self-Lubricating Bronze Bushed
