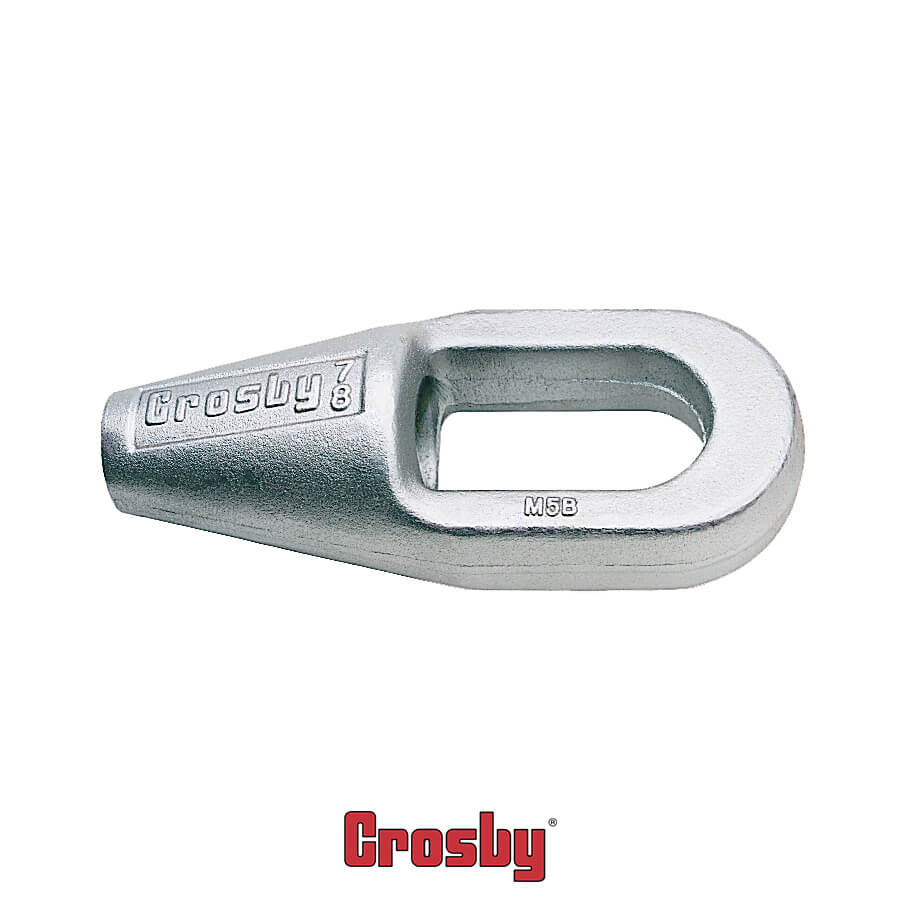

Crosby® Grooved Closed Spelter Sockets

Crosby® Grooved Closed Spelter Sockets

G-417

  • Spelter Sockets – General Guidelines
  • Forged Steel Sockets thru 1-1/2,˝ cast alloy steel 1-5/8˝ thru 4.˝
  • Spelter socket terminations have an efficiency rating of 100%, based on the catalog strength of wire rope. Ratings are based on the recommended use with 6 x 7, 6 x 19 or 6 x 37, IPS or EIP, EEIP, RRL, FC or IWRC wire rope.
  • Closed grooved Sockets meet the performance requirements of Federal Specification RR-S-550D, Type B, except for those provisions required of the contractor.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Rope Dia. (in.) Structural Strand Dia. (in.) CERTEX Cat. Ref. No. Crosby Stock No. G-417 Galv. CERTEX Cat. Ref. No. Crosby Stock No. S-417 S.C. Weight Each (lbs.) Dimensions (in.)
A B C D F G H J K L
1/4 — CX04-0098 1039897 CX04-0118 1039904 0.50 4.50 0.50 1.50 0.88 0.38 0.69 1.56 2.25 0.50 1.75
5/16—3/8 — CX04-0099 1039913 CX04-0119 1039922 0.75 4.88 0.62 1.69 0.97 0.50 0.81 1.69 2.25 0.69 2.00
7/16—1/2 — CX04-0100 1039931 CX04-0120 1039940 1.50 5.44 0.69 2.00 1.16 0.56 0.94 1.88 2.50 0.88 2.25
9/16—5/8 1/2 CX04-0101 1039959 CX04-0121 1039968 2.50 6.31 0.81 2.63 1.41 0.69 1.12 2.38 3.00 1.00 2.50
3/4 9/16—5/8 CX04-0102 1039977 CX04-0122 1039986 4.25 7.56 1.06 3.00 1.66 0.81 1.25 2.75 3.56 1.25 3.00
7/8 11/16—3/4 CX04-0103 1039995 CX04-0123 1040000 7.25 8.75 1.25 3.63 1.88 0.94 1.50 3.25 4.00 1.50 3.50
1 13/16—7/8 CX04-0104 1040019 CX04-0124 1040028 10.50 9.88 1.38 4.13 2.30 1.13 1.75 3.75 4.44 1.75 4.00
1-1/8 15/16—1 CX04-0105 1040037 CX04-0125 1040046 14.25 11.00 1.50 4.50 2.56 1.25 2.00 4.13 5.00 2.00 4.50
1-1/4—1-3/8 1-1/16—1-1/8 CX04-0106 1040055 CX04-0126 1040064 19.75 12.12 1.63 5.30 2.81 1.50 2.25 4.75 5.50 2.25 5.00
1-1/2 1-3/16—1-1/4 CX04-0107 1040073 CX04-0127 1040082 29.20 13.94 1.94 5.33 3.19 1.63 2.75 5.25 6.00 2.50 6.00
1-5/8 1-5/16—1-3/8 CX04-0108 1040091 CX04-0128 1040108 36.00 15.13 2.13 5.75 3.25 1.75 3.00 5.50 6.50 2.75 6.50
1-3/4—1-7/8 1-7/16—1-5/8 CX04-0109 1040117 CX04-0129 1040126 57.25 17.25 2.19 6.75 3.75 2.00 3.13 6.38 7.50 3.00 7.56
2—2-1/8 1-11/16—1-3/4 CX04-0110 1040135 CX04-0130 1040144 79.00 19.50 2.44 7.63 4.38 2.25 3.75 7.38 8.50 3.25 8.56
2-1/4—2-3/8 1-13/16—1-7/8 CX04-0111 1040153 CX04-0131 1040162 105.00 21.13 2.63 8.50 5.00 2.50 4.00 8.25 9.00 3.63 9.50
2-1/2—2-5/8 1-15/16—2-1/8 CX04-0112 1041759 CX04-0132 1041768 140.00 23.50 3.12 9.50 5.50 2.88 4.50 9.25 9.75 4.00 10.62
2-3/4—2-7/8 2-3/16—2-7/16 CX04-0113 1041777 CX04-0133 1041786 220.00 25.38 3.12 10.75 6.25 3.12 4.88 10.19 11.00 4.88 11.25
3—3-1/8 2-1/2—2-5/8 CX04-0114 1041795 CX04-0134 1041802 276.00 27.00 3.25 11.50 6.75 3.38 5.25 11.50 12.00 5.25 11.75
3-1/4—3-3/8 2-3/4—2-7/8 CX04-0115 1041811 CX04-0135 1041820 313.00 29.25 4.00 12.25 7.25 3.62 5.75 12.25 13.00 5.75 12.25
3-1/2—3-5/8 3—3-1/8 CX04-0116 1041839 CX04-0136 1041848 400.00 31.00 4.00 13.00 7.75 3.88 6.50 13.00 14.00 6.25 13.00
3-3/4—4 — CX04-0117 1041857 CX04-0137 1041866 542.00 33.25 4.25 14.25 8.50 4.25 7.25 14.25 15.00 7.00 14.00

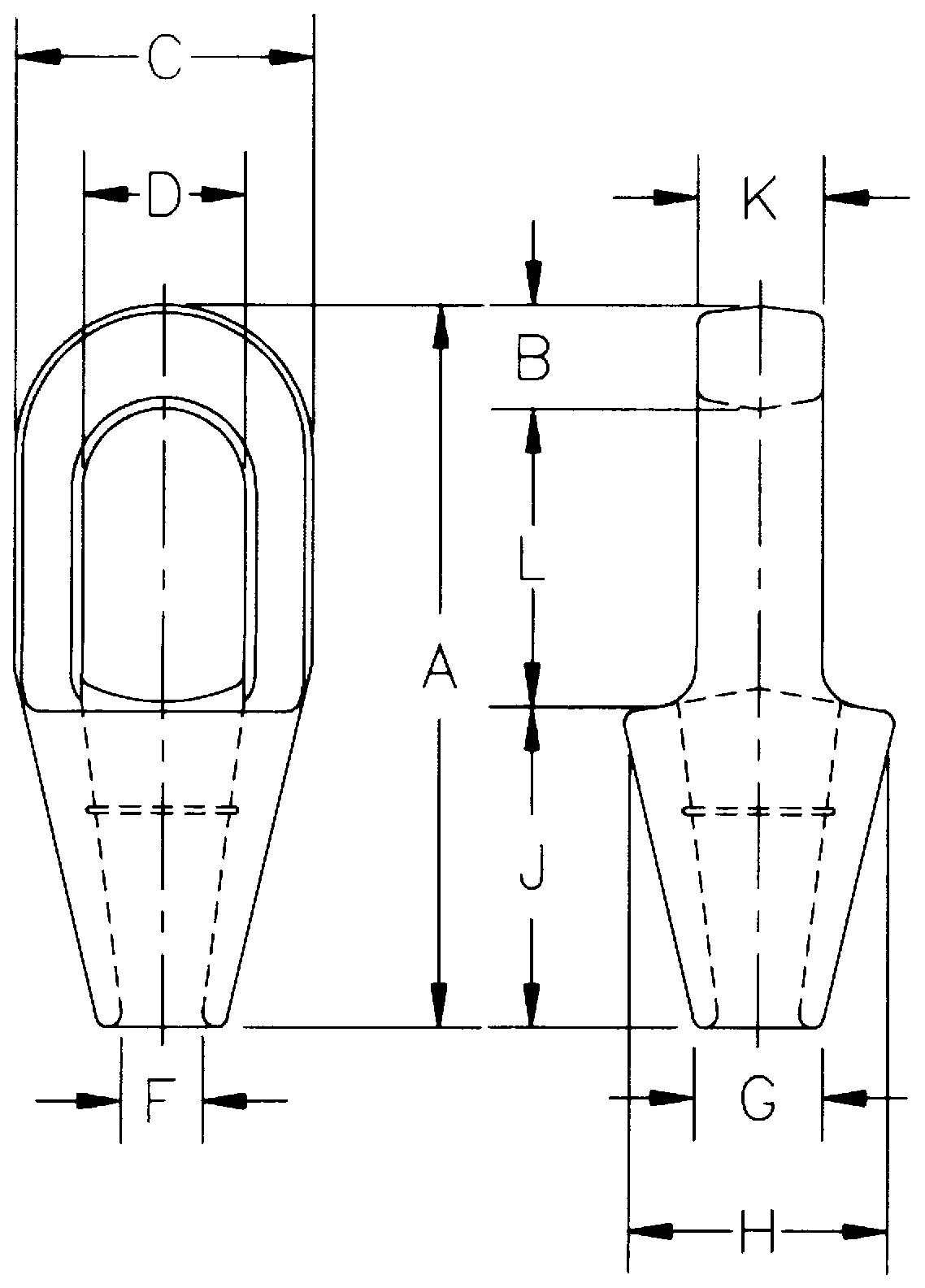

NOTE: Above drawing illustrates one groove used on sockets 1/4˝ thru 3/4.˝ Sizes 7/8˝ thru 1-1/2˝ use 2 grooves. Sizes 1-5/8˝ and larger use 3 grooves

Wire Rope Terminations Information

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
