| Rope Dia. (in.) | Structural Strand Dia. (in.) | CERTEX Cat. Ref. No. | Crosby Stock No. G-416 Galv | CERTEX Cat. Ref. No. | Crosby Stock No. S-416 S.C. | Weight Each (lbs.) | Dimensions (in.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | F | G | H | J | L | M | N | |||||||
| 1/4 | — | CX04-0058 | 1039619 | CX04-0078 | 1039628 | 1.10 | 4.56 | .75 | .69 | .38 | .69 | 1.56 | 2.25 | 1.56 | 1.31 | .31 |
| 5/16—3/8 | — | CX04-0059 | 1039637 | CX04-0079 | 1039646 | 1.30 | 4.84 | .81 | .81 | .50 | .81 | 1.69 | 2.25 | 1.75 | 1.50 | .44 |
| 7/16—1/2 | — | CX04-0060 | 1039655 | CX04-0080 | 1039664 | 2.25 | 5.56 | 1.00 | 1.00 | .56 | .94 | 1.88 | 2.50 | 2.00 | 1.88 | .50 |
| 9/16—5/8 | 1/2 | CX04-0061 | 1039673 | CX04-0081 | 1039682 | 3.60 | 6.75 | 1.25 | 1.19 | .69 | 1.13 | 2.25 | 3.00 | 2.50 | 2.25 | .56 |
| 3/4 | 9/16—5/8 | CX04-0062 | 1039691 | CX04-0082 | 1039708 | 5.83 | 7.94 | 1.50 | 1.38 | .81 | 1.25 | 2.62 | 3.50 | 3.00 | 2.62 | .62 |
| 7/8 | 11/16—3/4 | CX04-0063 | 1039717 | CX04-0083 | 1039726 | 9.65 | 9.25 | 1.75 | 1.63 | .94 | 1.50 | 3.25 | 4.00 | 3.50 | 3.13 | .80 |
| 1 | 13/16—7/8 | CX04-0064 | 1039735 | CX04-0084 | 1039744 | 15.50 | 10.56 | 2.00 | 2.00 | 1.13 | 1.75 | 3.75 | 4.50 | 4.00 | 3.75 | .88 |
| 1-1/8 | 15/16—1 | CX04-0065 | 1039753 | CX04-0085 | 1039762 | 21.50 | 11.81 | 2.25 | 2.25 | 1.25 | 2.00 | 4.12 | 5.00 | 4.62 | 4.12 | 1.00 |
| 1-1/4—1-3/8 | 1-1/16—1-1/8 | CX04-0066 | 1039771 | CX04-0086 | 1039780 | 31.00 | 13.19 | 2.50 | 2.50 | 1.50 | 2.25 | 4.75 | 5.50 | 5.00 | 4.75 | 1.13 |
| 1-1/2 | 1-13/16—1-1/4 | CX04-0067 | 1039799 | CX04-0087 | 1039806 | 47.25 | 15.12 | 3.00 | 2.75 | 1.63 | 2.75 | 5.25 | 6.00 | 6.00 | 5.38 | 1.19 |
| 1-5/8 | 1-5/16—1-3/8 | CX04-0068 | 1039815 | CX04-0088 | 1039824 | 55.00 | 16.25 | 3.00 | 3.00 | 1.75 | 3.00 | 5.50 | 6.50 | 6.50 | 5.75 | 1.31 |
| 1-3/4—1-7/8 | 1-7/16—1-5/8 | CX04-0069 | 1039833 | CX04-0089 | 1039842 | 82.00 | 18.25 | 3.50 | 3.50 | 2.00 | 3.13 | 6.38 | 7.50 | 7.00 | 6.50 | 1.56 |
| 2—2-1/8 | 1-11/16—1-3/4 | CX04-0070 | 1039851 | CX04-0090 | 1039860 | 129.00 | 21.50 | 4.00 | 3.75 | 2.25 | 3.75 | 7.38 | 8.50 | 9.00 | 7.00 | 1.81 |
| 2-1/4—2-3/8 | 1-13/16—1-7/8 | CX04-0071 | 1039879 | CX04-0091 | 1039888 | 167.00 | 23.50 | 4.50 | 4.25 | 2.50 | 4.00 | 8.25 | 9.00 | 10.00 | 7.75 | 2.13 |
| 2-1/2—2-5/8 | 1-15/16—2-1/8 | CX04-0072 | 1041633 | CX04-0092 | 1041642 | 252.00 | 25.50 | 5.00 | 4.75 | 2.88 | 4.50 | 9.25 | 9.75 | 10.75 | 8.50 | 2.38 |
| 2-3/4—2-7/8 | 2-3/16—2-7/16 | CX04-0073 | 1041651 | CX04-0093 | 1041660 | 315.00 | 27.25 | 5.25 | 5.00 | 3.12 | 4.88 | 10.50 | 11.00 | 11.00 | 9.00 | 2.88 |
| 3—3-1/8 | 2-1/2—2-5/8 | CX04-0074 | 1041679 | CX04-0094 | 1041688 | 380.00 | 29.00 | 5.75 | 5.25 | 3.38 | 5.25 | 11.12 | 12.00 | 11.25 | 9.50 | 3.00 |
| 3-1/4—3-3/8 | 2-3/4—2-7/8 | CX04-0075 | 1041697 | CX04-0095 | 1041704 | 434.00 | 30.88 | 6.25 | 5.50 | 3.62 | 5.75 | 11.88 | 13.00 | 11.75 | 10.00 | 3.12 |
| 3-1/2—3-5/8 | 3—3-1/8 | CX04-0076 | 1041713 | CX04-0096 | 1041722 | 563.00 | 33.25 | 6.75 | 6.00 | 3.88 | 6.50 | 12.38 | 14.00 | 12.50 | 10.75 | 3.25 |
| 3-3/4—4 | — | CX04-0077 | 1041731 | CX04-0097 | 1041740 | 783.00 | 36.25 | 7.50 | 7.00 | 4.25 | 7.25 | 13.62 | 15.00 | 13.50 | 12.50 | 3.50 |

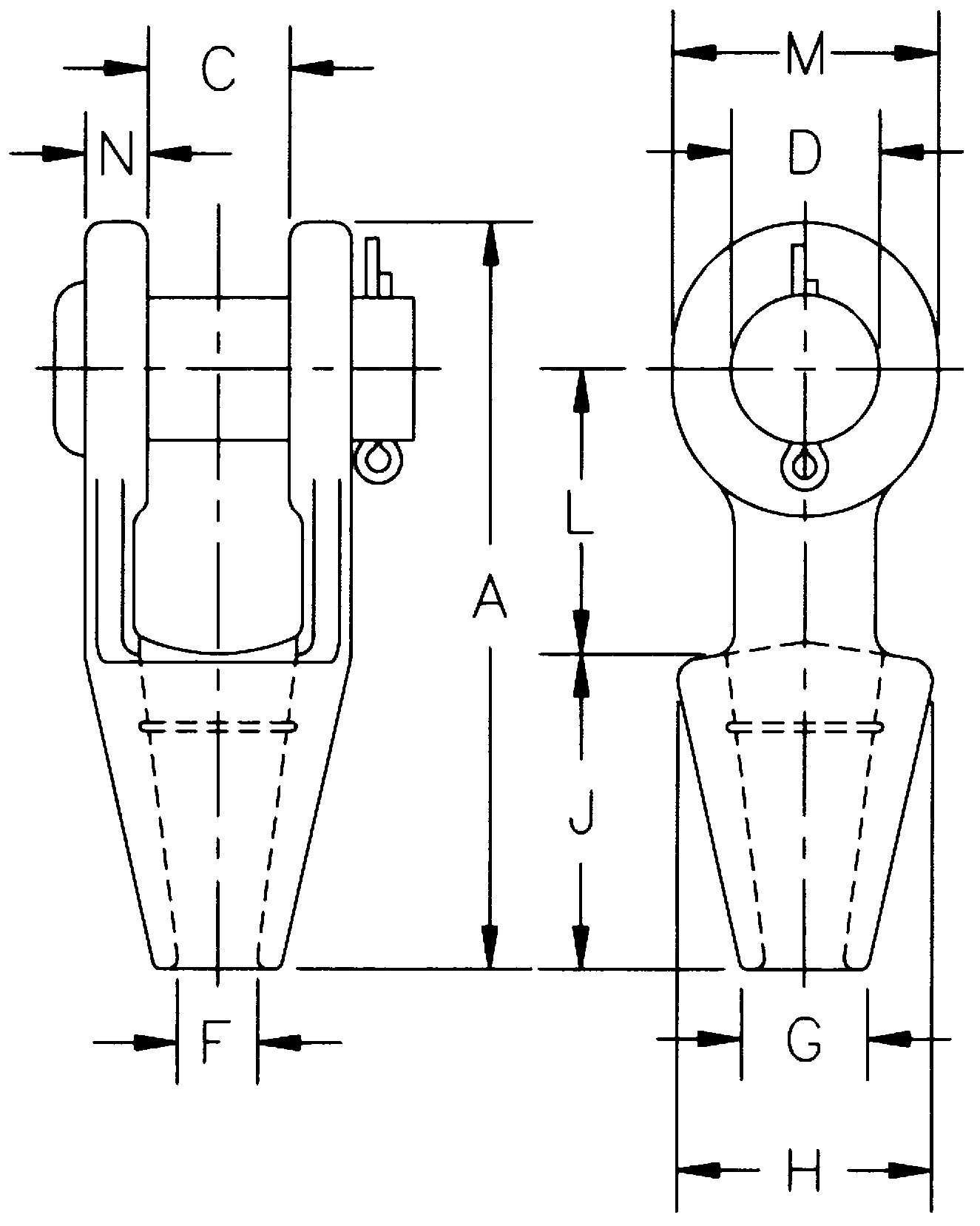

NOTE: Above drawing illustrates one groove used on sockets 1/4˝ thru 3/4.˝ Sizes 7/8˝ thru 1-1/2˝ use 2 grooves. Sizes 1-5/8˝ and larger use 3 grooves.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
