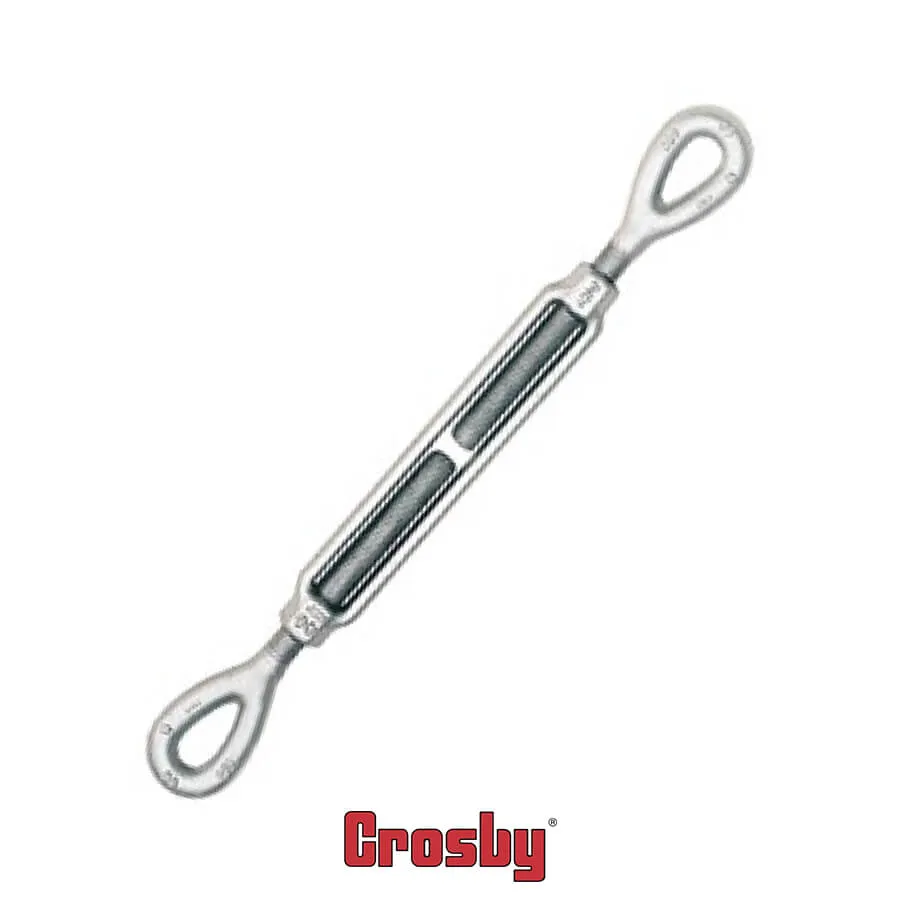

Crosby® HG-226 Eye & Eye Turnbuckles

Crosby® HG-226 Eye & Eye Turnbuckles
  • Hot Dip galvanized steel.
  • End fittings are Quenched and Tempered, bodies heat treated by normalizing.
  • Turnbuckle eyes are forged and elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 1/4” through 2 1/2”, a shackle one size smaller can be reeved through eye.
  • Forged jaw ends are fitted with bolts and nuts for 1/4” through 5/8”, and pins and cotters on 3/4” through 2 3/4” sizes.
  • Modified UNJ thread for improved fatigue properties.
  • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
  • Lock Nuts available for all sizes.

Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1—CLASS 8, except for those provisions required of the contractor.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

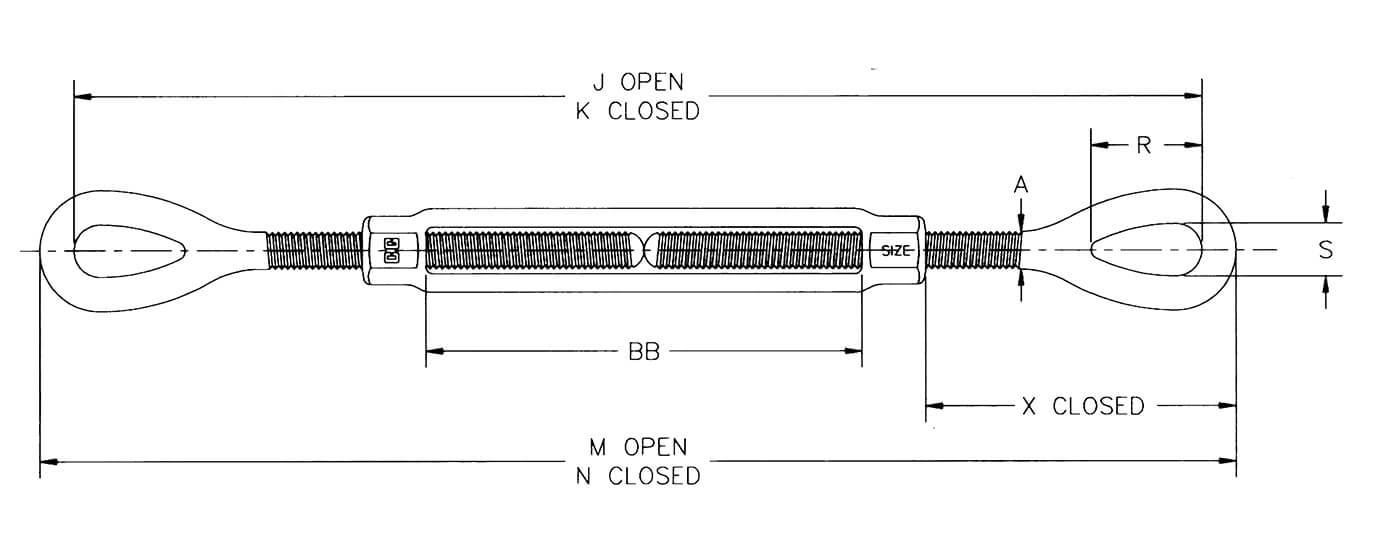

Thread Diameter & Take Up (in.) CERTEX Cat. Ref. No. Crosby Stock No Galv. Working Load Limit* (lbs.) Weight Each (lbs.) Dimensions (in.)
A J Open K Closed M Open N Closed R S X Closed BB
1/4 x 4 CX05-0473 1031252 500 .26 .25 11.80 7.80 12.25 8.25 .78 .34 1.75 4.00
5/16 x 4 1/2 CX05-0474 1031270 800 .45 .31 13.56 9.06 14.12 9.62 .94 .44 2.09 4.50
3/8 x 6 CX05-0475 1031298 1200 .76 .38 17.47 11.47 18.16 12.16 1.12 .53 2.52 6.00
1/2 x 6 CX05-0476 1031314 2200 1.54 .50 19.08 13.08 19.96 13.96 1.44 .72 3.23 6.00
1/2 x 9 CX05-0477 1031332 2200 1.13 .50 25.08 16.08 25.96 16.96 1.44 .72 3.23 9.00
1/2 x 12 CX05-0478 1031350 2200 2.14 .50 31.08 19.08 31.96 19.96 1.44 .72 3.23 12.00
5/8 x 6 CX05-0479 1031378 3500 3.28 .63 20.68 14.68 21.68 15.68 1.75 .88 3.90 6.00
5/8 x 9 CX05-0480 1031396 3500 2.83 .63 26.68 17.68 27.68 18.68 1.75 .88 3.90 9.00
5/8 x 12 CX05-0481 1031412 3500 3.42 .63 32.68 20.68 33.68 21.68 1.75 .88 3.90 12.00
3/4 x 6 CX05-0482 1031430 5200 3.79 .75 22.38 16.38 23.62 17.62 2.09 1.00 4.69 6.00
3/4 x 9 CX05-0483 1031458 5200 4.61 .75 28.38 19.38 29.62 20.62 2.09 1.00 4.69 9.00
3/4 x 12 CX05-0484 1031476 5200 5.48 .75 34.38 22.38 35.62 23.62 2.09 1.00 4.69 12.00
3/4 x 18 CX05-0485 1031494 5200 7.19 .75 46.38 28.38 47.62 29.62 2.09 1.00 4.69 18.00
7/8 x 12 CX05-0486 1031519 7200 7.22 .88 35.32 23.32 36.82 24.82 2.38 1.25 5.10 12.00
7/8 x 18 CX05-0487 1031537 7200 9.95 .88 47.32 29.32 48.82 30.82 2.38 1.25 5.10 18.00
1 x 6 CX05-0488 1031555 10000 9.04 1.00 25.97 19.97 27.72 21.72 3.00 1.44 6.36 6.00
1 x 12 CX05-0489 1031573 10000 11.50 1.00 37.97 25.97 39.97 27.72 3.00 1.44 6.36 12.00
1 x 18 CX05-0490 1031591 10000 14.00 1.00 49.97 31.97 51.72 33.72 3.00 1.44 6.36 18.00
1 x 24 CX05-0491 1031617 10000 17.25 1.00 61.97 37.97 63.72 39.72 3.00 1.44 6.36 24.00
1 1/4 x 12 CX05-0492 1031635 15200 19.00 1.25 40.31 28.31 42.56 30.56 3.56 1.81 7.72 12.00
1 1/4 x 18 CX05-0493 1031653 15200 23.00 1.25 52.31 34.31 54.56 36.56 3.56 1.81 7.72 18.00
1 1/4 x 24 CX05-0494 1031671 15200 27.00 1.25 64.31 40.31 66.56 42.56 3.56 1.81 7.72 24.00
1 1/2 x 12 CX05-0495 1031699 21400 27.00 1.50 42.50 30.50 45.00 33.00 4.06 2.12 8.62 12.00
1 1/2 x 18 CX05-0496 1031715 21400 31.00 1.50 54.50 36.50 57.00 39.00 4.06 2.12 8.62 18.00
1 1/2 x 24 CX05-0497 1031733 21400 37.50 1.50 66.50 42.50 69.00 45.00 4.06 2.12 8.62 24.00
1 3/4 x 18 CX05-0498 1031779 28000 52.50 1.75 57.38 39.38 60.38 42.38 4.62 2.38 10.00 18.00
1 3/4 x 24 CX05-0499 1031797 28000 58.00 1.75 69.38 45.38 72.38 48.38 4.62 2.38 10.00 24.00
2 x 24 CX05-0500 1031813 37000 85.25 2.00 75.69 51.69 79.19 55.19 5.75 2.69 13.09 24.00
2 1/2 x 24 CX05-0501 1031831 60000 144.25 2.50 78.62 54.62 82.62 58.62 6.50 3.12 13.78 24.00
2 3/4 x 24 CX05-0502 1031859 75000 194.00 2.75 81.00 57.00 85.50 61.50 7.00 3.25 15.22 24.00



* Proof Load is 2.5 times Working Load Limit. Ultimate load is 5 times Working Load Limit.
