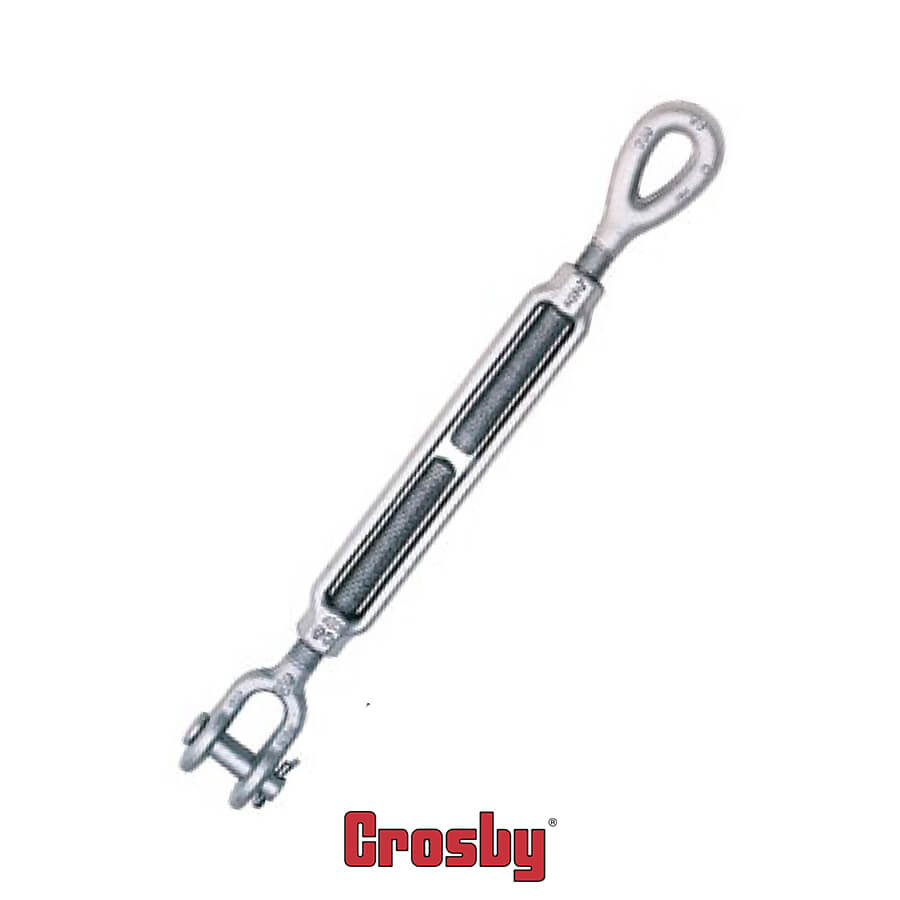

Crosby® HG-227 Jaw & Eye Turnbuckles

Crosby® HG-227 Jaw & Eye Turnbuckles
  • Hot Dip galvanized steel.
  • End fittings are Quenched and Tempered, bodies heat treated by normalizing.
  • Turnbuckle eyes are forged and elongated, by design, to maximize easy attachment in system and minimize stress in the eye. For turnbuckle sizes 1/4” through 2 1/2”, a shackle one size smaller can be reeved through eye.
  • Forged jaw ends are fitted with bolts and nuts for 1/4” through 5/8”, and pins and cotters on 3/4” through 2 3/4” sizes.
  • Modified UNJ thread for improved fatigue properties.
  • TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
  • Lock Nuts available for all sizes.

Meets the performance requirements of Federal Specifications FF-T-791b, Type 1, Form 1—CLASS 8, except for those provisions required of the contractor.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

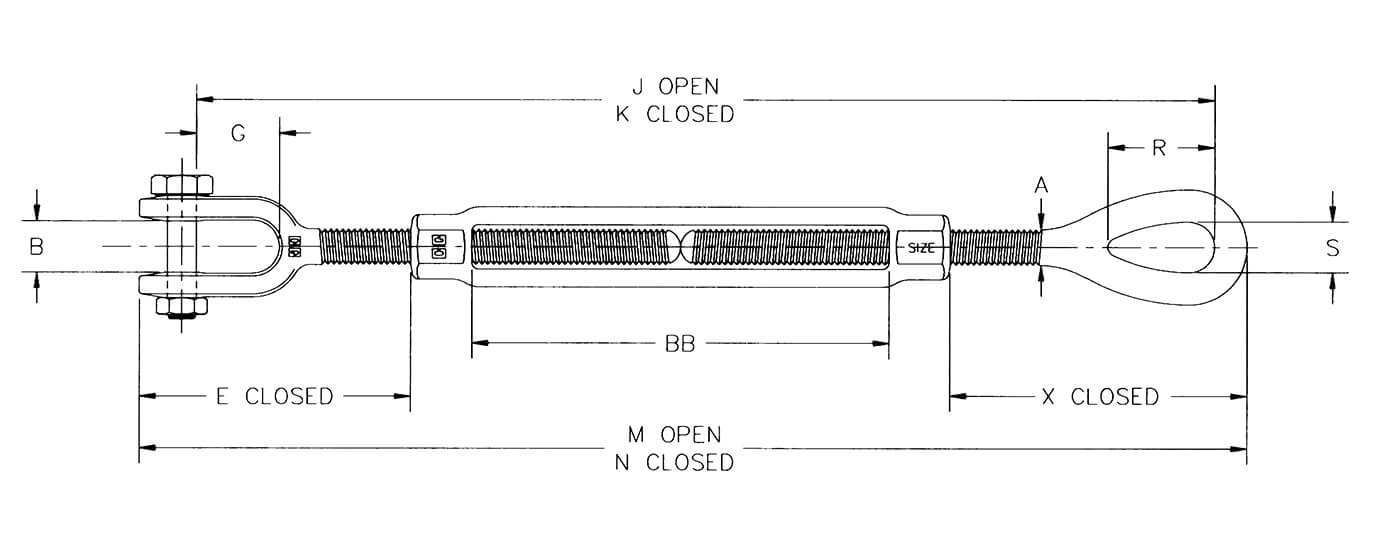

Thread Diameter& Take Up (in.) CERTEX Cat. Ref. No. Crosby Stock No. wGalv. Working Load Limit* (lbs.) Weight Each (lbs.) Dimensions (in.)
A B E Closed G J Open K Closed M Open N Closed R S X Closed BB
1/4 x 4 CX05-0503 1031877 500 .30 .25 .41 1.58 .62 11.35 7.35 12.07 8.07 .78 .34 1.75 4.00
5/16 x 4 1/2 CX05-0504 1031895 800 .50 .31 .47 1.98 .87 13.71 8.71 14.01 9.51 .94 .44 2.09 4.50
3/8 x 6 CX05-0505 1031911 1200 .80 .38 .50 2.12 .87 16.81 10.81 17.77 11.77 1.12 .53 2.52 6.00
1/2 x 6 CX05-0506 1031939 2200 1.51 .50 .63 2.75 1.06 18.29 12.29 19.48 13.48 1.44 .72 3.23 6.00
1/2 x 9 CX05-0507 1031957 2200 1.71 .50 .63 2.75 1.06 24.29 15.29 25.48 16.48 1.44 .72 3.23 9.00
1/2 x 12 CX05-0508 1031975 2200 2.08 .50 .63 2.75 1.06 30.29 18.29 31.48 19.48 1.44 .72 3.23 12.00
5/8 x 6 CX05-0509 1031993 3500 2.35 .63 .75 3.50 1.31 19.74 13.74 21.28 15.28 1.75 .88 3.90 6.00
5/8 x 9 CX05-0510 1032019 3500 3.17 .63 .75 3.50 1.31 25.74 16.74 27.28 18.28 1.75 .88 3.90 9.00
5/8 x 12 CX05-0511 1032037 3500 3.61 .63 .75 3.50 1.31 31.74 19.74 33.28 21.28 1.75 .88 3.90 12.00
3/4 x 6 CX05-0512 1032055 5200 4.00 .75 .94 4.18 1.50 21.19 15.19 23.11 17.11 2.09 1.00 4.69 6.00
3/4 x 9 CX05-0513 1032073 5200 4.75 .75 .94 4.18 1.50 27.19 18.19 29.11 20.11 2.09 1.00 4.69 9.00
3/4 x 12 CX05-0514 1032091 5200 5.93 .75 .94 4.18 1.50 33.19 21.19 35.11 23.11 2.09 1.00 4.69 12.00
3/4 x 18 C CX05-0515 1032117 5200 7.00 .75 .94 4.18 1.50 45.19 27.19 47.11 29.11 2.09 1.00 4.69 18.00
7/8 x 12 CX05-0516 1032135 7200 8.36 .88 1.13 4.85 1.75 34.34 22.34 36.57 24.57 2.38 1.25 5.10 12.00
7/8 x 18 CX05-0517 1032153 7200 9.75 .88 1.13 4.85 1.75 46.34 28.34 48.57 30.57 2.38 1.25 5.10 18.00
1 x 6 CX05-0518 1032171 10000 8.92 1.00 1.19 5.53 2.06 24.34 18.34 26.89 20.89 3.00 1.44 6.36 6.00
1 x 12 CX05-0519 1032199 10000 11.20 1.00 1.19 5.53 2.06 36.34 24.34 38.89 26.89 3.00 1.44 6.36 12.00
1 x 18 CX05-0520 1032215 10000 13.30 1.00 1.19 5.53 2.06 48.34 30.34 50.89 32.89 3.00 1.44 6.36 18.00
1 x 24 CX05-0521 1032233 10000 17.00 1.00 1.19 5.53 2.06 60.34 36.34 62.89 38.89 3.00 1.44 6.36 24.00
1 1/4 x 12 CX05-0522 1032251 15200 19.42 1.25 1.75 7.21 2.81 38.82 26.82 42.05 30.05 3.56 1.81 7.72 12.00
1 1/4 x 18 CX05-0523 1032279 15200 24.18 1.25 1.75 7.21 2.81 50.82 32.82 54.05 36.05 3.56 1.81 7.72 18.00
1 1/4 x 24 CX05-0524 1032297 15200 28.50 1.25 1.75 7.21 2.81 62.82 38.82 66.05 42.05 3.56 1.81 7.72 24.00
1 1/2 x 12 CX05-0525 1032313 21400 28.99 1.50 2.06 7.88 2.81 40.50 28.50 44.25 32.25 4.06 2.12 8.62 12.00
1 1/2 x 18 CX05-0526 1032331 21400 35.00 1.50 2.06 7.88 2.81 52.50 34.50 56.25 38.25 4.06 2.12 8.62 18.00
1 1/2 x 24 CX05-0527 1032359 21400 39.18 1.50 2.06 7.88 2.81 64.50 40.50 68.25 44.25 4.06 2.12 8.62 24.00
1 3/4 x 18 CX05-0528 1032395 28000 53.75 1.75 2.38 9.40 3.38 55.38 37.38 59.78 41.78 4.62 2.38 10.00 18.00
1 3/4 x 24 CX05-0529 1032411 28000 60.68 1.75 2.38 9.40 3.38 67.38 43.38 71.78 47.78 4.62 2.38 10.00 24.00
2 x 24 CX05-0530 1032439 37000 89.00 2.00 2.50 11.86 3.69 72.62 48.62 77.95 53.95 5.75 2.69 13.09 24.00
2 1/2 x 24 CX05-0531 1032457 60000 150.00 2.50 2.88 13.56 4.44 75.80 51.80 82.40 58.40 6.50 3.12 13.78 24.00
2 3/4 x 24 CX05-0532 1032475 75000 183.00 2.75 3.50 15.22 4.19 77.88 53.88 85.50 61.50 7.00 3.25 15.22 24.00



* Proof Load is 2.5 times the Working Load Limit. Ultimate Load is 5 times Working Load Limit.
