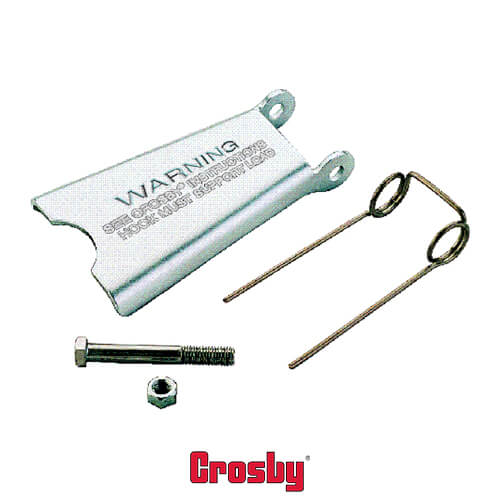

• Stainless steel construction with cadmium plated steel nuts.
• Shipped packaged and unassembled.
• Instructions included for easy field assembly
See full Warnings & Application Instructions for the Crosby® Positive Locking Flapper Latch.

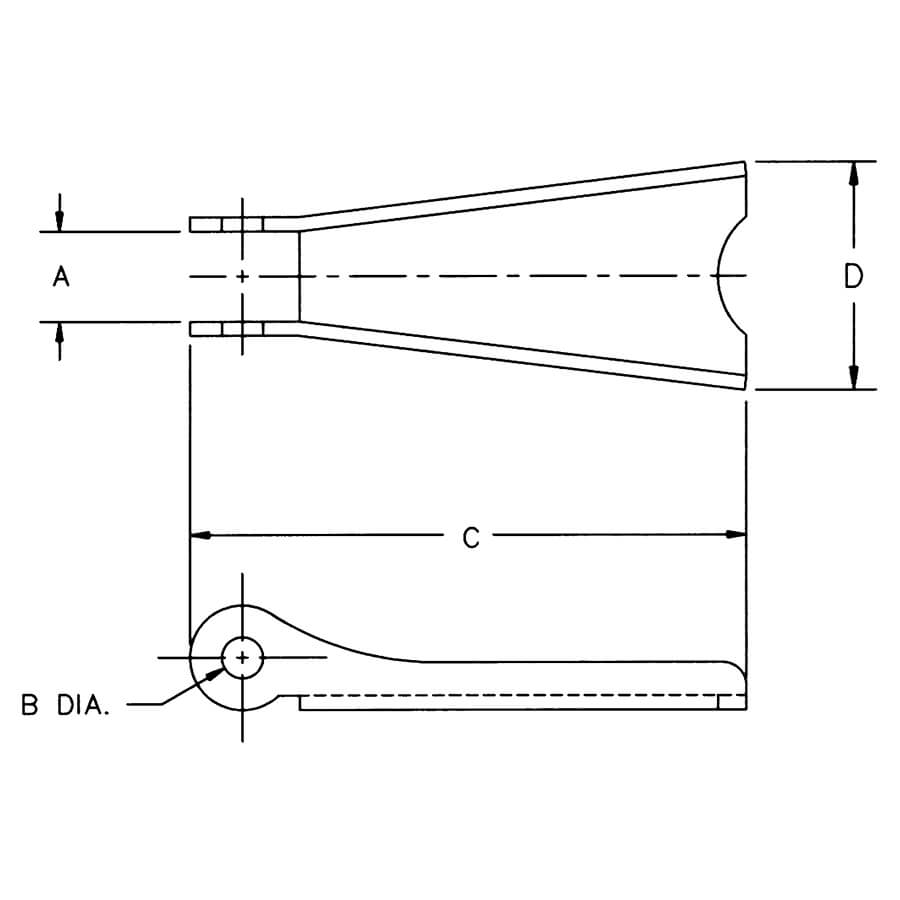

| Hook Size (tons) | CERTEX Cat. Ref. No. | Crosby SS-4055 Stock No. | Weight Each (lbs.) | Dimensions (in.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | Bronze | A | B | C | D | |||
| 3/4 | 1 | .5 | CX05-0165 | 1090027 | .02 | .38 | .16 | 1.44 | .59 |
| 1 | 1 1/2 | .6 | CX05-0166 | 1090045 | .02 | .38 | .16 | 1.60 | .59 |
| 1 1/2 – 2 | 2 – 3 | 1.0 – 1.4 | CX05-0167 | 1090063 | .03 | .47 | .19 | 1.84 | .82 |
| 3 | 4 1/2 | 2.0 | CX05-0168 | 1090081 | .06 | .56 | .17 | 2.41 | 1.00 |
| 5 | 7 | 3.5 | CX05-0169 | 1090107 | .11 | .58 | .20 | 2.97 | 1.21 |
| 7 1/2 – 10 | 11 – 15 | 5.0 – 6.5 | CX05-0170 | 1090125 | .17 | .59 | .27 | 3.66 | 1.50 |
| 15 | 22 | 10.0 | CX05-0171 | 1090143 | .39 | .83 | .39 | 4.94 | 1.90 |
| 20 | 30 | — | CX05-0172 | 1090161 | .63 | .94 | .52 | 5.88 | 2.56 |
| 25 – 30 | 37 – 45 | — | CX05-0173 | 1090189 | 1.12 | 2.19 | .39 | 6.50 | 3.84 |
| 40 | 60 | — | CX05-0174 | 1090205 | 1.77 | 3.31 | .52 | 7.88 | 4.12 |
1. Specify latch kit stock number.
2. Specify capacity of hook to which latch will be assembled.
3. Specify hook material (carbon or alloy).
