• Heavy duty latch with easy operating features.
• Hot Dip galvanized.
• Flapper lever indicates locked or unlocked position.
• Assembly instructions included with each latch.
• Meets the intent of OSHA Rule 1926.550 (g) (when secured with the bolt, nut and pin) for lifting personnel.

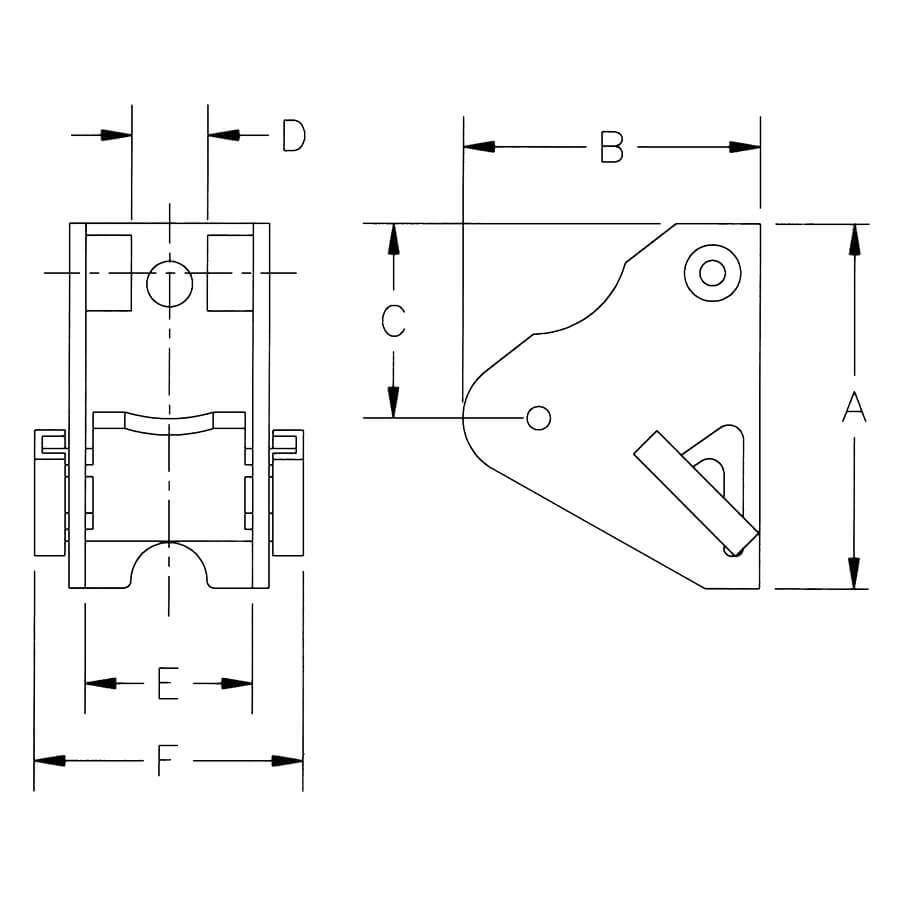

| Hook Size (Tons) | CERTEX Cat. Ref. No. | Crosby PL Latch Kit Stock No. | Weight Each (lbs.) | Dimensions (in.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | A | B | C | D | E | F | |||
| 3 | 4 1/2 | CX05-0152 | 1093711 | .54 | 2.57 | 2.34 | 1.94 | .56 | 1.13 | 2.00 |
| 5 | 7 | CX05-0153 | 1093712 | .66 | 3.00 | 2.34 | 2.00 | .63 | 1.38 | 2.22 |
| 7 1/2 | 11 | CX05-0154 | 1093713 | 1.00 | 3.63 | 2.77 | 2.38 | .63 | 1.63 | 2.38 |
| 10 | 15 | CX05-0155 | 1093714 | 1.25 | 4.00 | 3.22 | 2.69 | .63 | 1.88 | 3.38 |
| 15 | 22 | CX05-0156 | 1093715 | 2.96 | 5.31 | 4.00 | 2.91 | .84 | 2.38 | 3.44 |
| 20 | 30 | CX05-0157 | 1093716 | 4.05 | 6.00 | 4.44 | 3.19 | 1.06 | 2.88 | 4.25 |
| 25 | 37 | CX05-0158 | 1093717 | 8.63 | 7.00 | 6.63 | 4.06 | 2.24 | 4.50 | 6.12 |
| 30 | 45 | CX05-0159 | 1093718 | 10.00 | 6.75 | 7.00 | 4.03 | 2.24 | 4.75 | 6.38 |
| 40 | 60 | CX05-0160 | 1093719 | 14.30 | 8.00 | 7.66 | 4.38 | 3.46 | 5.50 | 7.25 |
| 50 | 75 | CX05-0161 | 1093720 | 27.00 | 9.88 | 8.19 | 5.13 | 3.38 | 6.50 | 8.88 |
| — | 100 – 150 | CX05-0162 | 1093721 | 33.25 | 10.88 | 11.06 | 6.38 | 3.38 | 7.50 | 10.00 |
| — | 200 | CX05-0163 | 1093723 | 45.00 | 11.88 | 11.19 | 6.38 | 3.38 | 8.75 | 11.25 |
| — | 300 | CX05-0164 | 1093724 | 55.00 | 12.50 | 12.19 | 8.00 | 3.38 | 9.75 | 13.00 |
Patented in USA & Canada
1. Specify PL latch kit stock number from chart below.
2. Specify capacity of hook to which latch will be assembled.
3. Specify hook material (carbon or alloy).
* NOTE: The PL latch will not work on 320N Hooks.
See full Warnings & Application Instructions for the Crosby® Positive Locking Flapper Latch.
