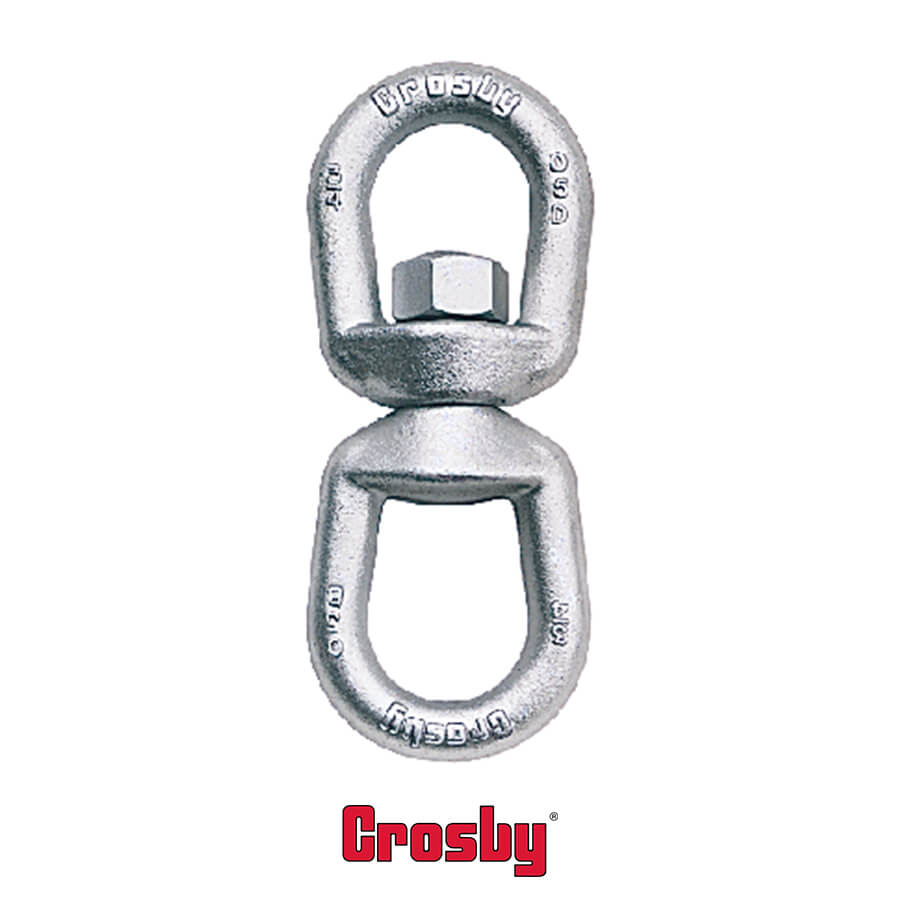

Crosby® Regular Swivels

Crosby® Regular Swivels

• Hot Dip Galvanized
• Quenched & Tempered
• Meets the performance requirements of Federal Specifications RR-C-271D, Type VII, Class 1 except for those provisions required of the contractor.




EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

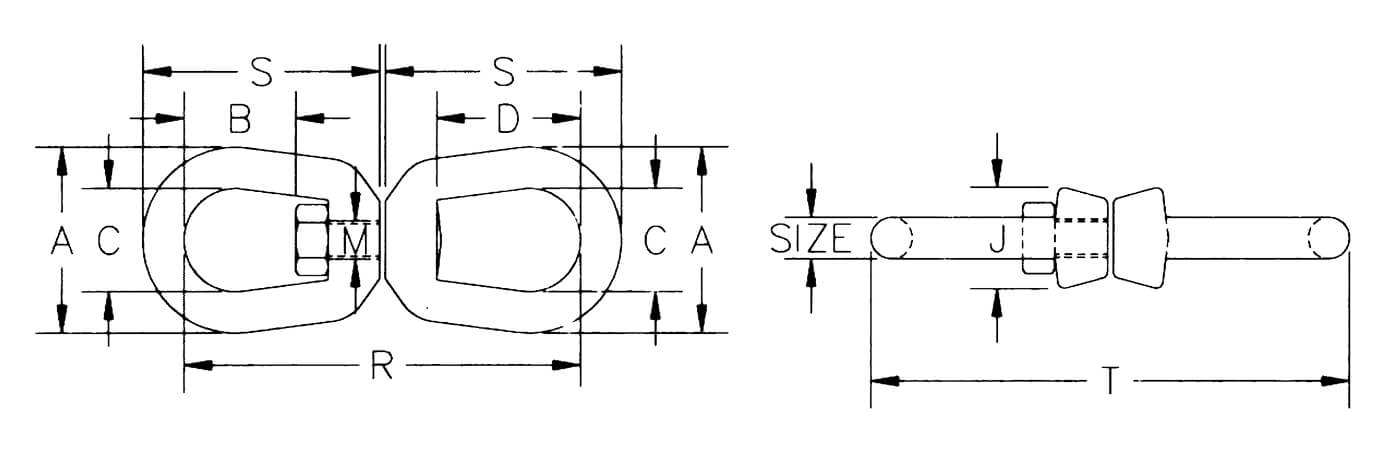

Size (in.) CERTEX Cat. Ref. No. Crosby G-402 Stock No. Galv Working Load Limit * (lbs.) Weight Each (lbs.) Dimensions (in.)
A B C D J M R S T
1/4 CX05-0305 1016019 850 0.21 1.25 0.69 0.75 1.06 0.69 0.31 2.94 1.69 3.44
5/16 CX05-0306 1016037 1250 0.39 1.63 0.81 1.00 1.25 0.81 0.38 3.56 2.06 4.19
3/8 CX05-0307 1016055 2250 0.71 2.00 0.94 1.25 1.50 1.00 0.50 4.31 2.50 5.06
1/2 CX05-0308 1016073 3600 1.32 2.50 1.31 1.50 2.00 1.31 0.63 5.44 3.19 6.44
5/8 CX05-0309 1016091 5200 2.49 3.00 1.56 1.75 2.38 1.50 0.75 6.56 3.88 7.81
3/4 CX05-0310 1016117 7200 4.02 3.50 1.75 2.00 2.63 1.88 0.88 7.19 4.31 8.69
7/8 CX05-0311 1016135 10000 6.25 4.00 2.06 2.25 3.06 2.13 1.00 8.38 5.00 10.13
1 CX05-0312 1016153 12500 8.95 4.50 2.31 2.50 3.50 2.38 1.13 9.63 5.75 11.63
1 1/4 CX05-0313 1016199 18000 16.37 5.63 2.69 3.13 3.69 3.00 1.38 11.13 6.75 13.36
1 1/2 CX05-0314 1016215 45200 45.79 7.00 4.19 4.00 4.19 4.00 2.25 17.13 10.00 20.13

* Ultimate Load is 5 times the Working Load Limit
