S-4320
Latch Kits shipped unassembled and individually packaged with instructions.
Replacement Latch Kit for New 320N Hooks
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• Can be made into a “Positive Locking” Hook when proper cotter pin is utilized.
IMPORTANT: The new S-4320 Latch Kit will not fit the old style 320 and 319 hooks.

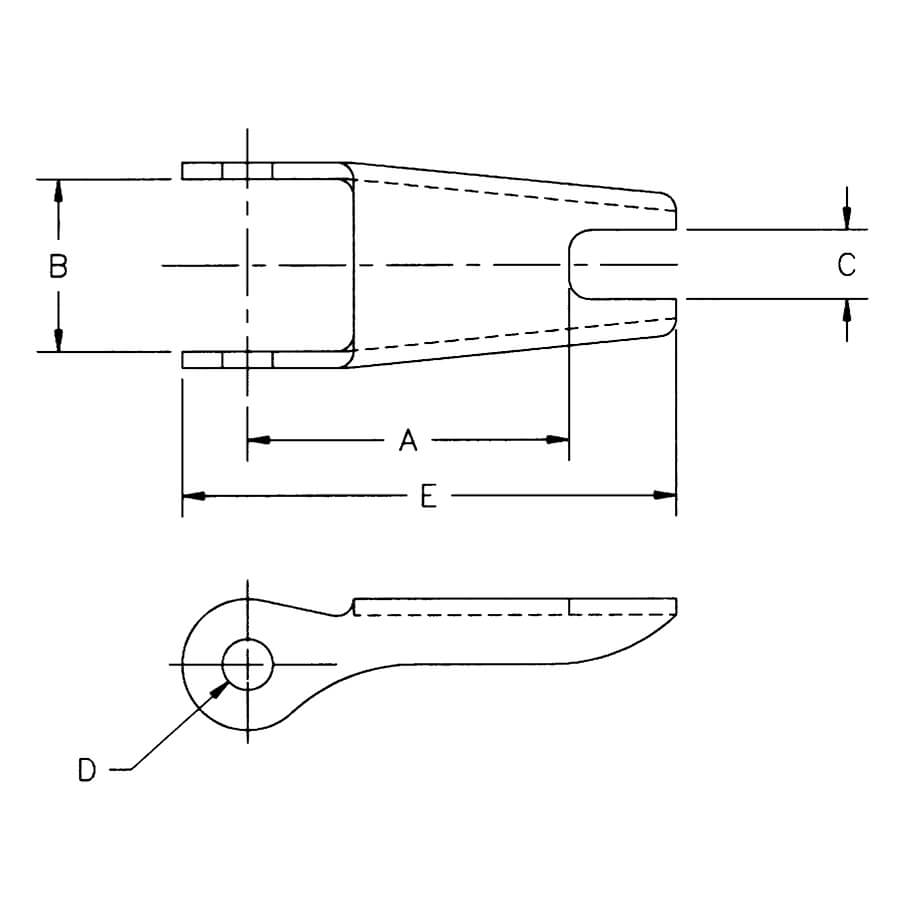

| Hook Size (Tons) | CERTEX Cat. Ref. No. | Crosby S-4320 Stock No. | Weight Each (lbs.) | Dimensions (in.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Carbon | Alloy | A | B | C | D | E | |||
| 3/4 | 1 | CX05-0143 | 1096325 | .03 | .94 | .50 | .20 | .15 | 1.44 |
| 1 | 1 1/2 | CX05-0144 | 1096374 | .04 | 1.00 | .54 | .22 | .17 | 1.56 |
| 1 1/2 | 2 | CX05-0145 | 1096421 | .04 | 1.09 | .63 | .23 | .17 | 1.66 |
| 2 | 3 | CX05-0146 | 1096468 | .06 | 1.21 | .66 | .28 | .17 | 1.91 |
| 3 | 5 | CX05-0147 | 1096515 | .10 | 1.53 | .83 | .35 | .20 | 2.31 |
| 5 | 7 | CX05-0148 | 1096562 | .15 | 1.88 | 1.04 | .44 | .20 | 2.88 |
| 7 1/2 | 11 | CX05-0149 | 1096609 | .28 | 2.38 | 1.25 | .53 | .27 | 3.44 |
| 10 | 15 | CX05-0150 | 1096657 | .33 | 2.62 | 1.35 | .59 | .27 | 3.81 |
| 15 | 22 | CX05-0151 | 1096704 | .84 | 3.44 | 1.66 | .66 | .39 | 5.18 |
See full Warnings & Application Instructions for the Crosby® S-4320 Hook Latch Kit.
