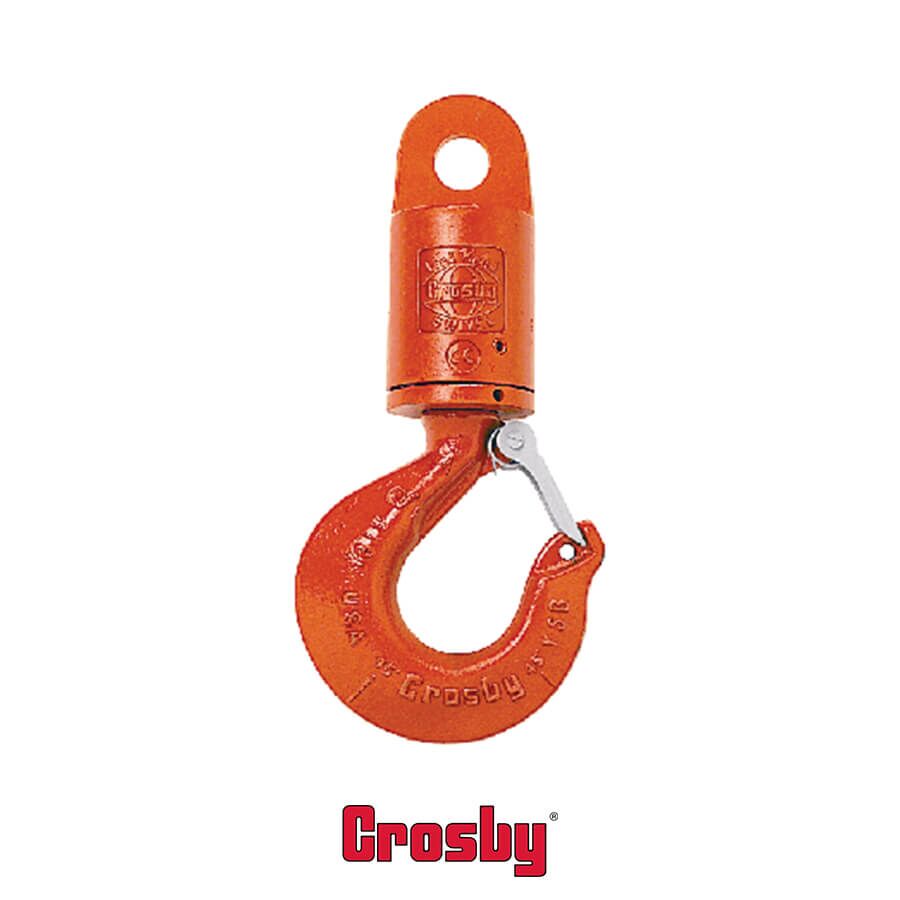

• Designed to swivel under load.
• All swivels individually proof tested with certification.
• All hooks furnished with latches assembled.
• All jaws complete with bolts, nuts and cotter pins.
• Pressure lube fitting provided.
• NOT TO BE USED ON DEMOLITION (WRECKING) BALLS.
• Other types and capacities up to 600 tons, available to meet your requirements.
| Swivel Number (type) | CERTEX Cat. Ref. No. | Crosby Stock No. S.C. | Working Load Limit* (metric tons) | Wire Rope Size (in.) | Weight Each (lbs.) |
|---|---|---|---|---|---|
| 3-S-6 | CX05-0256 | 297066 | 3 | 1/2 | 9.32 |
| 5-S-6 | CX05-0262 | 297262 | 5 | 5/8 | 14.24 |
| 8 1/2-S-6 | CX05-0268 | 297468 | 8 1/2 | 3/4 | 32.00 |
| 10-S-6 | CX05-0274 | 297663 | 10 | 7/8 | 45.50 |
| 15-S-6 | CX05-0280 | 297869 | 15 | 1 | 63.00 |
| 25-S-6 | CX05-0286 | 298163 | 25 | — | 135.00 |
| 35-S-6 | CX05-0292 | 298261 | 35 | — | 215.00 |
| 45-S-6 | CX05-0298 | 298369 | 45 | — | 270.00 |

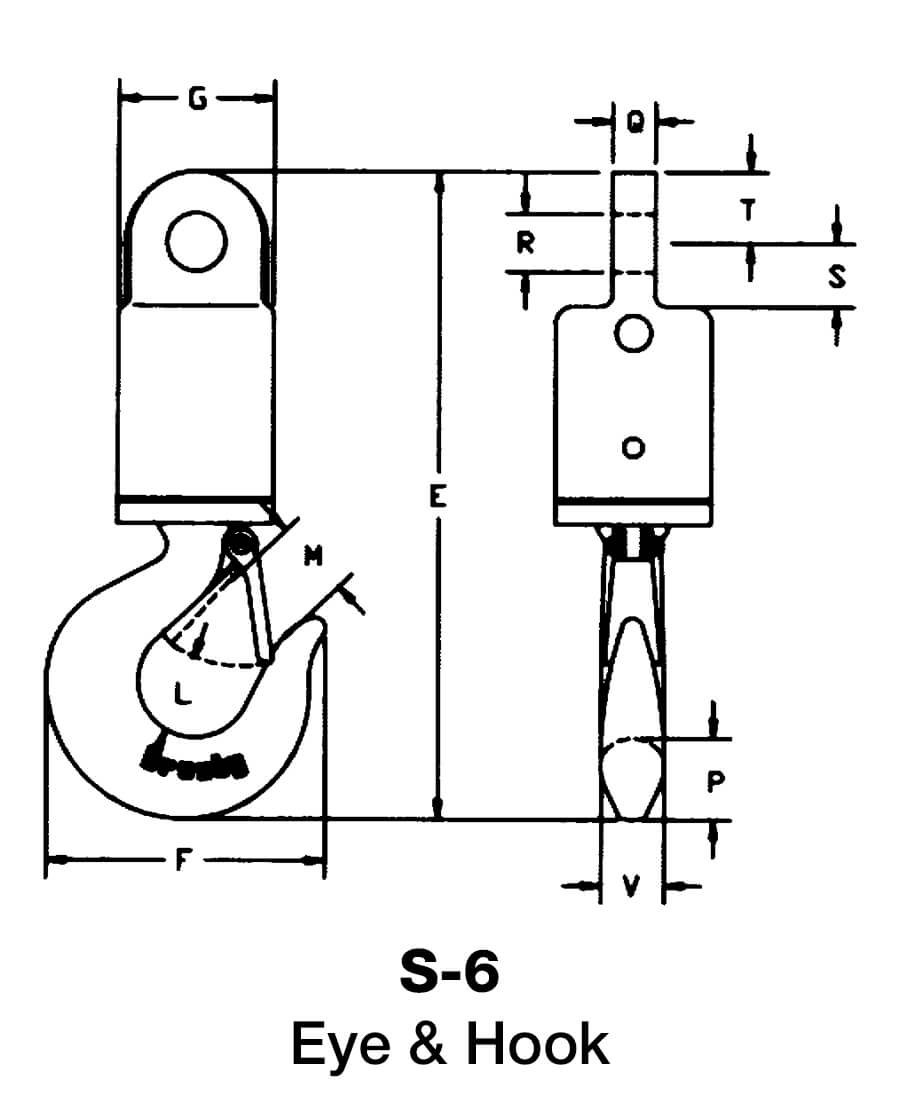

| Working Load Limit* (Metric Tons) | Dimensions (in.) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | L | M | N | P | Q | R | S | T | V | O | ||
| 3 | 11.38 | 9.28 | 9.34 | 9.41 | 11.44 | 4.94 | 2.75 | .75 | .88 | 1.62 | 1.38 | 1.34 | 1.31 | 1.44 | .75 | 1.03 | 1.12 | 1.25 | 1.12 | 1.00 | |
| 5 | 13.31 | 10.31 | 10.06 | 9.81 | 13.06 | 6.50 | 3.00 | .88 | 1.00 | 2.25 | 1.78 | 1.69 | 1.62 | 1.81 | 1.00 | 1.28 | 1.25 | 1.25 | 1.38 | 1.12 | |
| 8 1/2 | 16.44 | 12.62 | 12.25 | 11.88 | 16.06 | 7.56 | 4.00 | 1.00 | 1.56 | 2.81 | 2.12 | 2.06 | 2.12 | 2.25 | 1.25 | 1.41 | 1.62 | 1.50 | 1.62 | 1.38 | |
| 10 | 19.72 | 16.75 | 16.12 | 15.50 | 19.09 | 8.69 | 4.50 | 1.50 | 1.75 | 3.38 | 2.56 | 2.25 | 3.50 | 2.59 | 1.69 | 1.69 | 2.75 | 1.88 | 1.94 | 1.75 | |
| 15 | 22.00 | 17.12 | 16.75 | 16.38 | 21.62 | 11.00 | 5.00 | 1.50 | 1.75 | 3.38 | 2.88 | 3.00 | 3.50 | 3.00 | 1.94 | 2.03 | 2.75 | 2.12 | 2.38 | 1.75 | |
| 25 | 26.78 | 20.75 | 21.50 | 22.25 | 27.53 | 13.62 | 6.00 | 2.00 | 2.00 | 4.62 | 3.44 | 3.62 | 3.69 | 3.66 | 2.25 | 2.31 | 3.88 | 2.38 | 3.00 | 2.38 | |
| 35 | 29.94 | 20.75 | 21.50 | 22.25 | 30.69 | 14.06 | 6.50 | 2.00 | 2.00 | 4.62 | 3.88 | 3.75 | 3.69 | 4.56 | 2.25 | 2.31 | 3.88 | 2.38 | 3.19 | 2.38 | |
| 45 | 35.06 | 25.25 | 25.88 | 26.50 | 35.69 | 15.44 | 7.00 | 2.25 | 2.50 | 5.00 | 4.75 | 4.25 | 4.00 | 5.06 | 2.50 | 2.53 | 4.00 | 3.00 | 3.25 | 3.00 | |
* Individually Proof tested to 2 times the Working Load Limit. Ultimate load is 5 times the Working Load Limit.
IMPORTANT:
Crosby Swivels should only be used with the recommended wire rope.
Contact the wire rope manufacturer for the proper wire rope to be used with Crosby Swivels.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
