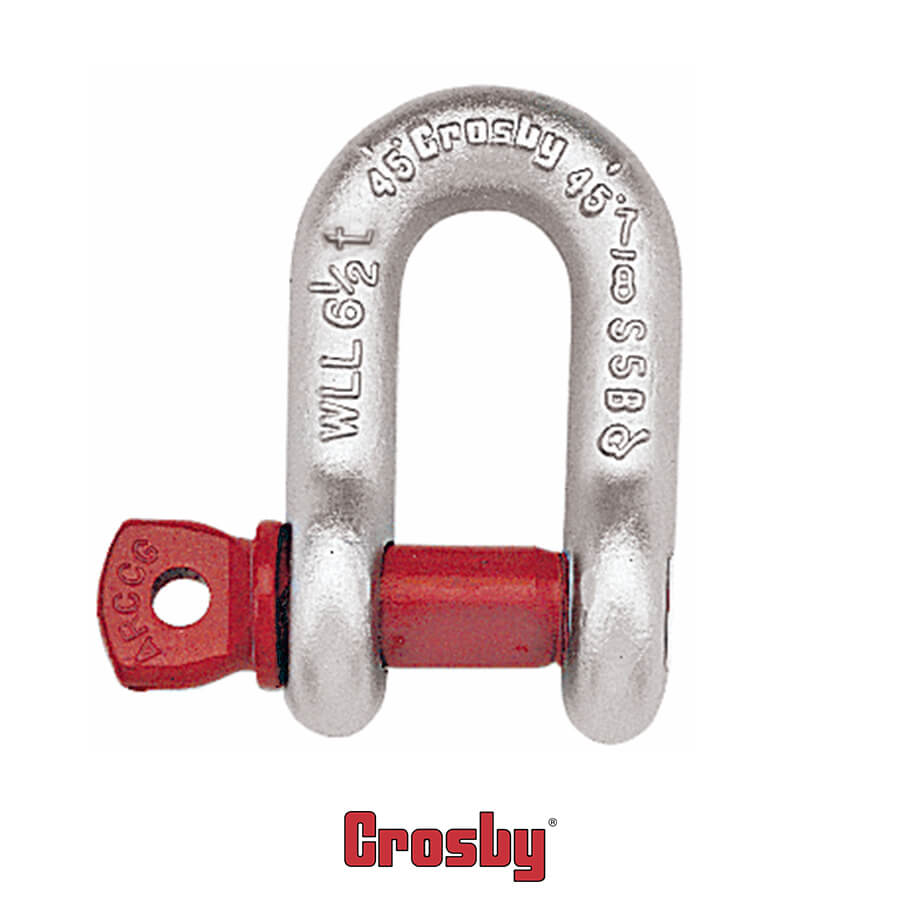

Crosby® Screw Pin Chain Shackles G-210 / S-210

Crosby® Screw Pin Chain Shackles G-210 / S-210

G-210 / S-210

  • Forged, Quenched & Tempered, with alloy pins
  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Hot-dip galvanized (G) or self colored (S).
  • Sizes 3/8 inch and below are mechanically galvanized.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.

EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

G-210 / S-210 Screw Pin Chain Shackles

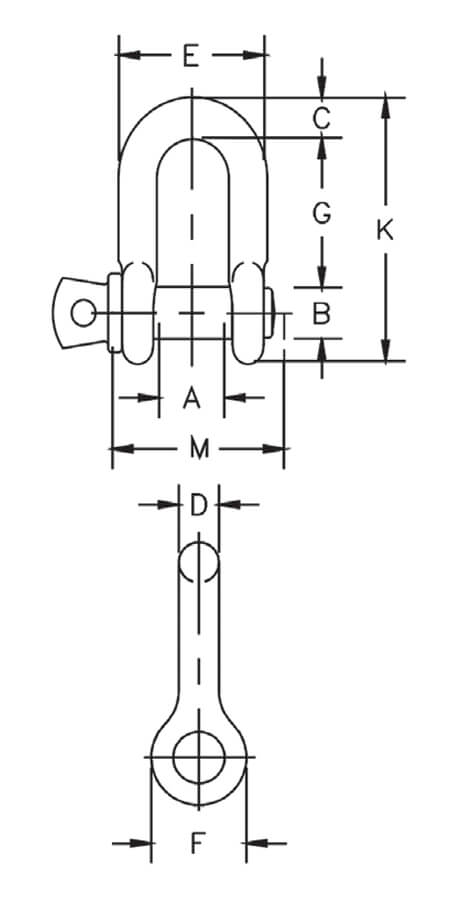

Nominal Size (in) Working Load Limit (t) Stock No. Weight Each (lb) Dimensions (in) Tolerance (+ / – in)
G-210 S-210 A B C D E F G K L M G A
1/4 0.5 1019150 1019169 .11 .47 .31 .25 .25 .97 .62 .97 1.59 .19 1.43 .06 .06
5/16 0.75 1019178 1019187 .17 .53 .38 .31 .31 1.15 .75 1.07 1.91 .22 1.71 .06 .06
3/8 1 1019196 1019203 .28 .66 .44 .38 .38 1.42 .92 1.28 2.31 .25 2.02 .13 .06
7/16 1.5 1019212 1019221 .43 .75 .50 .44 .44 1.63 1.06 1.48 2.67 .31 2.37 .13 .06
1/2 2 1019230 1019249 .59 .81 .63 .50 .50 1.81 1.18 1.66 3.03 .38 2.69 .13 .06
5/8 3.25 1019258 1019267 1.25 1.06 .75 .63 .63 2.32 1.50 2.04 3.76 .44 3.34 .13 .06
3/4 4.75 1019276 1019285 2.63 1.25 .88 .81 .75 2.75 1.81 2.40 4.53 .50 3.97 .25 .06
7/8 6.5 1019294 1019301 3.16 1.44 1.00 .97 .88 3.20 2.10 2.86 5.33 .50 4.50 .25 .06
1 8.5 1019310 1019329 4.75 1.69 1.13 1.00 1.00 3.69 2.38 3.24 5.94 .56 5.13 .25 .06
1-1/8 9.5 1019338 1019347 6.75 1.81 1.25 1.25 1.13 4.07 2.69 3.61 6.78 .63 5.71 .25 .06
1-1/4 12 1019356 1019365 9.06 2.03 1.38 1.38 1.25 4.53 3.00 3.97 7.50 .69 6.25 .25 .13
1-3/8 13.5 1019374 1019383 11.63 2.25 1.50 1.50 1.38 5.01 3.31 4.43 8.28 .75 6.53 .25 .13
1-1/2 17 1019392 1019409 15.95 2.38 1.63 1.62 1.50 5.38 3.62 4.87 9.05 .81 7.33 .25 .13
1-3/4 25 1019418 1019427 26.75 2.88 2.00 2.12 1.75 6.38 4.19 5.78 10.97 1.00 9.06 .25 .13
2 35 1019436 1019445 42.31 3.25 2.25 2.36 2.10 7.25 5.00 6.77 12.74 1.13 10.35 .25 .13
2-1/2 55 1019454 1019463 71.75 4.12 2.75 2.63 2.63 9.38 5.68 8.07 14.85 1.38 13.00 .25 .25



6:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit. For Working Load Limit reduction due to side loading applications, see Warnings & Applications.

G-210 / S-210

  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certifications. Proof testing and certification available when requested at the time of order, charges will apply.
  • Approved for use at -40° F (-40° C) to 400° F (204° C).
  • All 209 and 210 shackles can meet charpy requirements of 31 ft-lb (42 Joules) avg. at -4° F (-20° C) upon special request.
  • Meets or exceeds all requirements of ASME B30.26.
  • Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
  • G-210 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271G, Type IVB, Grade A, Class 2, except for those provisions required of the contractor
  • Look for the Red Pin®… the mark of genuine Crosby quality.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
