G-277
| Shank Diameter & Length (in.) | CERTEX Cat. Ref. No. | Crosby G-277 Stock No. Galv | Working Load Limit* (lbs.) | Weight Per 100 (lbs.) | Dimensions (in.) | ||||||||

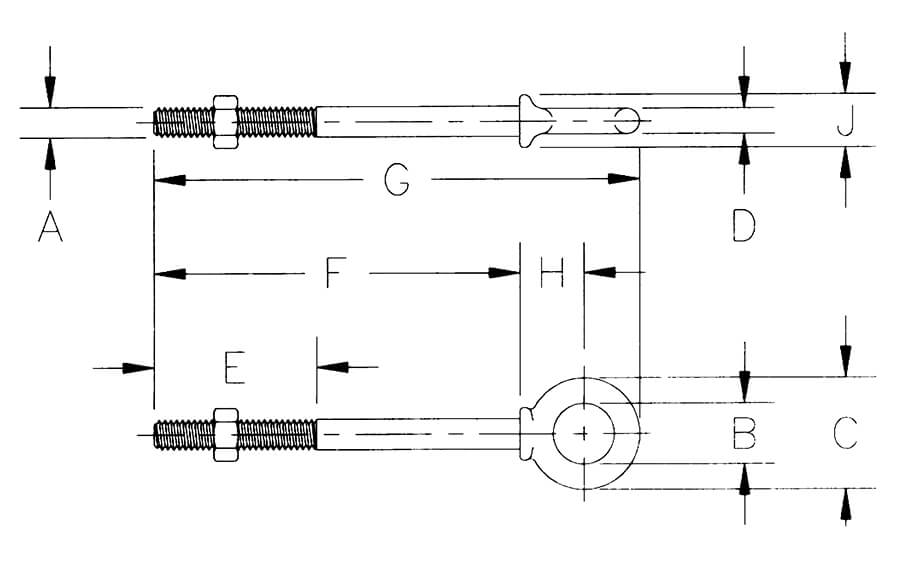

| A | B | C | D | E | F | G | H | J | |||||
| 1/4 x 2 | CX10-0323 | 1045014 | 650 | 6.60 | 0.25 | 0.50 | 0.88 | 0.19 | 1.50 | 2.00 | 2.94 | 0.50 | 0.47 |
| 1/4 x 4 | CX10-0324 | 1045032 | 650 | 9.10 | 0.25 | 0.50 | 0.88 | 0.19 | 2.50 | 4.00 | 4.94 | 0.50 | 0.47 |
| 5/16 x 2 1/4 | CX10-0325 | 1045050 | 1200 | 12.50 | 0.31 | 0.62 | 1.12 | 0.25 | 1.50 | 2.25 | 3.50 | 0.69 | 0.56 |
| 5/16 x 4 1/4 | CX10-0326 | 1045078 | 1200 | 18.80 | 0.31 | 0.62 | 1.12 | 0.25 | 2.50 | 4.25 | 5.50 | 0.69 | 0.56 |
| 3/8 x 2 1/2 | CX10-0327 | 1045096 | 1550 | 21.40 | 0.38 | 0.75 | 1.38 | 0.31 | 1.50 | 2.50 | 3.97 | 0.78 | 0.66 |
| 3/8 x 4 1/2 | CX10-0328 | 1045112 | 1550 | 25.30 | 0.38 | 0.75 | 1.38 | 0.31 | 2.50 | 4.50 | 5.97 | 0.78 | 0.66 |
| 1/2 x 3 1/4 | CX10-0329 | 1045130 | 2600 | 42.60 | 0.50 | 1.00 | 1.75 | 0.38 | 1.50 | 3.25 | 5.12 | 1.00 | 0.91 |
| 1/2 x 6 | CX10-0330 | 1045158 | 2600 | 56.80 | 0.50 | 1.00 | 1.75 | 0.38 | 3.00 | 6.00 | 7.88 | 1.00 | 0.91 |
| 5/8 x 4 | CX10-0331 | 1045176 | 5200 | 68.60 | 0.62 | 1.25 | 2.25 | 0.50 | 2.00 | 4.00 | 6.44 | 1.31 | 1.12 |
| 5/8 x 6 | CX10-0332 | 1045194 | 5200 | 102.40 | 0.62 | 1.25 | 2.25 | 0.50 | 3.00 | 6.00 | 8.44 | 1.31 | 1.12 |
| 3/4 x 4 1/2 | CX10-0333 | 1045210 | 7200 | 144.50 | 0.75 | 1.50 | 2.75 | 0.62 | 2.00 | 4.50 | 7.44 | 1.56 | 1.38 |
| 3/4 x 6 | CX10-0334 | 1045238 | 7200 | 167.50 | 0.75 | 1.50 | 2.75 | 0.62 | 3.00 | 6.00 | 8.94 | 1.56 | 1.38 |
| 7/8 x 5 | CX10-0335 | 1045256 | 10600 | 225.00 | 0.88 | 1.75 | 3.25 | 0.75 | 2.50 | 5.00 | 8.46 | 1.84 | 1.56 |
| 1 x 6 | CX10-0336 | 1045292 | 13300 | 366.30 | 1.00 | 2.00 | 3.75 | 0.88 | 3.00 | 6.00 | 9.97 | 2.09 | 1.81 |
| 1 x 9 | CX10-0337 | 1045318 | 13300 | 422.50 | 1.00 | 2.00 | 3.75 | 0.88 | 4.00 | 9.00 | 12.97 | 2.09 | 1.81 |
| 1 1/4 x 8 | CX10-0338 | 1045336 | 21000 | 650.00 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 8.00 | 12.72 | 2.47 | 2.28 |
| 1 1/4 x 12 | CX10-0339 | 1045354 | 21000 | 795.00 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 12.00 | 16.72 | 2.47 | 2.28 |
| 1 1/2 x 15 | CX10 -0340 | 1045372 | 24000 | 1425.00 | 1.50 | 3.00 | 5.50 | 1.25 | 6.00 | 15.00 | 20.75 | 3.00 | 2.75 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
