Crosby® Shoulder Type Machinery Eye Bolts – S-279

Crosby® Shoulder Type Machinery Eye Bolts - S-279

S-279

  • Forged Steel
    — Quenched & Tempered.
  • Recommended for straight line pull.
  • Fatigue tested to 1 1/2 times the Working Load Limit for 20,000 cycles.

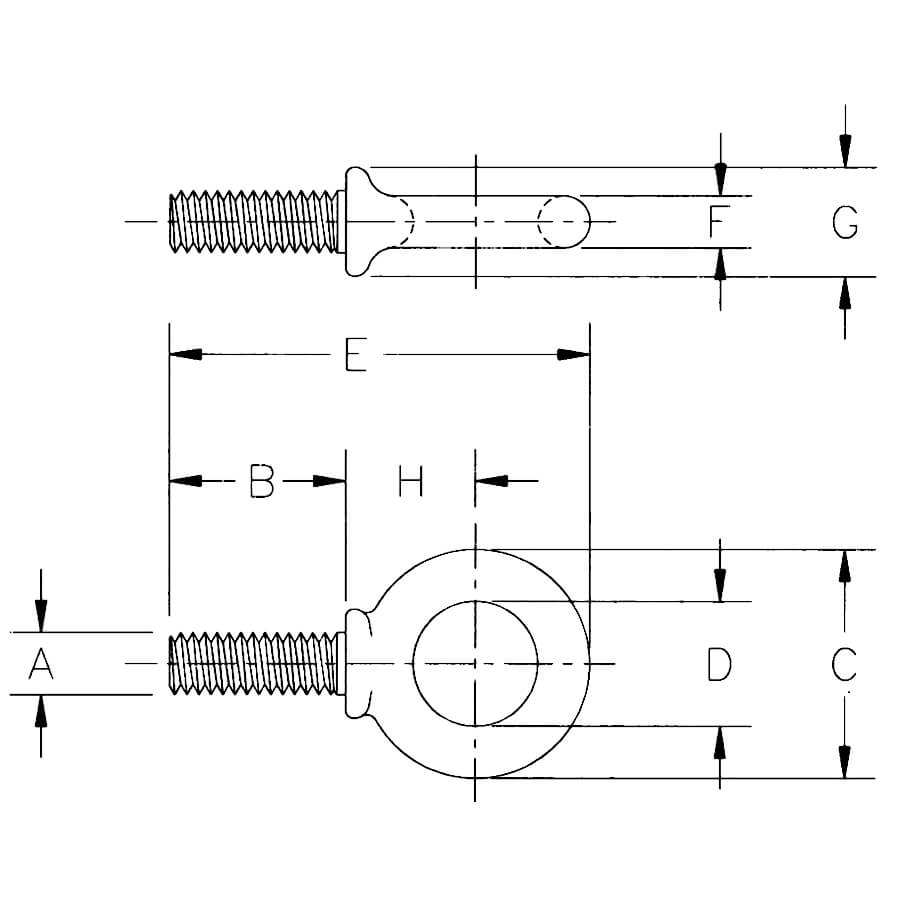

Size CERTEX Cat. Ref. No Crosby Stock No. Working Load Limit* (lbs.) Weight Per 100 (lbs.) Dimensions (in.)
A B C D E F G H
1/4 x 1 CX10-0313 9900182 650 5.10 0.25 1.00 0.88 0.50 1.94 0.19 0.47 0.50
5/16 x 1 1/8 CX10-0314 9900191 1200 6.20 0.31 1.13 1.12 0.62 2.38 0.25 0.56 0.69
3/8 x 1 1/4 CX10-0315 9900208 1550 12.50 0.38 1.25 1.38 0.75 2.72 0.31 0.66 0.78
1/2 x 1 1/2 CX10-0316 9900217 2600 25.00 0.50 1.50 1.75 1.00 3.38 0.38 0.91 1.00
5/8 x 1 3/4 CX10-0317 9900226 5200 50.00 0.63 1.75 2.25 1.25 4.19 0.50 1.12 1.31
3/4 x 2 CX10-0318 9900235 7200 87.50 0.75 2.00 2.75 1.50 4.94 0.62 1.38 1.56
7/8 x 2 1/4 CX10-0319 9900244 10600 157.20 0.88 2.25 3.25 1.75 5.72 0.75 1.56 1.84
1 x 2 1/2 CX10-0320 9900253 13300 218.00 1.00 2.50 3.75 2.00 6.47 0.88 1.81 2.09
1 1/4 x 3 CX10-0321 9900262 21000 380.00 1.25 3.00 4.50 2.50 7.72 1.00 2.28 2.47
1 1/2 x 3 1/2 CX10-0322 9900271 24000 700.00 1.50 3.50 5.50 3.00 9.25 1.25 2.75 3.00

* Ultimate load is 5 times the Working Load Limit.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
