• Forged Carbon Steel — Quenched and Tempered.
• Pressed steel latches and stainless steel springs, bolts and nuts.
• For replacement latch kit, order Stock No. 9900299.

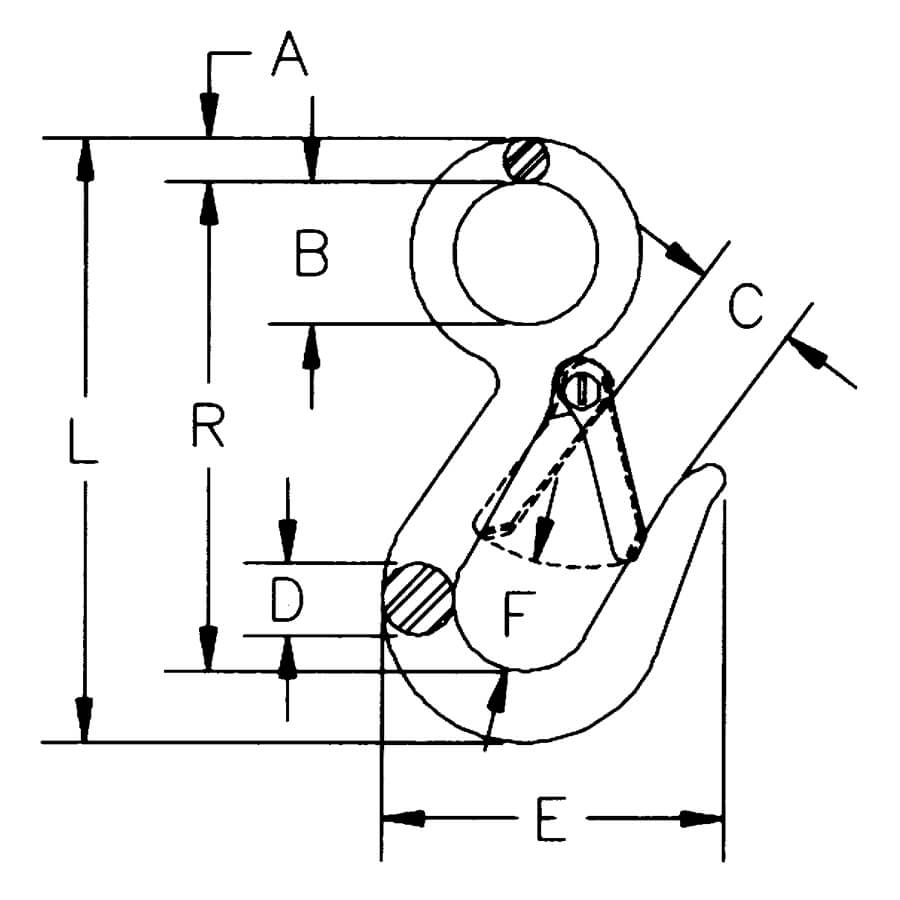

| Hook Size (in.) | CERTEX Cat. Ref. No. | Crosby G-3315 Stock No. Galv. | Working Load Limit* (lbs.) | Weight Each (lbs.) | Dimensions (in.) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | L | R | |||||
| 7/16 | CX05-0133 | 1023056 | 750 | .23 | .25 | .75 | .75 | .44 | 2.25 | .75 | 3.94 | 3.25 |
| 9/16 | CX05-0134 | 1023074 | 1000 | .52 | .34 | 1.12 | .81 | .56 | 2.69 | .88 | 4.75 | 3.84 |
* Ultimate Load is 4 times the Working Load Limit.
