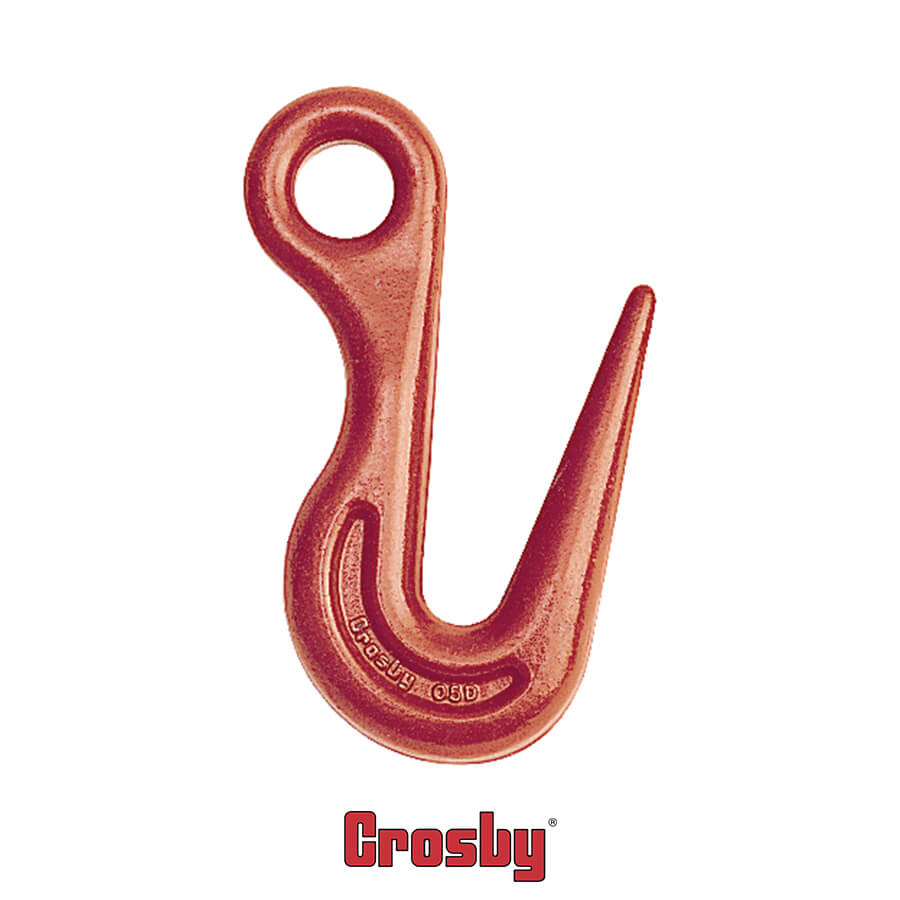

• Forged Alloy Steel — Quenched and Tempered.
• Deep straight throat permits efficient handling of flat plates or large cylindrical shapes.
• The long tapered point allows easy grab in rings, pear links, eye bolts or lifting holes.
| Working Load Limit* at tip of Hook (tons) | Working Load Limit* at bottom of Hook (tons) | CERTEX Cat. Ref. No. | Crosby A-378 Stock No. S.C. | Weight Each (lbs.) | Dimensions (in.) | |||
|---|---|---|---|---|---|---|---|---|
| I.D. of Eye | Overall Length | Opening at top of Hook | Radius atbottom of Hook | |||||
| 2 | 7 1/2 | CX05-0142 | 1028024 | 6.42 | 1.38 | 9.69 | 2.81 | .625 |
* Ultimate Load is 5 times the Working Load Limit
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
