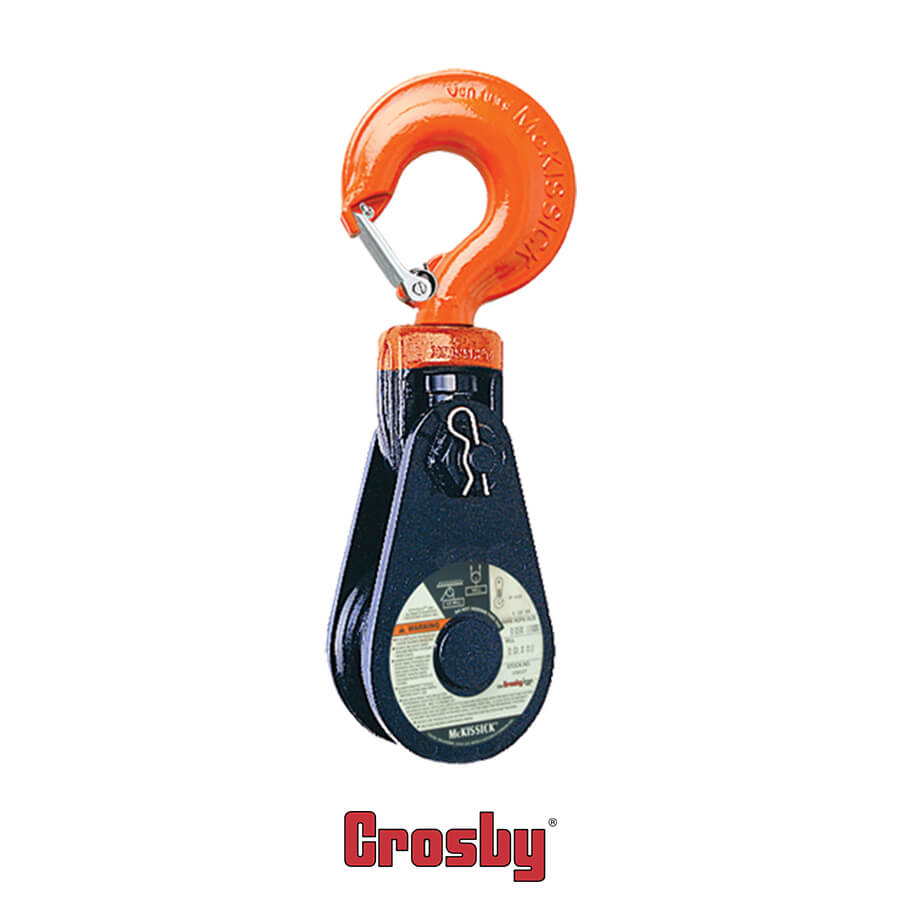

430 With Hook
| Sheave Diameter (in.) | Bearing Code | 430 with Hook | Wire Rope Size† (in.) | Working Load Limit* (metric tons) | Weight Each (lbs.) | |
| CERTEX Cat. Ref. No. | Crosby Stock No. | 430 with Hook | ||||
| 8 | BB RB | CX13-0087 CX13-0088 | 208448 169882 | 1 | 20 | 75 |
| 8 | BB RB | CX13-0089 CX13-0090 | 120023 120041 | 1 1/8 | 20 | 75 |
| 10 | BB RB | CX13-0091 CX13-0092 | 208475 208509 | 1 | 20 | 89 |
| 10 | BB RB | CX13-0093 CX13-0094 | 120096 120112 | 1 1/8 | 20 | 89 |
| 12 | BB RB | CX13-0095 CX13-0096 | 208536 208554 | 1 | 20 | 103 |
| 12 | BB RB | CX13-0097 CX13-0098 | 120176 120194 | 1 1/8 | 20 | 103 |
| 14 | BB RB | CX13-0099 CX13-0100 | 208537 208590 | 1 | 20 | 123 |
| 14 | BB RB | CX13-0101 CX13-0102 | 120256 120274 | 1 1/8 | 20 | 123 |
| 18 | BB RB | CX13-0103 CX13-0104 | 508689 208732 | 1 | 25 | 240 |
| 18 | BB RB | CX13-0105 CX13-0106 | 119482 119491 | 1 1/8 | 25 | 240 |
| 20 | BB RB | — CX13-0107 | — 208787 | 1 1/8 | 30 | 375 |
| 20 | BB RB | CX13-0108 CX13-0109 | 119507 119516 | 1 1/4 | 30 | 375 |
| 24 | BB RB | CX13-0110 CX13-0111 | 208812 508858 | 1 1/8 | 30 | 450 |
| 24 | BB RB | CX13-0112 CX13-0113 | 119525 119534 | 1 1/4 | 30 | 450 |
* Ultimate Load is 4 times the Working Load Limit.
† May be furnished in other Wire Rope sizes.
