Crosby® UNC Swivel Hoist Rings
Crosby® UNC Swivel Hoist Rings

HR-125
Swivel Hoist Ring

  • Top washer has the following features:
    • The Working Load Limit and Recommended Torque value are permanently stamped into each washer.
    • Washer is color coded for easy identification: Red – UNC thread.
  • Individually Proof Tested to 2-1/2 times Working Load Limit.
  • Bolt specification is an Alloy socket head cap screw to ASTM A 574.
Table 1
Frame
Size No.
HR-125 Stock No Working Load Limit (lbs.)* Torque in Ft. Lbs. Dimensions (in.) Weight Each (lbs.)
Bolt Size A ‡ Effective Thread Projection Length B C D Radius E Diameter F G H
1 † 1016887 800 7 5/16 – 18 x 1.50 0.58 2.72 0.97 0.46 0.34 1.87 1.12 0.37
1 † 1016898 1000 12 3/8 – 16 x 1.50 0.58 2.72 0.97 0.46 0.34 1.87 1.05 0.39
2 1016909 2500 28 1/2 – 13 x 2.00 0.70 4.85 1.96 0.87 0.75 3.35 2.29 2.33
2 † 1016912 2500 28 1/2 – 13 x 2.50 1.20 4.85 1.96 0.87 0.75 3.35 2.29 2.36
2 1016920 4000 60 5/8 – 11 x 2.00 0.70 4.85 1.96 0.87 0.75 3.35 2.16 2.41
2 † 1016924 4000 60 5/8 – 11 x 2.75 1.45 4.85 1.96 0.87 0.75 3.35 2.16 2.47
2 1016931 5000 100 3/4 – 10 x 2.25 0.95 4.85 1.96 0.87 0.75 3.35 2.04 2.52
2 † 1016935 5000 100 3/4 – 10 x 2.75 1.45 4.85 1.96 0.87 0.75 3.35 2.04 2.59
3 1016942 7000 ** 100 3/4 – 10 x 2.75 0.89 6.57 2.96 1.36 0.94 4.87 2.97 6.72
3 † 1016946 7000 ** 100 3/4 – 10 x 3.50 1.64 6.57 2.96 1.36 0.94 4.87 2.97 6.81
3 1016953 8000 160 7/8 – 9 x 2.75 0.89 6.57 2.96 1.36 0.94 4.87 2.84 6.84
3 † 1016957 8000 160 7/8 – 9 x 3.50 1.64 6.57 2.96 1.36 0.94 4.87 2.84 6.96
3 1016964 10000 230 1 – 8 x 3.00 1.14 6.57 2.96 1.36 0.94 4.87 2.72 7.09
3 † 1016969 10000 230 1 – 8 x 4.00 2.14 6.57 2.96 1.36 0.94 4.87 2.72 7.31
4 1016975 15000 470 1-1/4 – 7 x 4.50 2.21 8.72 3.71 1.75 1.19 6.18 3.93 14.51
5 1016986 24000 800 1-1/2 – 6 x 6.75 3.00 12.55 4.71 2.39 1.75 8.48 5.52 37.73
5 1016997 30000 1100 2 – 4-1/2 x 6.75 3.00 12.55 4.71 2.39 1.75 8.48 5.02 40.69
6 1017001 50000 2100 2-1/2 – 4 x 8.0 4.00 16.88 5.75 3.00 2.25 11.00 8.03 88.00
7 1017005 75000 4300 3 – 4 x 10.5 5.00 19.50 6.45 3.75 2.75 14.16 8.50 166.00
8 1017009 100000 5100 3-1/2 – 4 x 13.0 # 7.00 22.09 7.75 4.00 3.25 15.91 9.28 265.00

*Ultimate Load is 5 times the Working Load Limit.
** Ultimate Load is 4.5 times the Working Load Limit for 7000# Hoist Ring when tested in 90 degree orientation.
† Long Bolts are designed to be used with soft metal (i.e., aluminum) workpiece. While the long bolts may also be used with ferrous metal (i.e.,steel & iron) workpiece, short bolts are designed for ferrous workpieces only.
‡ Bolt specification is an Alloy socket head cap screw to ASTM A 574.
# Hex head bolt used on Frame 8 (100,000lb.) Hoist Ring.

HR-125
Swivel Hoist Ring

  • All threads listed are UNC

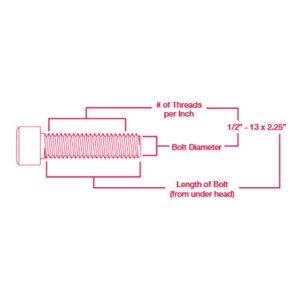

  • BOLT SIZE IDENTIFICATION:
    The size of the bolt will be stated as in the drawing above.

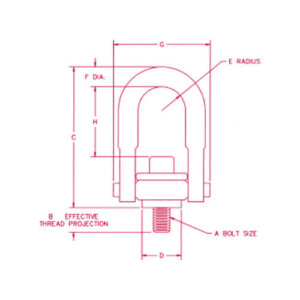

    Illustration shows meaning of each dimension given.
  • Frame 2 and larger are RFID EQUIPPED.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
