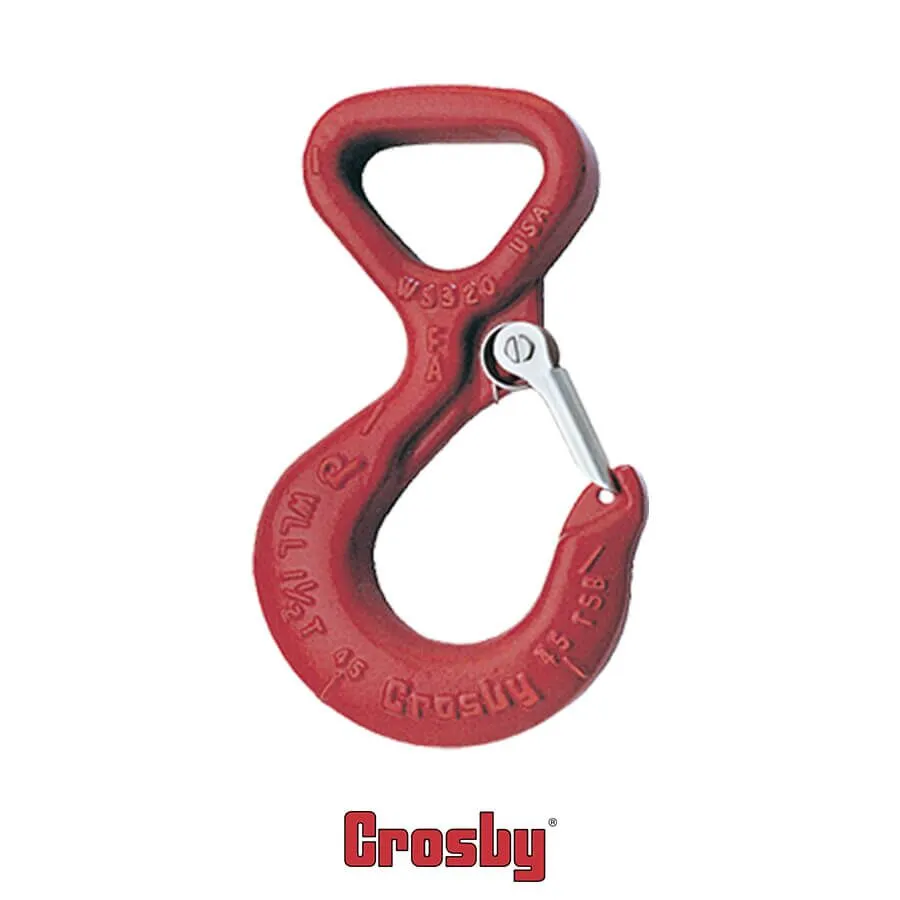

Crosby® WS-320A Synthetic Sling Saver Hook

• Suitable for use with 2-Ply Web Slings and Round Slings.
• Eye is designed with a wide beam surface, which eliminates bunching effects, reduces sling tendency to slide, and allows a better load distribution on internal fibers.
• All alloy construction.
• Each hook has a Product Identification Code (PIC) for material traceability along with a working load limit and the name Crosby forged into it.
• All hooks feature Crosby’s patented QUIC-CHECK® indicators.
• Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
• Includes S-4320 latch.
• Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Round Slings by the Web Sling & Tie Down Association (WSTDA-RS1).


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

WSL-320A Synthetic Sling Hook

Web Sling Eye Width (in) Round Sling Size (No.) Working Load Limit (t) WSL-320A with Latch Weight Each (lb) Hook I.D. Code S-4320 Rep. Latch
1” 1 1.5 1022706 1.10 FA 1096374
2” 2 3 1022717 2.86 HA 1096468
3” 3 5 1022728 6.60 IA 1096515

WSL-320A Synthetic Sling Hook

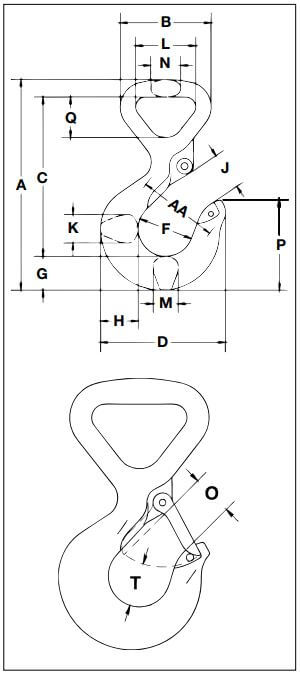

Hook ID Code Working Load Limit (t) Dimensions (in)
A B C D F G H J K L M N O P Q T AA
FA 1.5 5.25 2.26 3.98 3.11 1.38 0.84 0.94 0.93 0.71 1.50 0.63 0.75 0.91 2.24 1.01 0.98 2.00
HA 3 7.11 3.66 5.31 3.97 1.63 1.13 1.32 1.13 0.94 2.50 0.85 1.13 1.09 2.82 1.69 1.16 2.00
IA 5 9.33 5.13 7.06 4.81 2.00 1.44 1.63 1.47 1.31 3.75 1.13 1.63 1.36 3.51 2.59 1.53 2.50

Design factor of 5:1.
Maximum Proof Load is 2.5 times the Working Load Limit.

• Shackles available in sizes 3 1/4 to 50 tons.
• Hooks available is sizes 1 1/2, 3 and 5 tons.

• Increased radius of bow / eye gives wider sling bearing surface resulting in an increased area for load distribution, thus:
• Increasing Synthetic Sling efficiency by at least 15% as compared to standard anchor and chain shackle bows and conventional eye hooks. This allows 100% of the slings rated Working Load Limit to be achieved.
• Allowing better load distribution on internal fibers.

• Design factor of 5 to 1.
• Shackles available in both a Screw Pin and Bolt, Nut and cotter pin configuration.
• Bolt (Pin) has a larger diameter that provides better load distribution.
• Look for the Red Pin™ … the mark of Genuine Crosby quality.
• Each shackle and hook has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby forged into it.
• All Alloy construction.
• Fatigue rated to 20,000 cycles at 1 1/2 times the Working Load Limit.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
