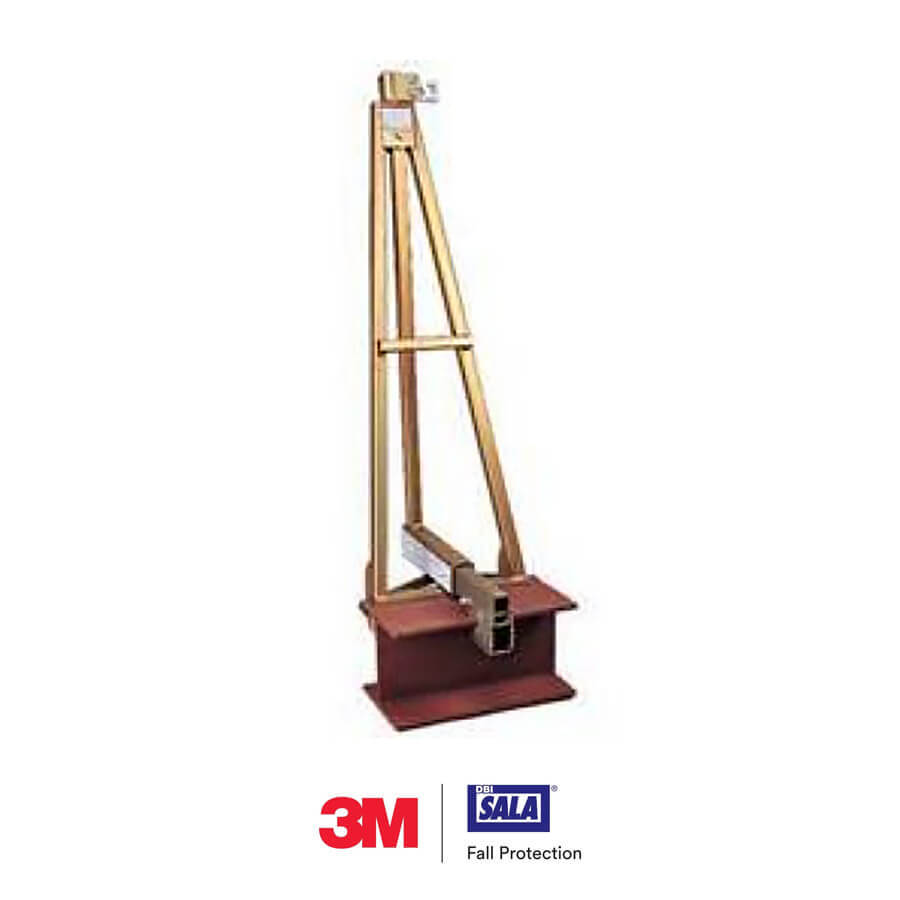

3M™ DBI-SALA® Iron Wing™ Portable Horizontal Lifeline System

3M™ DBI-SALA® Iron Wing™ Portable Horizontal Lifeline System

The easy to install, fully customizable Iron Wing™ System is ideal for larger beams and multi-span length systems. Strong and robust, it is carefully engineered for continuous fall protection while providing freedom of movement. The 3-point claw/ contact system offers reliability without tie-back, reducing trip fall hazards.

• All metallic system, designed for durability and safety
• Galvanized cable lifeline offset from the beam by 12” (30cm) for easy passage and elevated 40” (100cm) for use as a handrail
• DBI-SALA 3-point claw/contact system offers reliability without tie-back, reducing trip fall hazards
• Internal in-line energy absorber
• Instructional video

Please note: See product instruction manuals for complete clearance information or different user scenarios.


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Iron Wing™ Systems
7003020 20’ (6m) system
7003030 30’ (9m) system
7003040 30’ (9m) system
7003050 50’ (15m) system
7003060 60’ (18m) system
Iron Wing™ Clearance Chart
Span Length 1-2 Users 6′ (1.8m) Lanyard 1-2 Users SRL
0-10’ (3m) 17’-6” (5.3m) 9’-6” (2.9m)
10’-20’ (3-6m) 18’-4” (5.5m) 10’-4” (3.1m)
20’-30’ (6-9m) 19’-2” (5.8m) 11’-2” (3.4m)
30’-40’ (9-12m) 19’-9” (5.9m) 11’-9” (3.5m)
40’-50’ (12-15m) 20’-7” (6.2m) 12’-7” (3.8m)
50’-60’ (15-18m) 21’-5” (6.4m) 13’-5” (4m)
Customize Your Iron Wing™ System
7006606 Stanchion with energy absorber
7006608 Stanchion – intermediate
7006602 Stanchion – standard
7000000 Cable assembly w/turnbuckle, 20-100’ (6-30m) lengths available in 10’ (3m) increments (last 3 digits in part # detail length)
7001000 Cable with swage fitting, 20-100’ (6-30m) lengths available in 10’ (3m) increments (last 3 digits in part # detail length)
7006925 Front extension to fit 12”-18” (30-45cm) flange
7006926 Front extension to fit 18”-24” (45-60cm) flange

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
