3M™ DBI-SALA® Pour-In-Place SecuraSpan® System

3M™ DBI-SALA® Pour-In-Place SecuraSpan® System

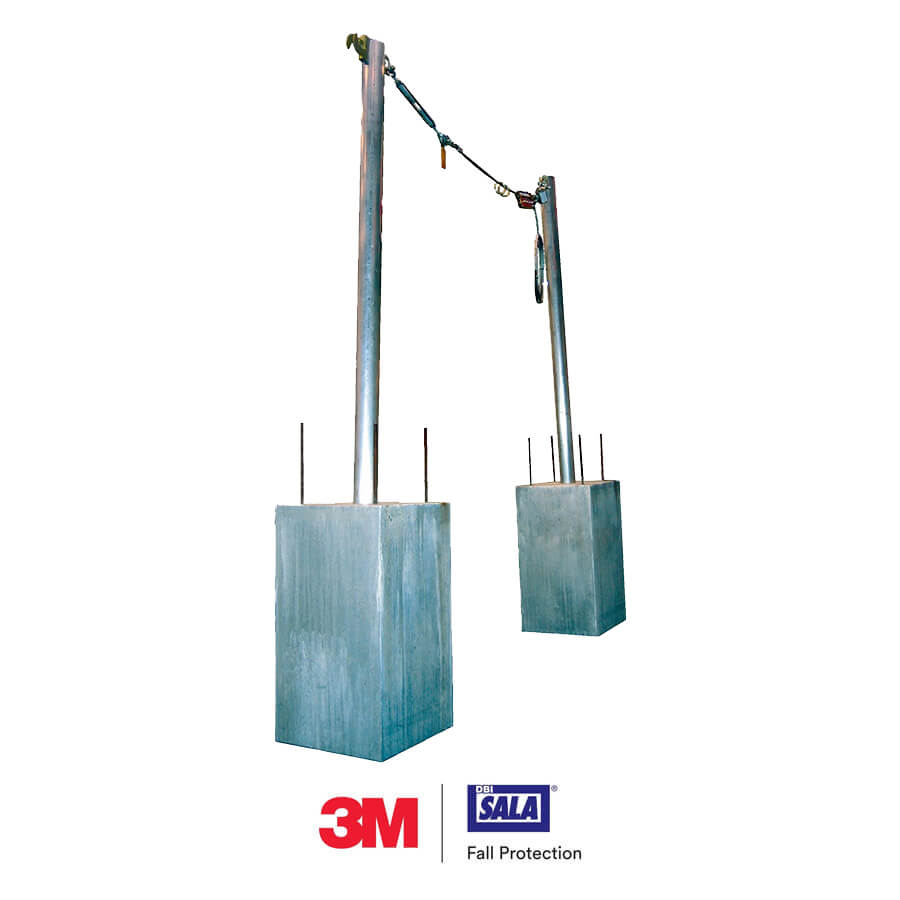

SecuraSpan® is a horizontal system that installs to column tops providing workers an overhead tie-off point and fall protection during the decking process. The stanchion (aluminum pole) simply slides into the embedded pour-in-place sleeve and does not require “tie-back” for fast installation. Single span or multispan configurations are available for complete work-site flexibility. The system can be configured to run indefinitely and handle up to 6 workers (2 workers per span max.). Span between intermediates can be as great as 60’(18m) depending upon your clearance requirements.

Pour-in-Place Systems
7400220 20′ (6m) system
7400230 30’ (9m) complete system
7400240 40’ (12m) complete system
7400250 50’ (15m) complete system
7400260 60’ (18m) complete system
Pour-in-Place Components
7400203 Stanchion, 7′ 6″ tall
7400204 Pour-in-Place sleeve
7400200 Intermediate bracket
Pour-in-Place Clearance Chart
Span ft. (m) Clearance ft. (m)
0-10 (0-3.0) 6’ 11” (2.1)
10-20 (3.0-6.1) 8’ (2.4)
20-30 (6.1-9.0) 9’ 1” (2.8)
30-40 (9.0-12.3) 10’ 2” (3.1)
40-50 (12.3-15.4) 11’ 4” (3.5)
50-60 (15.4-18.5) 12’ 5” (3.8)

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
