• Lightweight and extremely portable allowing you to move it and reuse it over and over again
• Cable lifeline assembly and wedgegrip termination for easy adjustability and installation
• Zorbit™ shock absorber for added safety, it allows you to use a standard 5,000 lb. rated anchorage connector such as our tie-off adaptor, fixed beam anchor, D-ring anchorage plate, etc.
Please note: See product instruction manuals for complete clearance information or different user scenarios.
| Sayfline™ Cable Systems | |
|---|---|
| 7602020 | 20’ (6m) long |
| 7602030 | 30’ (9m) long |
| 7602040 | 40’ (12m) long |
| 7602050 | 50’ (15m) long |
| 7602060 | 60’ (18m) long |
| 7602070 | 70’ (21m) long |
| 7602080 | 80’ (24m) long |
| 7602090 | 90’ (27m) long |
| 7602100 | 100’ (30m) long |
| Cable Sayfline™ Clearance Chart | ||
|---|---|---|
| Span Length | 1-2 Users 6′ (1.8m) Lanyard | 1-2 Users SRL |
| 0-10′ (3m) | 17’-11” (5.4m) | 6’-11” (2.1m) |
| 10′-20′ (3-6m) | 19’-2” (5.8m) | 8’-0” (2.4m) |
| 20′-30′ (6-9m) | 20’-6” (6.2m) | 9’-1” (2.7m) |
| 30′-40′ (9-12m) | 21’-10” (6.6m) | 10’-2” (3.1m) |
| 40′-50′ (12-15m) | 23’-1” (6.9m) | 11’-4” (3.4m) |
| 50′-60′ (15-18m) | 24’-5” (7.3m) | 12’-5” (3.7m) |
(required above lower level or obstruction)

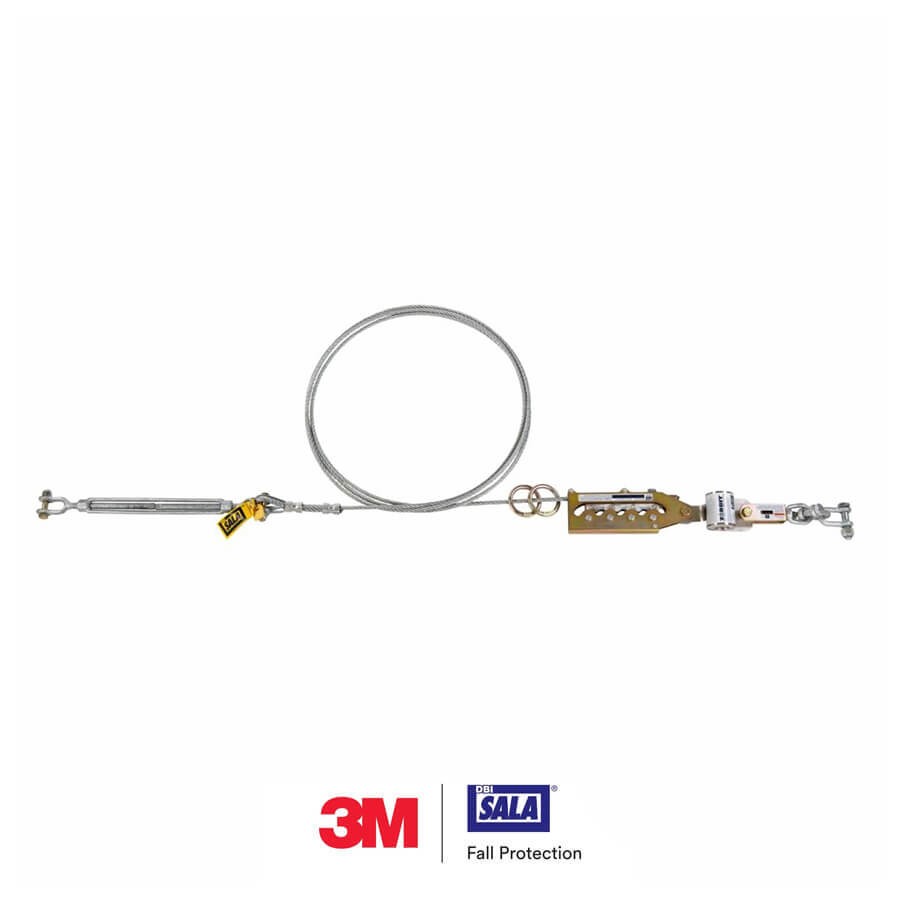

The cable Sayfline™ system is highly portable and ideal for use in situations where welding, sparks or harsh environments are present or where minimal clearance exists. This all-metal system is durable enough to be left in place for long periods of time and light enough to be moved easily from one job to another. Engineered with DBI-SALA attention to quality and detail, the Sayfline™ system is a complete kit that is easily installed with no special tools or equipment.
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Non-removable special bolt
WLL range 1 – 2 persons Ring body and bolt made from stainless steel Non-removable special bolt
Large WLL range 1.5 t – 16 t Functionally optimized shape of the suspension ring for better support at side loading and protection of the clamping spring WLL possible up to 90° in load ring plane
