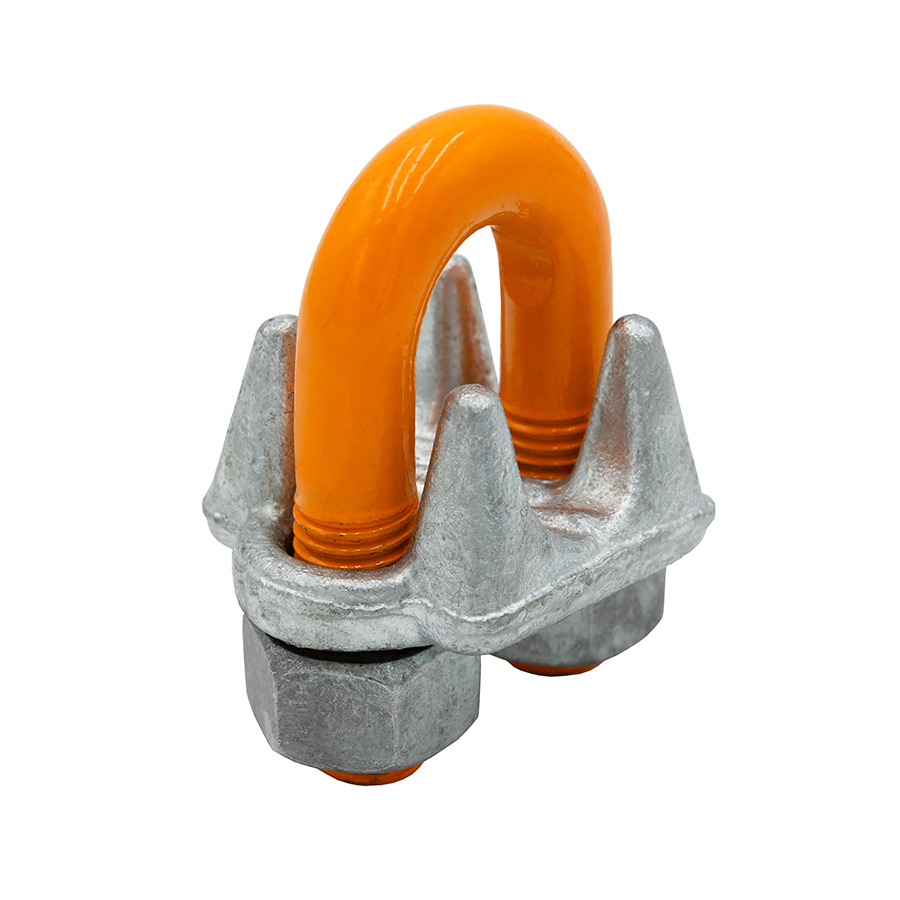

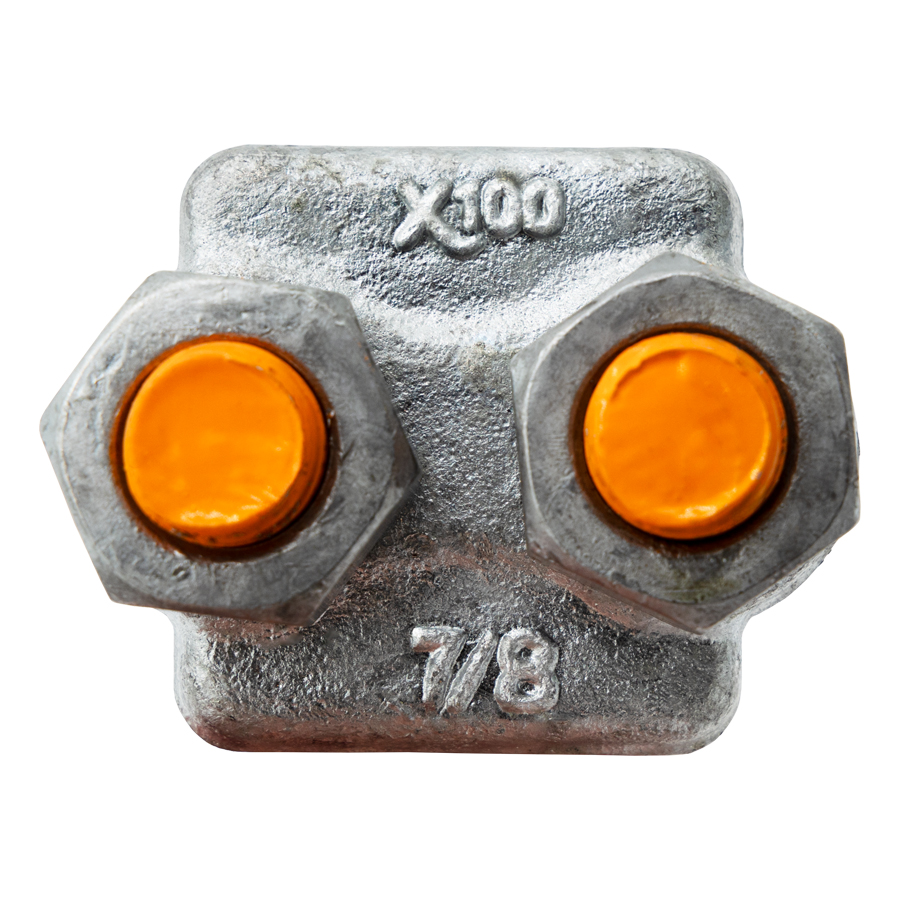

X100® Drop Forged – Hot Galvanized Wire Rope Clips

X100® Drop Forged - Hot Galvanized Wire Rope Clips

Never Saddle a Dead Horse

When using wire rope clips, (also known as wire rope clamps) always apply the saddle of clip to the "live side" or load bearing side of the cable assembly.

APPROVED FOR OVERHEAD LIFTING

Methods Of Application

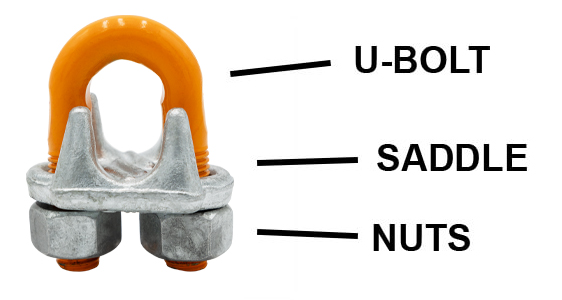

1. Always apply the saddle of the wire rope clip to the live end (non turnback end) of the wire rope or cable. “Never Saddle a Dead Horse.” Turn back the specified amount of rope from the thimble. Apply the first clip one base width from the dead end of the wire rope.

2. Apply the next clip as near the loop as possible. Turn on the nuts but do not tighten.

3. Space additional clips equally between the first two. Take up rope slack. Tighten all nuts evenly on all clips.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

SIZE STOCK NUMBER WEIGHT/100 PIECES MINIMUM CLIPS REQUIRED TORQUE IN LBS. FT.* TURN BACK LENGTH
1/8″ DFWRC125 5 lbs. 2 4.5 lbs. 3 1/4″
3/16″ DFWRC187 10 lbs. 2 7.5 lbs. 3 3/4″
1/4″ DFWRC250 18 lbs. 2 15 lbs. 4 3/4″
5/16″ DFWRC312 31 lbs. 2 30 lbs. 5 1/4″
3/8″ DFWRC375 46 lbs. 2 45 lbs. 6 1/2″
7/16″ DFWRC437 73 lbs. 3 65 lbs. 7″
1/2″ DFWRC500 73 lbs. 3 65 lbs. 11 1/2″
9/16″ DFWRC562 96 lbs. 3 95 lbs. 12″
5/8″ DFWRC625 104 lbs. 3 95 lbs. 12″
3/4″ DFWRC750 150 lbs. 4 130 lbs. 18″
7/8″ DFWRC875 244 lbs. 4 225 lbs. 19″
1″ DFWRC100 270 lbs. 5 225 lbs. 26″
1 1/8″ DFWRC1125 310 lbs. 6 225 lbs. 34″
1 1/4″ DFWRC1250 460 lbs. 7 360 lbs. 44″
1 3/8″ DFWRC1375 520 lbs. 7 360 lbs. 44″
1 1/2″ DFWRC1500 590 lbs. 8 360 lbs. 54″
1 3/4″ DFWRC1750 980 lbs. 8 590 lbs. 58″

*Torque values shown are based on clean, unlubricated threads. Wire rope clips are not designed for load carrying purposes, therefore working load limits have not been established.

Note: Malleable Wire Rope Clips made according to Federal Specification FF-C-450 G, Type 1, Class 2. Forged Wire Rope Clips made according to Federal Specification FF-C-450 G, Type 1, Class 1.

Wire Rope Terminations Information

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
