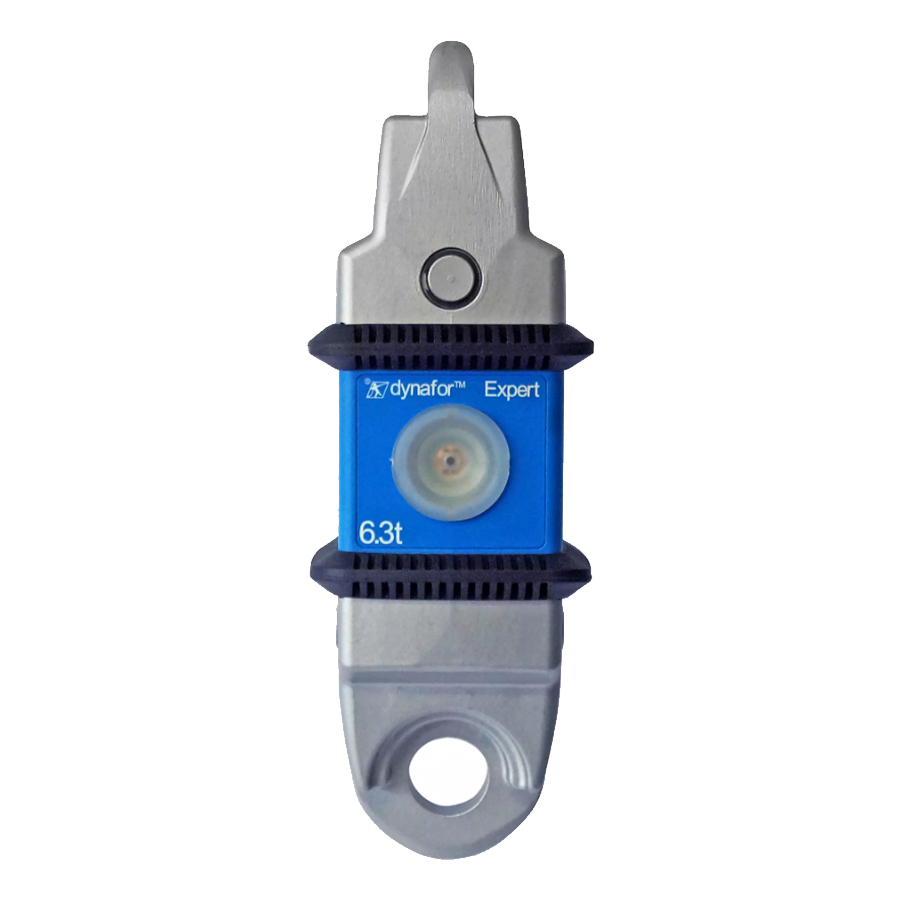

dynafor® Expert- sensor only – capacity from 1/2 t to 10 t. Accuracy: +/- 0.1% dynamometer

dynafor® Expert- sensor only - capacity from 1/2 t to 10 t. Accuracy: +/- 0.1% dynamometer

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

  • Load indicator dynamometer sensor only IP 64
  • Capacity range from 1,000 to 20,000 lbs. (1⁄2 to 10 t)
  • Operating temperature range from -4°F to 104°F (-20°C to 40°C)
  • Power supply: three 1.5 V “AA” batteries
  • Sensor protection: IP 64 (IP67 as an option)
  • Display protection: IP 54

The Dynafor® Expert offers a large array of wireless accessories and software:

  • Dynafor® HHD for a remote display with extended functionalities
  • Wireless Dynafor® AL128 for a high visibility display
  • Loader software to unload data saved into the Dynafor® HHD
  • Monitoring software, in use with Dynafor® HHD for real-time monitoring
  • Dynafor® application available on any iOS and Android device
  • Dynafor® DMU for threshold management
  • Standard bow and clevis shackles
  • Radio certifications : CE :Radio test EN 300 440-2 V1.1.1 / USA & Canada : FCC part 15 / Australia : C-Tick ID

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
