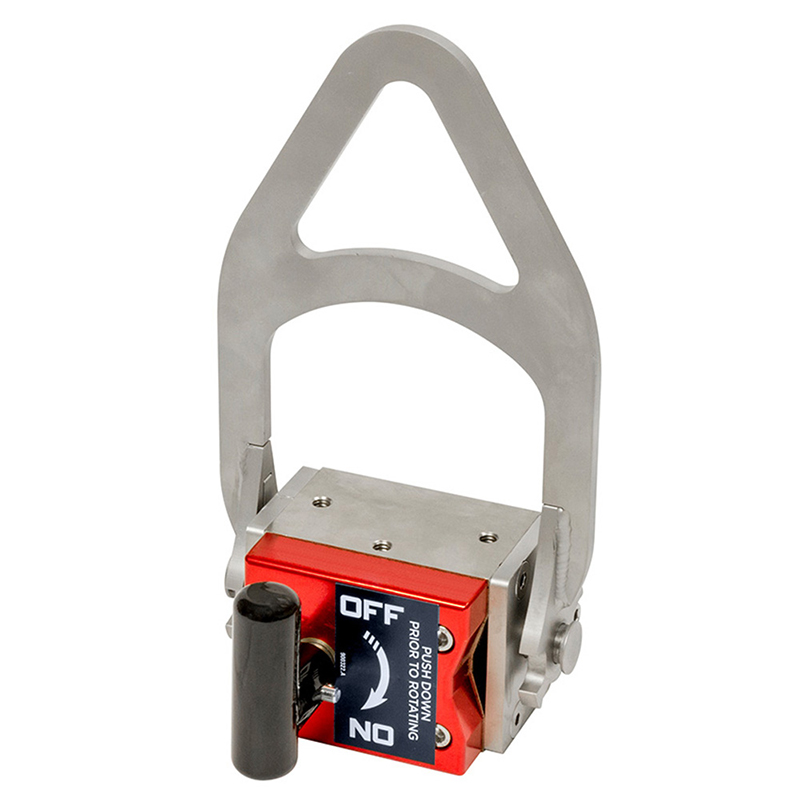

Dynamiclift Magnet 150 LB

Dynamiclift Magnet 150 LB

These lightweight and powerful rare earth permanent lift magnets can be used on flat or round surfaces and contain an internal release on/off device that does not contact or damage the surface of the part being lifted. DynamicLifts™ also offers excellent holding on thin gauge ferrous metals to comparable rare earth lift magnets.

CERTEX Cat. Ref. No. HEIGHT (IN) LENGTH (IN) WEIGHT (LBS) BAIL HEIGHT (IN) BAIL THICKNESS (IN) BAIL WIDTH (IN) WLL (LBS) HANDLE LENGTH (IN) MAGNET HEIGHT (IN) MAGNET LENGTH (IN) MAGNET WIDTH (IN) MAGNET POLE QUALITY
DL0150 10 5 6.1 2.25 0.25 3 150 2.5 2.75 3 2.5 2
  • On/Off Permanent Rare Earth Magnet
  • Handle Locks in the On Position
  • Lifts Flat or Round Loads
  • Easy Internal Manual Release Does Not Contact the Load
  • Large swivel lift lug
  • Heat Resistant Up To 180°F (82°C)
  • 3:1 Design Factor
  • Conforms To ASME B30.20 Standard

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
