dynarope® HF 36 – Tensiometer

dynarope® HF 36 - Tensiometer

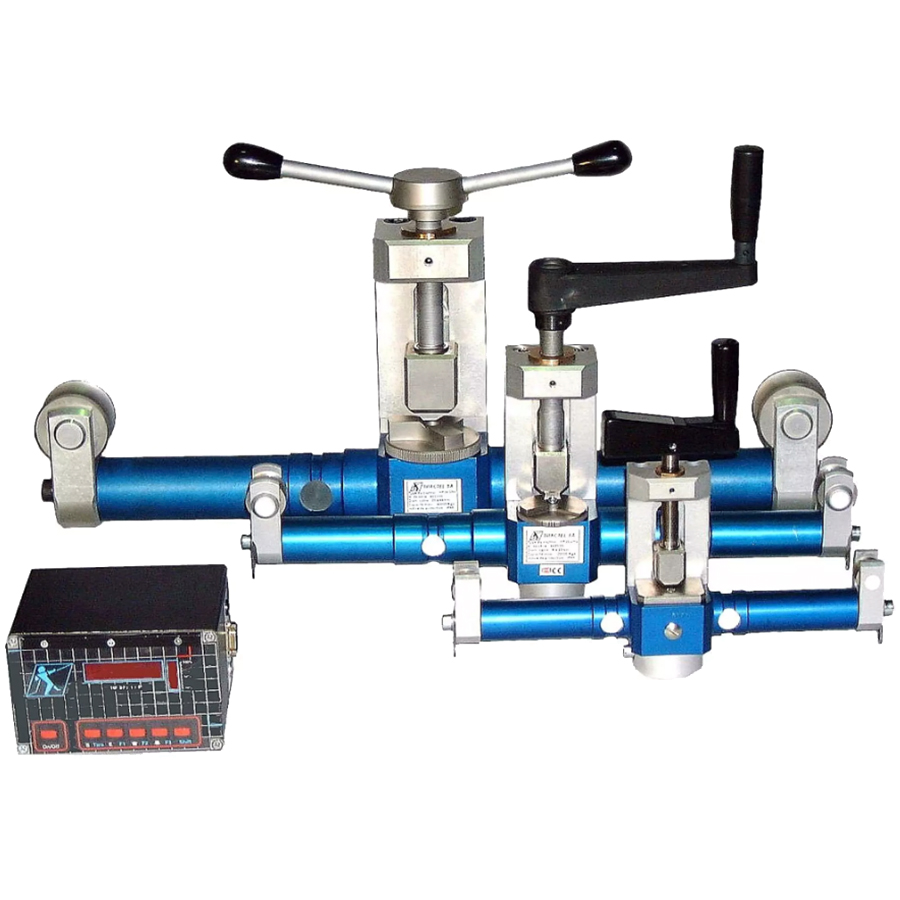

The dynarope® HF 36 is an electronic load cell that has been designed to measure the effort applied in a wire rope. The resulting signal is used in a digital remote display (model HF 87/T/LPT) controlled by a microprocessor, which corrects the force information according to the wire rope specification and displays the result of the measurement on a LCD display.

Several wire ropes specifications are logged in a data bank.

  • Capacity from 400 to 40,000 lbs. (200 to 20,000 kg)
  • Wire rope sizes from 3⁄16 to 11⁄8 in. (5 to 28 mm)
  • Accuracy: ± 2% of full scale
  • Power supply: three “AA” alkaline cells (located in display)
  • Autonomy: 200 h
  • Operating temperature from -4°F to 140°F (-20°C to 60°C)
  • Protection: IP 65 (NEMA 4)
  • A dynarope® tensiometer
  • A HF 87/T/LPT digital remote display with three “AA” 1.5 V batteries
  • A LEMO connection cable with four poles
  • A rugged carrying box
  • A CE certificate and calibration certificate
  • A user manual

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
