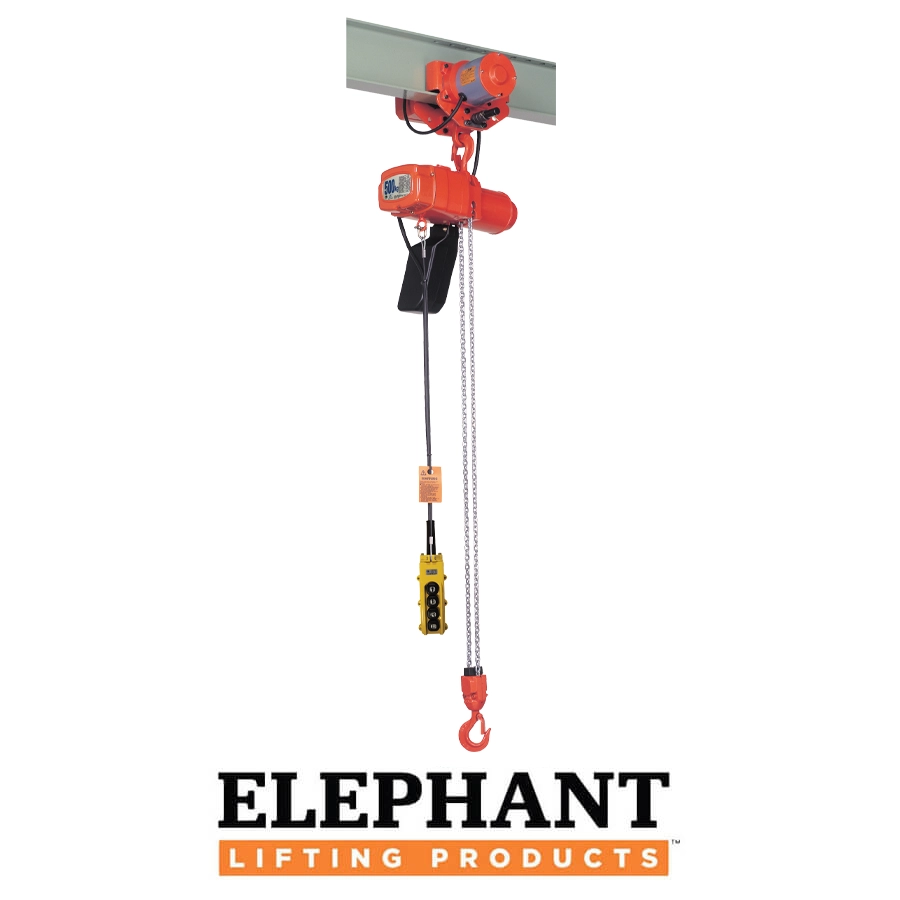

Elephant Alpha Series Compact Electric Chain Hoist Single Phase

Elephant Alpha Series Compact Electric Chain Hoist Single Phase
  • The aluminum die cast body is designed for environments where noise levels must be kept to a minimum
  • Compact design with low headroom, net weight of the hoists range from 32 lbs. with a standard 10’ lift
  • Alpha S series has a single brake design
  • Overload and overwind safety device.  This device ensures stability when the hoist is over wound, or over lowered.  The device also protects against an overload of the unit, helping to prevent damage to the hoist and injury to personnel.
  • A special surface treated load chain for corrosion resistance
  • The load chain is extremely durable, adhering to the strict German DIN 5684 standard
  • Upper and lower hooks with safety latches are designed to slowly stretch in the event of an overload, allowing for a visual indicator to the operator, to cease operation. The bottom hook has a thrust bearing to reduce stress on the lower block, while under load.
  • The pendant control’s contactor is designed for frequent use, guaranteeing excellent durability, even when ‘inching’ a load.
  • Rating JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
  • Temperature range -10° to 40° C,  14° to 104° F

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Type Single-Speed Type Variable-Speed Type Dual-Speed Type
Stock Number S-006 S-01 S-016 S-025 S-05 SV-006 SV-01 SV-016` SV-025 SV-05 SB-006 SB-01 SB-016 SB-025 SB-05
Rated Load (lbs) 130 220 350 550 1,100 130 220 350 550 1,100 130 220 350 550 1,100
Rated Load (kg) 60 100 160 250 500 60 100 160 250 500 60 100 160 250 500
Motor Output (W) 300 600 300 600 300 600
Short Time Rating (min) 25 25 25
Repetition Ratings Load Time Rate 30 30 30
Max. Starting Freq (times/h) 180 180 180
Rated Current (A) 6 8 12 12 12 6 8 12 12 12 6 8 12 12 12
Lifting Speed (ft/min) 42 42 49 32 16 [3][42] [3][42] [3][49] [3][32] [1.5] [16] Low [16] Low [13] Low [16] Low [13] Low [6]
High [42] High [42] High [49] High [32] High [16]
Standard Lift (ft/min) 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
Headroom (in) 12.8 12.8 12.8 12.8 16.34 12.8 12.8 12.8 12.8 16.34 12.8 12.8 12.8 12.8 16.34
Push-button Cord Length (ft) 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8
Load Chain – Dia. X Pitch (mm) 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12 4 X 12
Net Weight (lbs) 32 32 36 36 44 33 33 38 38 45 32 32 36 36 44

1. A power source cable of 16.5’ is included.
2. Power supply voltage for operating the push-button switch is 24V
3. 500kg type is also available in 490kg.

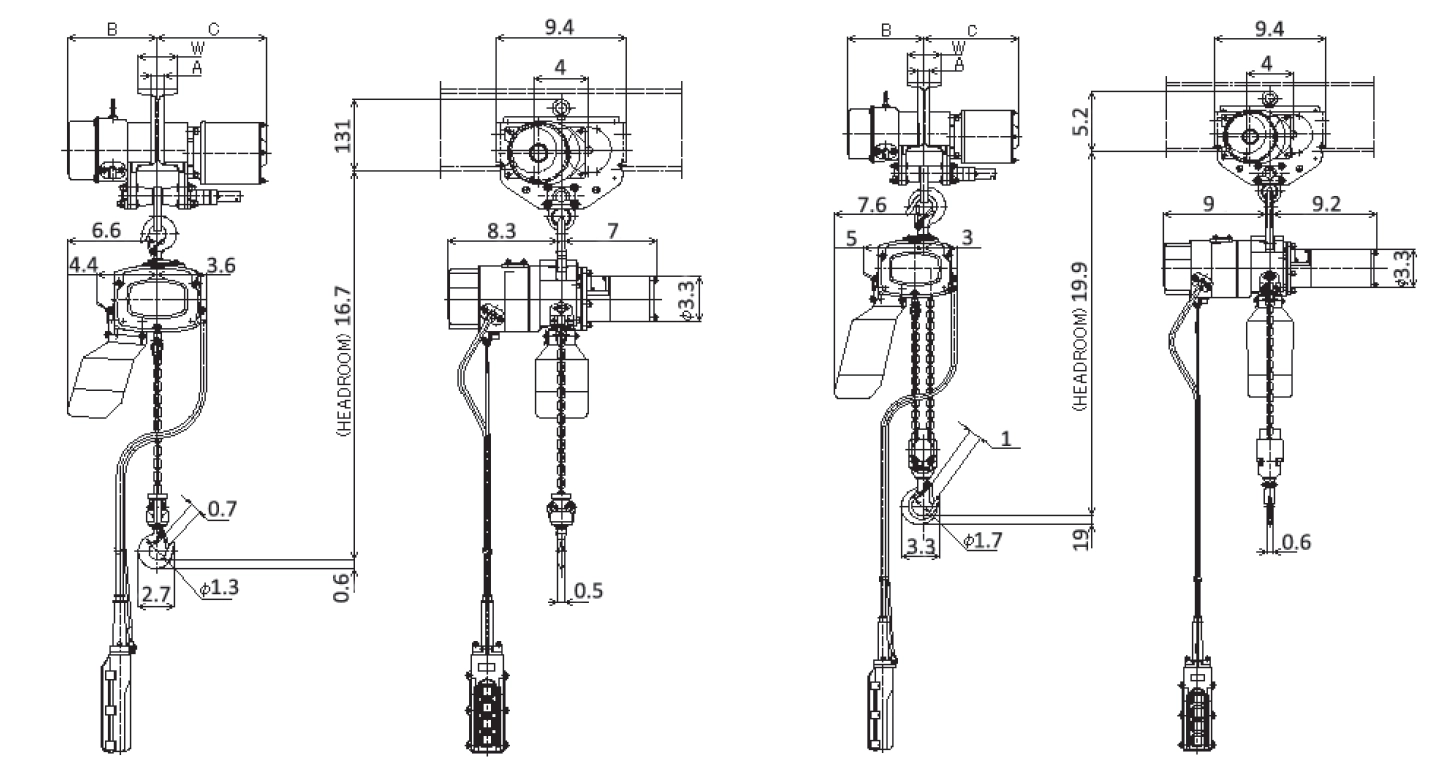

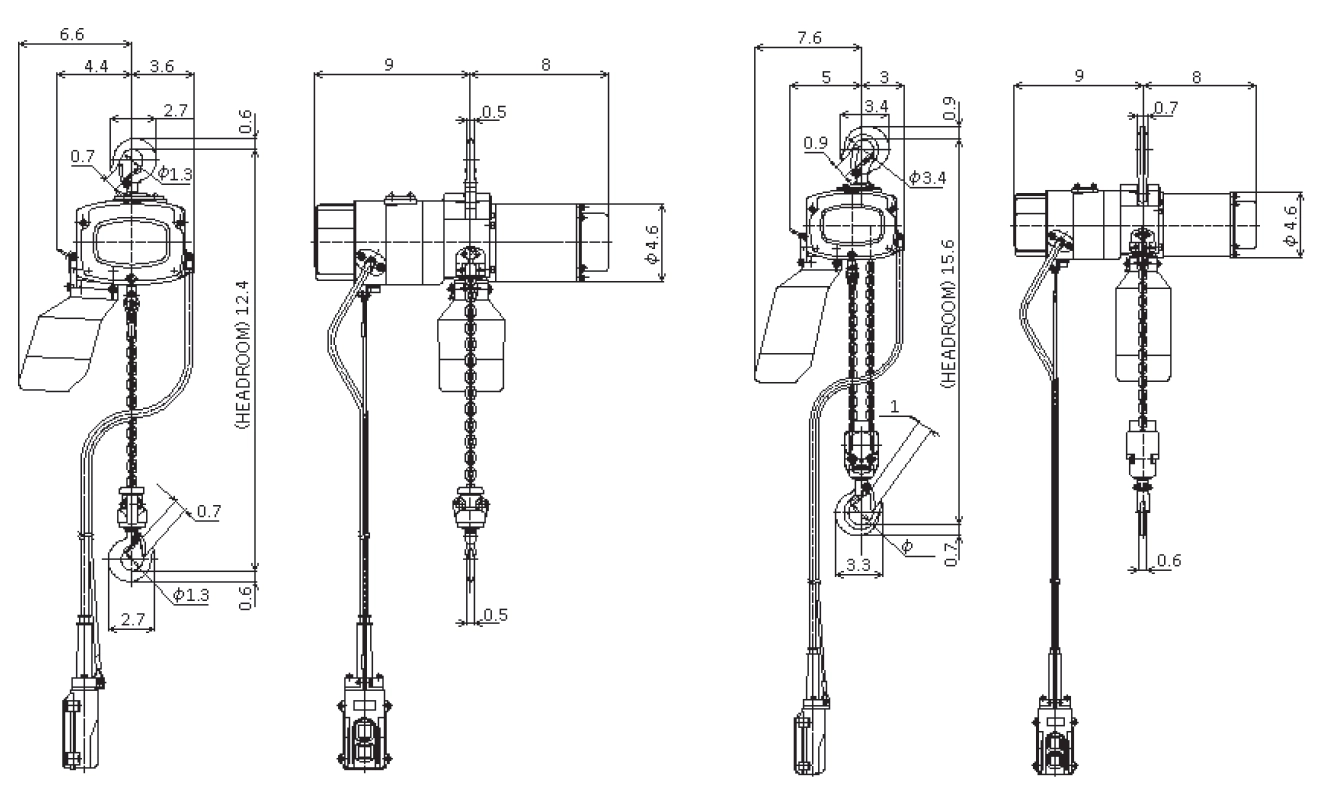

Note: Length A changes according to the power source used.

Motor Output A (IN)
Single Phase 300 watts 7
Single Phase 600 watts 9
Stock Number Rated Load (lbs) Rated Load (kg) Voltage (V) Headroom (in) Standard Lift (ft) Motor Output (KW) Lifting Speed (ft/min) Traverse Motor Output (KW) Traversing Spd. (ft/min): 50Hz/60Hz Applicable Traversing Rail Width (in) Min. Traversing Turning Radius (in) Min. Height of Traversing Rail (in) Net Weight (lbs)
SM-006 130 60 115V 16.77 10 0.3 42 0.3 32 / 39 2.95 3.94 4.92 43.31 4.92 72
SVM-006 130 60 16.77 10 0.3 [3] [42] 0.3 32 / 39 43.31 4.92 73
SBM-006 130 60 16.77 10 0.3 L[16] H[42] 0.3 32 / 39 43.31 4.92 72
SM-01 220 100 16.77 10 0.3 42 0.3 32 / 39 43.31 4.92 72
SVM-01 220 100 16.77 10 0.3 [3] [42] 0.3 32 / 39 43.31 4.92 73
SBM-01 220 100 16.77 10 0.3 L[13] H[42] 0.3 32 / 39 43.31 4.92 72
SM-016 350 160 16.77 10 0.6 49 0.3 32 / 39 43.31 4.92 72
SVM-016 350 160 16.77 10 0.6 [3] [49] 0.3 32 / 39 43.31 4.92 77
SBM-016 350 160 16.77 10 0.6 L[16] H[49] 0.3 32 / 39 43.31 4.92 76
SM-025 550 250 16.77 10 0.6 32 0.3 32 / 39 43.31 4.92 76
SVM-025 550 250 16.77 10 0.6 [3] [32] 0.3 32 / 39 43.31 4.92 77
SBM-025 550 250 16.77 10 0.6 L[13] H[32] 0.3 32 / 39 43.31 4.92 76
SM-050 1,100 500 20.31 10 0.6 16 0.3 32 / 39 43.31 4.92 84
SVM-050 1,100 500 20.31 10 0.6 [1.5] [16] 0.3 32 / 39 43.31 4.92 85
SBM-050 1,100 500 20.31 10 0.6 L[6] H[16] 0.3 32 / 39 43.31 4.92 84

1. The minimum distance between hooks slightly differs according to the size of the applicable traverse trail.
2. The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
3. The power cord of 0.5m extending from the trolley (3-core; 1 pc. for earth) is supplied.

Note-1: Length A changes according to the power source used.

Motor Output A (IN)
Single Phase 300 watts 7
Single Phase 600 watts 9

Note-2: The B, C, E dimensions change according to the width of the applicable rail.

Rail Width D (in)
3 3.9 4.9
B 14.8 15.7 16.7
C 0.9 1.9 2.9
E 8.1 8.6 9.1

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
