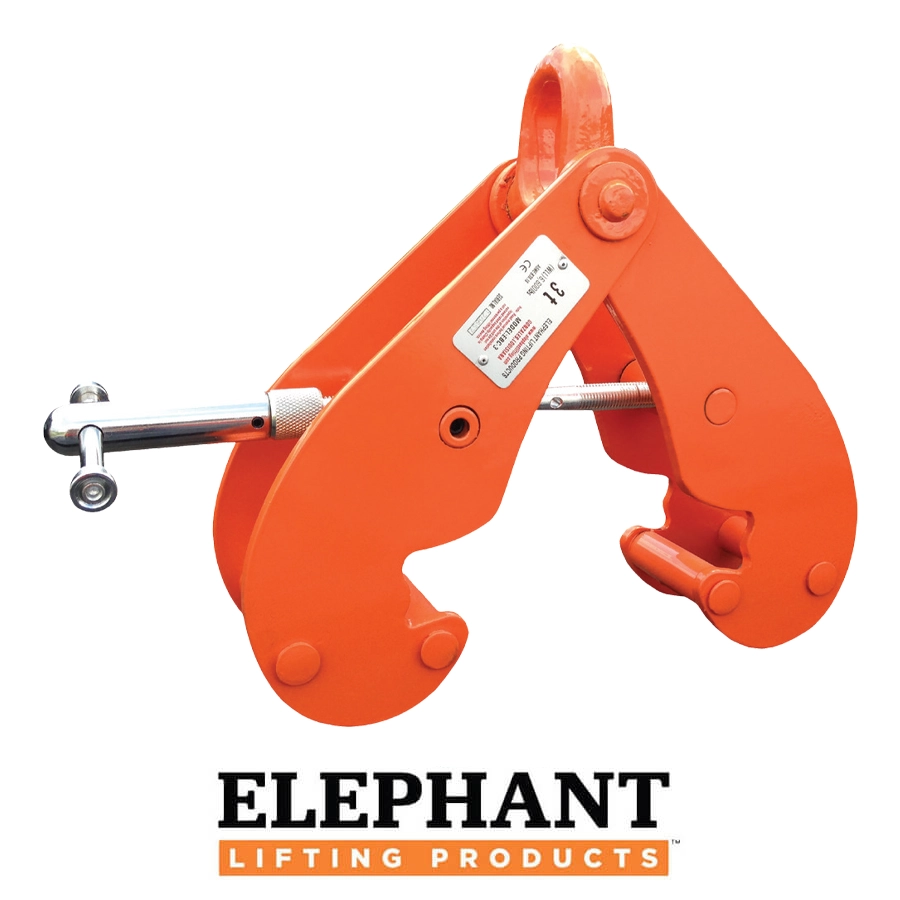

Elephant Eye Beam Clamp

Elephant Eye Beam Clamp
  • The eye beam clamp can be used as an anchor for various applications and for any type of construction.
  • The ‘eye’ shackle design assists the user in rigging, and the zinc plated clamp screw assembly allows for easy adjustment of the clamp.
  • This clamp features metric capacities that range from 1, 2, 3, 5, and 10 tons.
  • Load ratings are based upon 0 to 15° vertical lift.
  • Consult a certified rigger when in doubt, for rigging and placement of the clamps.

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Stock Number S.W.L. (LBS) S.W.L. (US ton) Weight (LBS)
EBC-1 2200 1.1 11
EBC-2 4400 2.2 12
EBC-3 6600 3.3 24
EBC-5 11000 5.5 30
EBC-10 22000 11 45

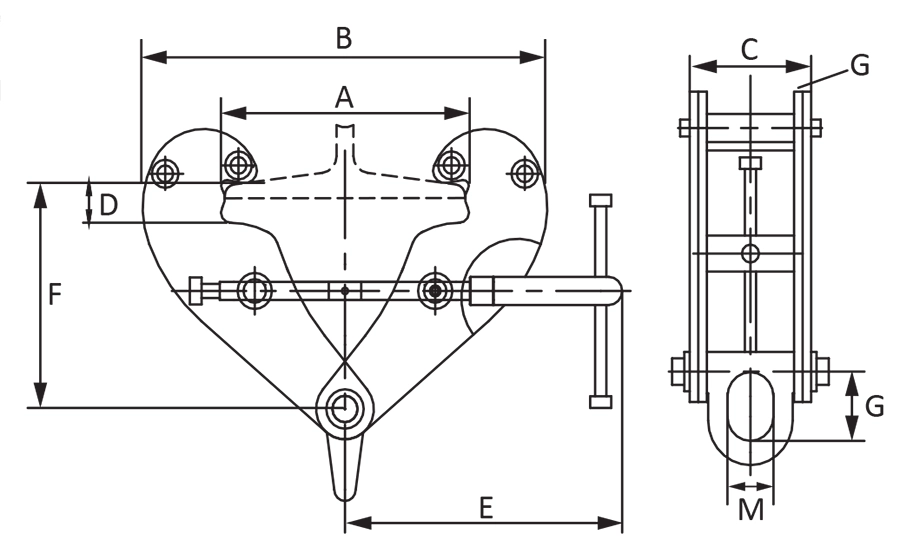

Stock Number DIMENSIONS (IN)
A B C D E F G M
EBC-1 3.1-9.6 7.2-14.7 2.6 0.7 8.3 4-6.4 0.98 1.10
EBC-2 3.1-9.6 7.2-14.7 2.9 0.7 8.3 4-6.4 0.98 1.1
EBC-3 3.5-12.2 9.4-20.4 4.1 1.1 10.2 5.3-8.8 1.77 1.17
EBC-5 3.5-12.2 9.4-20.4 4.4 1.1 10.2 5.3-8.8 1.77 1.7
EBC-10 3.5-11.8 9.4-20.4 4.7 1.1 11 6.2-9 1.97 2.3

* Load ratings are based upon 0 to 15° vertical lift.
* Consult a certified rigger when in doubt, for rigging and placement of the clamps

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
