Elephant Jumbo Beam Clamp

Elephant Jumbo Beam Clamp
  • The Jumbo Beam Clamp is a great option for rigging applications.
  • This clamp line features a wide jaw opening for wide flange beams used throughout industry.
  • The JBC’s clamp screw assembly is also zinc plated.
  • This clamp series features metric capacities that range from 3, 5, 6, 10 and 16 tons.

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER S.W.L (LBS.) S.W.L. US TON BEAM WIDTH (IN.) MAX. PLATE THICKNESS (IN.) JAW TYPE WEIGHT (LBS)
JBC-3A 6600 3.3 3.00-7.48 0.55 Fixed 18
JBC-5A 11000 5.5 6.00-12.00 1.29 Fixed 33
JBC-5B 11000 5.5 3.00-7.48 1.29 Fixed 22
JBC-6 13200 6.6 8.00-18.00 1.29 Fixed 42
JBC-10 22000 11 8.00-18.00 1.29 Fixed 62
JBC-16A 35000 17.6 16.00-24.00 2.20 Fixed 135
JBC-16B 35000 17.6 8.00-18.00 2.20 Fixed 119
JBC-32 48000 24 12.00-30.00 2.20 Fixed 651

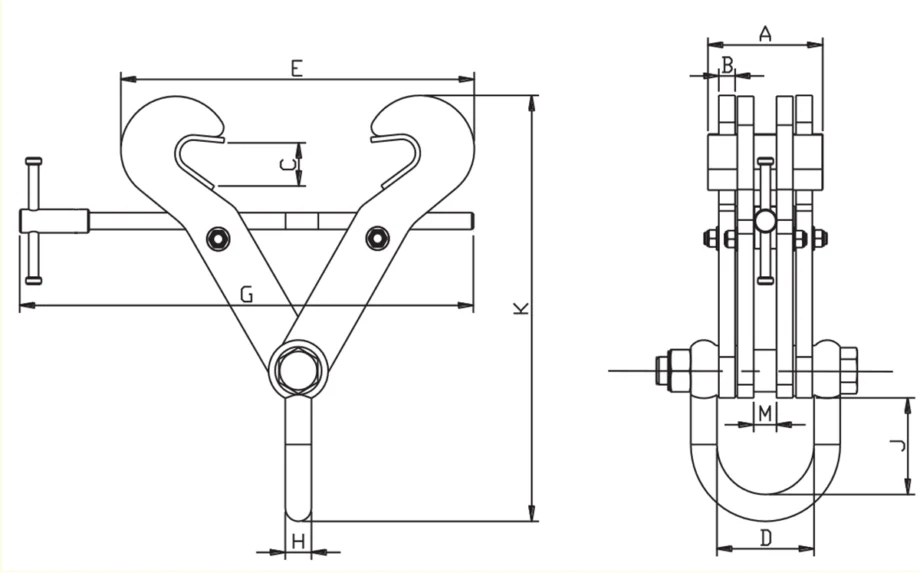

Stock Number DIMENSIONS (IN.)
A B C D E max G H J K min
JBC-3A 5.12 0.55 1.06 4.21 10.71 10.87 0.79 3.35 10.00
JBC-5A 5.50 0.55 1.81 4.80 17.72 16.10 0.98 3.90 12.56
JBC-5B 5.50 0.55 1.81 4.80 13.39 13.35 0.98 3.90 12.99
JBC-6 6.60 0.55 2.17 4.57 23.62 22.01 0.98 3.90 16.46
JBC-10 5.51 0.79 2.17 4.69 23.62 22.01 1.26 3.90 16.46
JBC-16A 6.89 0.79 3.00 5.12 24.02 31.89 1.77 7.87 25.75
JBC-16B 6.89 0.79 3.00 5.12 17.99 25.98 1.77 7.87 22.60
JBC-32 17.87 0.78 3.20 4.12 39.40 42.83 2.61 10.63 31.81

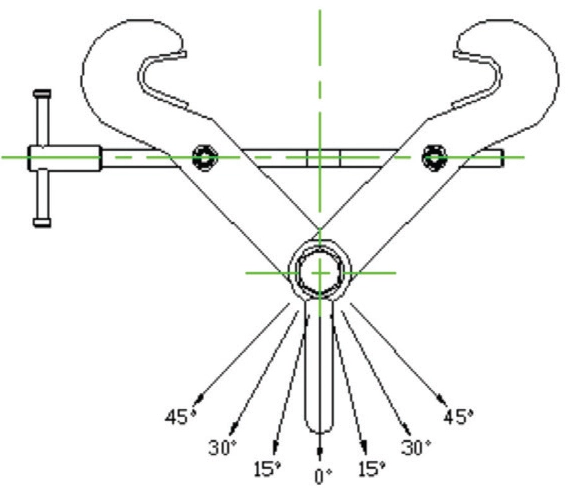

Chart only applies to overhead beam attachment. If clamps are being used to lift beams, this information is not applicable. Table applies to the listed models only. Stress calculations should be performed by the end user’s engineering dep. Reduction in working load limit when side loads are applied
Angle from vertical (degree) 0 0 to 15 15 to 30 30 to 45
Reduction Factor NIL 17.00% 34.00% 50.00%
Model WLL WLL WLL WLL
JBC-3A 3 ton 2.5 ton 2 ton 1.5 ton
JBC-5A 5 ton 4.1 ton 3.3 ton 2.5 ton
JBC-6 6 ton 5 ton 4 ton 3 ton
JBC-10 10 ton 8.3 ton 6.6 ton 5 ton
JBC-16B

JBC-16A

 16 ton 13.2 ton 10.5 ton 8 ton
JBC-32 32 ton 26.56 ton 21.12 ton 16 ton

* Warning: Clamps must be installed properly and fully tightened

* Always contact the manufacturer when in doubt



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
