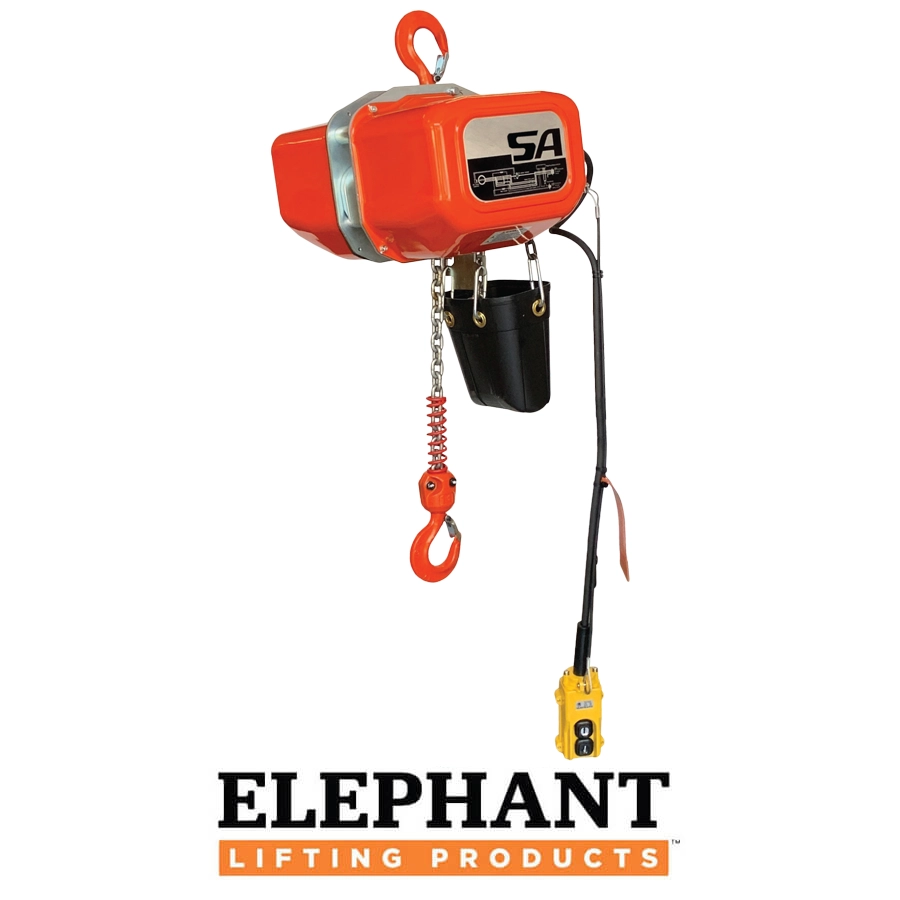

Elephant SA Type Electric Chain Hoist

Elephant SA Type Electric Chain Hoist
  • SA TYPE : 1 PHASE, 1 SPEED
    • Tough, Heavy-Duty Motor:
    • Reliable Electro-Magnetic DC Brake
    • Highly durable load chain manufactured in Japan by Elephant
    • Totally Enclosed Steel Plate Construction
    • Durable top and bottom hooks: Bottom hook with bearing smoothly swivels, 360°. In the event of an overload, the hook gradually elongates.  This elongation serves as an indicator to the end user, making them aware of the overload.
    • Chain Bucket: Hard plastic
    • Limit Switch: Standard feature
    • Ambient temperature range 14°~104° F
    • Ratings JIS/ISO M4, FEM 1AM, ASME H3 Motor, IP54 Hoist Protection, IP65 NEMA 4X Pendant Protection
    • Temperature Range -10° to 40° C,  14° to 104° F
    • CSA Compliant Hoist available upon request, excludes motorized trolley

EMAIL PAGE

EMAIL PAGE

WARNINGS & CAUTIONS

WARNINGS & CAUTIONS
Stock Number W.L.L. (lbs) W.L.L. (mt) Test Load (mt) Standard Lift (ft) Standard Push Button Cord Length (ft) Load Chain Dia. X Number of Falls Lifting Motor Output (H.P.) Lifting Speed (ft/min) Min. Distance H (in) Net Weight (lbs)
50Hz 60Hz
SA-0.25 550 0.25 0.312 10 8 6.3 X 1 0.61 23 27.5 21.85 95
SA-0.5 1,100 0.5 0.625 10 8 6.3 X 1 0.61 11.5 13.5 21.85 95
SA-1W 2,200 1 1.25 10 8 6.3 X 2 0.61 6 7 26.38 102
SA-1S 2,200 1 1.25 10 8 7.1 X 1 1.21 9 10 23.2 136
SA-2 4,400 2 2.5 10 8 7.1 X 2 1.21 4 5 29.33 152
SA-3 6,600 3 3.75 10 8 7.1 X 3 1.21 3 3.3 33.07 191
SA-5 11,000 5 6.25 10 8 7.1 X 5 1.21 1.7 2 38.2 248

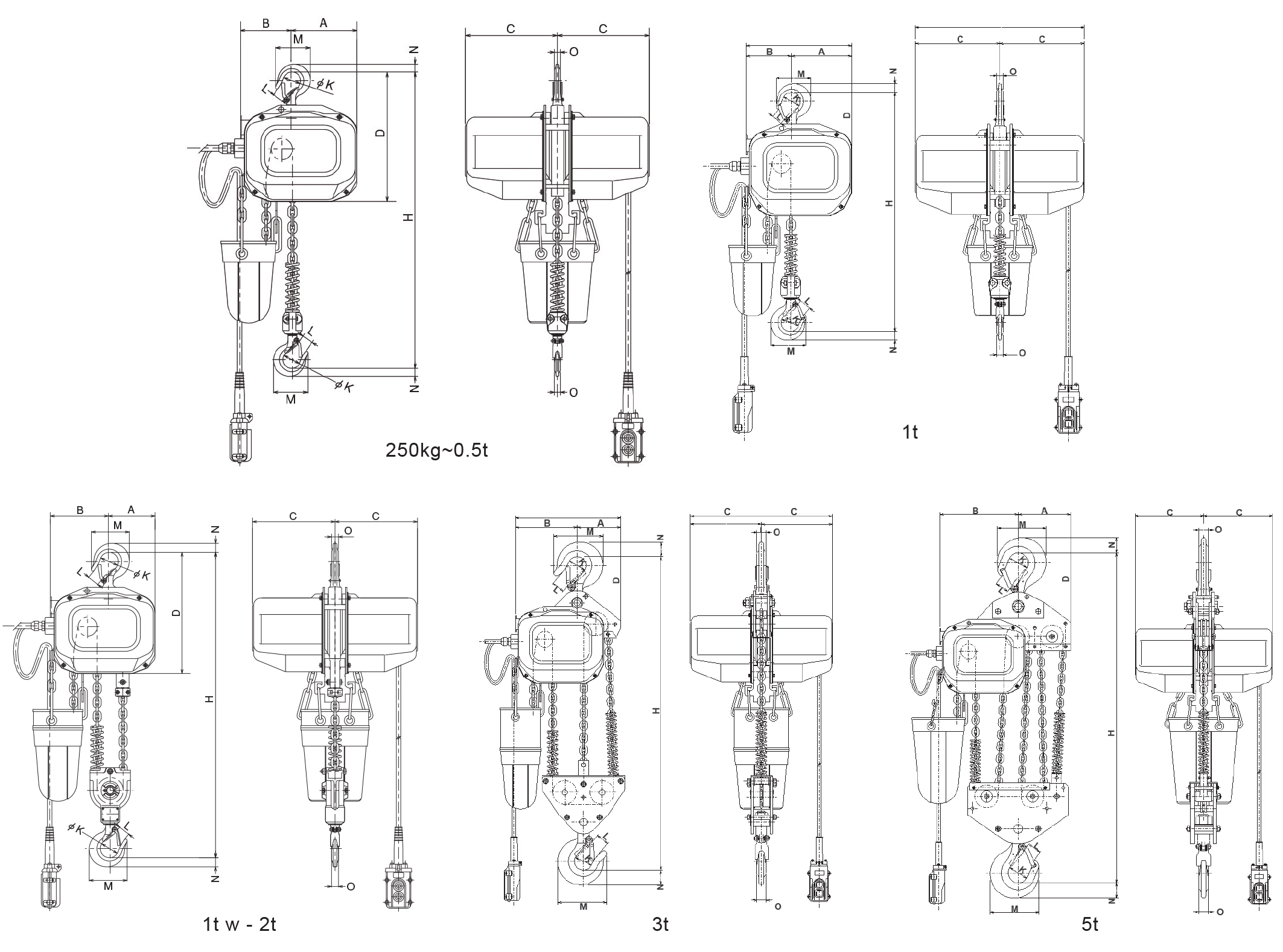

W.L.L. (lbs) W.L.L. (mt) A B C D K L M N O
550 0.25 6.34 4.88 8.82 12.24 1.69 1.04 3.31 0.75 0.55
1,100 0.5 6.34 4.88 8.82 12.24 1.69 1.04 3.31 0.75 0.55
2,200 1 5 6.22 8.82 12.97 1.97 1.22 4.06 0.98 0.75
2,200 1 6.7 5.04 9.4 5.04 1.96 1.22 3.86 0.98 0.75
4,400 2 5.24 6.5 9.4 6.5 2.56 1.5 5.33 1.38 1.02
6,600 3 5.82 8.19 9.4 16.8 2.36 1.7 6.5 1.93 1.26
11,000 5 7.2 10.74 9.4 19.2 2.76 1.85 6.69 2.08 1.4

Stock Number W.L.L. (lbs) W.L.L. (mt) Test Load (mt) Standard Lift (ft) Traversing Motor Output (H.P.) Traversing Speed (ft/min) Min. Distance H (in) Hook : Lug Traversing I-Beam Width (in) Trolley Min. Radius (in) Net Weight (lbs)
50Hz 60Hz
SAM-0.25 550 0.25 0.312 10 0.41 32 39 27.36 (23.62) 2.95 – 5.91 43.31 163
SAM-0.5 1,100 0.5 0.625 10 32 39 27.36 (23.62) 43.31 163
SAM-1 2,200 1 1.25 10 32 39 31.89 (27.76) 43.31 170
SAM-1S 2,200 1 1.25 10 32 39 28.74(24.61) 43.31 192

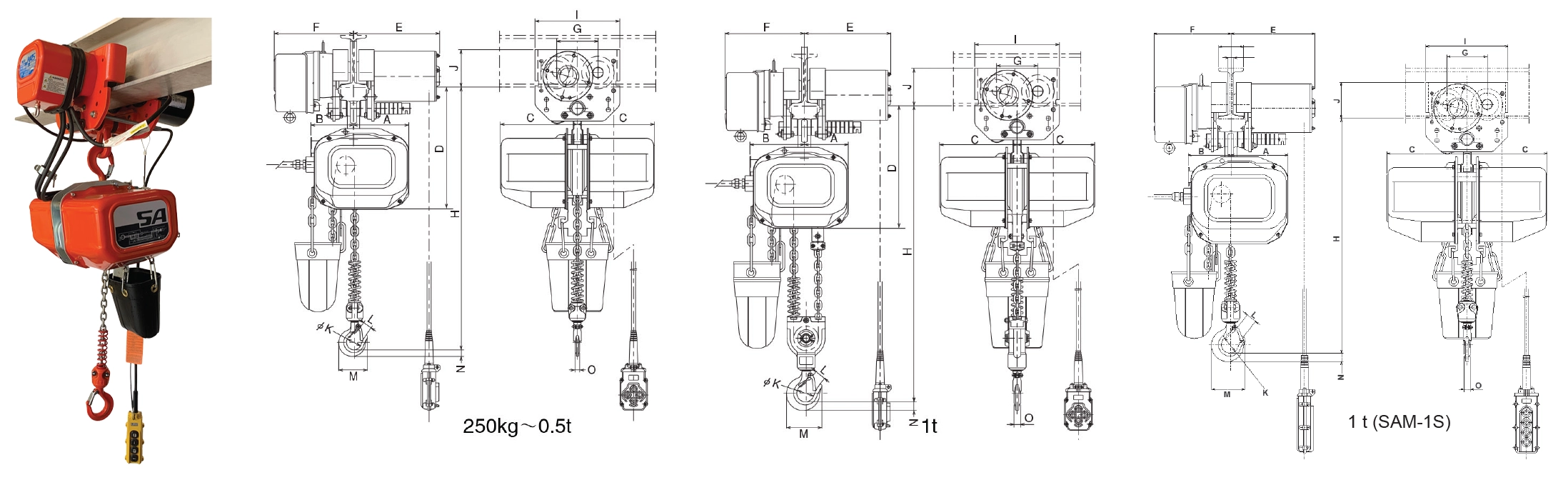

W.L.L. (lbs) W.L.L. (mt) A B C D E F G I J K L M N O P (Dia. of Wheel)
550 0.25 6.34 4.88 8.82 17.97 9.88 8.6 4.72 9.69 4.92 1.69 1.04 3.31 0.75 0.55 2.68
1,100 0.5 6.34 4.88 8.82 17.97 9.88 8.6 4.72 9.69 4.92 1.69 1.04 3.31 0.75 0.55 2.68
2,200 1 5 6.22 8.82 20.91 9.88 8.6 4.72 9.69 4.92 1.97 1.22 4.06 0.98 0.75 2.68
2,200S 1 6.69 5.04 9.41 19.25 9.88 8.6 4.72 9.69 4.92 1.97 1.22 4.06 0.98 0.75 2.68

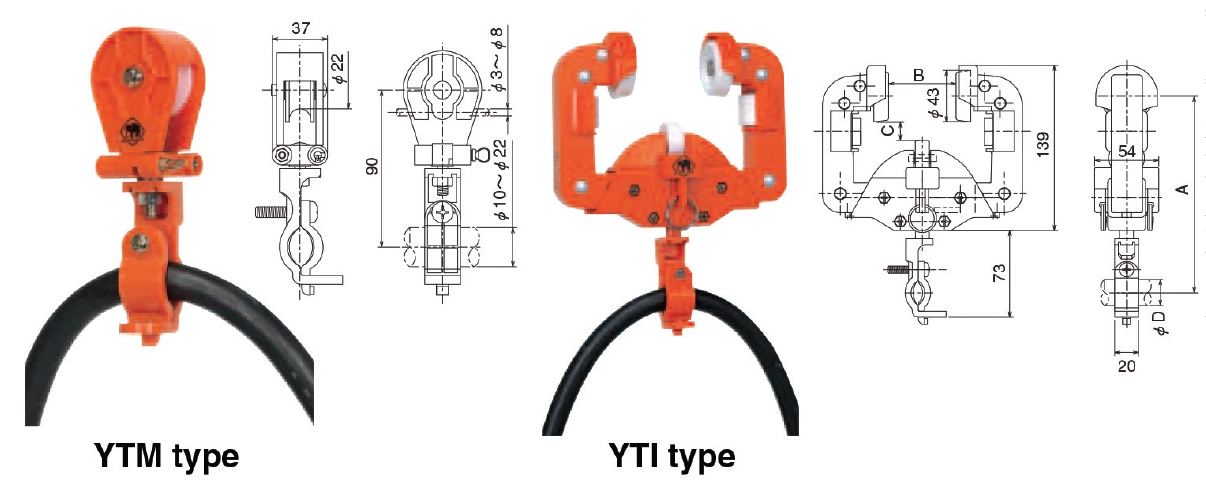

Stock Number I-Beam Width A B C D (Cable Dia.)
YTI-100 2.95 6.54 1.26 0.59 0.39 – 0.87
3.94 6.54 2.24 0.59 0.39 – 0.87
YTI-150 4.92 6.54 3.23 0.98 0.39 – 0.87
5.91 6.54 4.21 0.98 0.39 – 0.87

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
