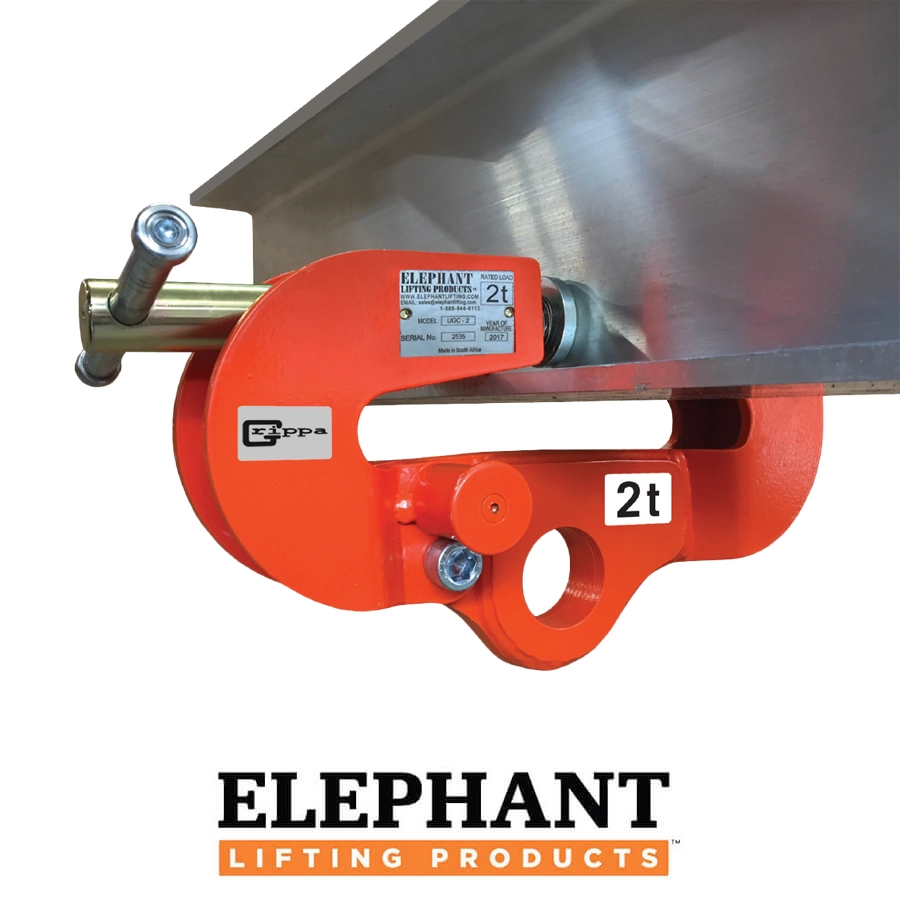

Elephant Universal Grippa Clamp

Elephant Universal Grippa Clamp
  • Designed for vertical & side load applications at full rated capacity
  • Developed for lifting, pulling, and as an anchor point
  • The raised eye design allows for a full 90° side pull from both sides
  • Low headroom concept
  • Can be rated for personnel tie-off, upon request
  • 4:1 safety factor
  • Individually Load tested to 2x the rated load

EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Stock Number S.W.L. (t) S.W.L. (Ton) Weight (LBS)
UGC-2 2 2.2 22
UGC-3 3 3.3 31
UGC-5 5 5.5 62
UGC-10 10 11 93
UGC-20 22 22 145

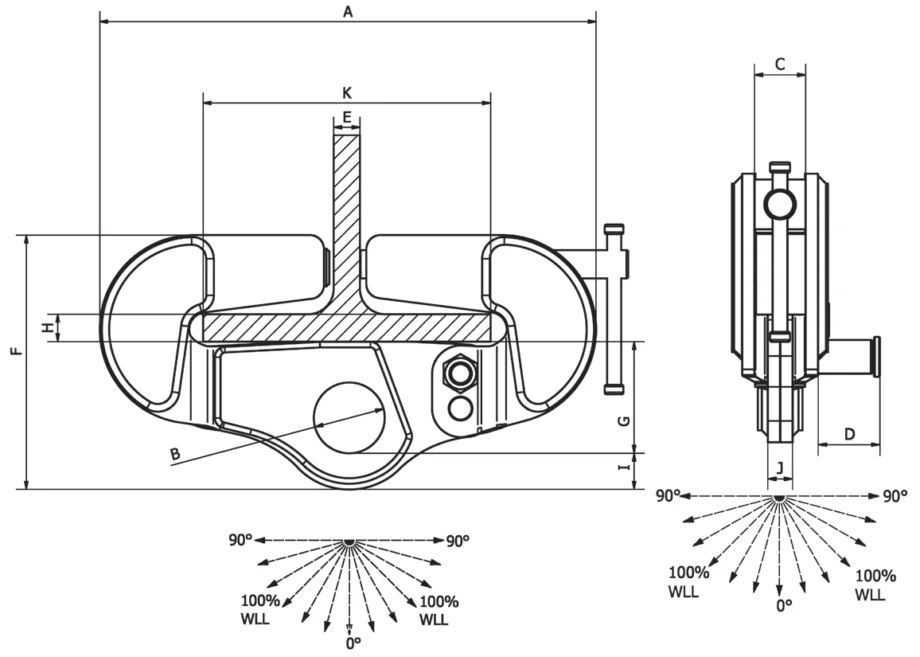

Stock Number DIMENSIONS
A Ø B C D E F G H I J K
UGC-2 14.2 2.0 2.0 2.0 1.3 8.2 3.6 1.0 0.9 0.6 4.9 to 8.0
UGC-3 15.4 2.7 2.0 2.0 1.3 9.0 3.9 1.0 1.1 0.8 4.9 to 8.0
UGC-5 20.7 3.0 2.0 2.0 1.3 10.6 4.7 1.0 1.5 1.0 4.9 to 12.00
UGC-10 20.7 3.0 2.0 4.0 1.3 10.7 4.7 1.0 1.5 2.0 4.9 to 12.00
UGC-20 27.6 4.7 3.7 * 1.6 * * 1.8 * 1.6 4.9 to 20.5

If the end user is solely using the clamp for hanging vertical loads under a beam, then a standard girder clamp is recommended. Reasoning is that in the event of a shock load, the UGC could slide into the radius of the web, potentially causing damage to the clamp heads and the beam.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
