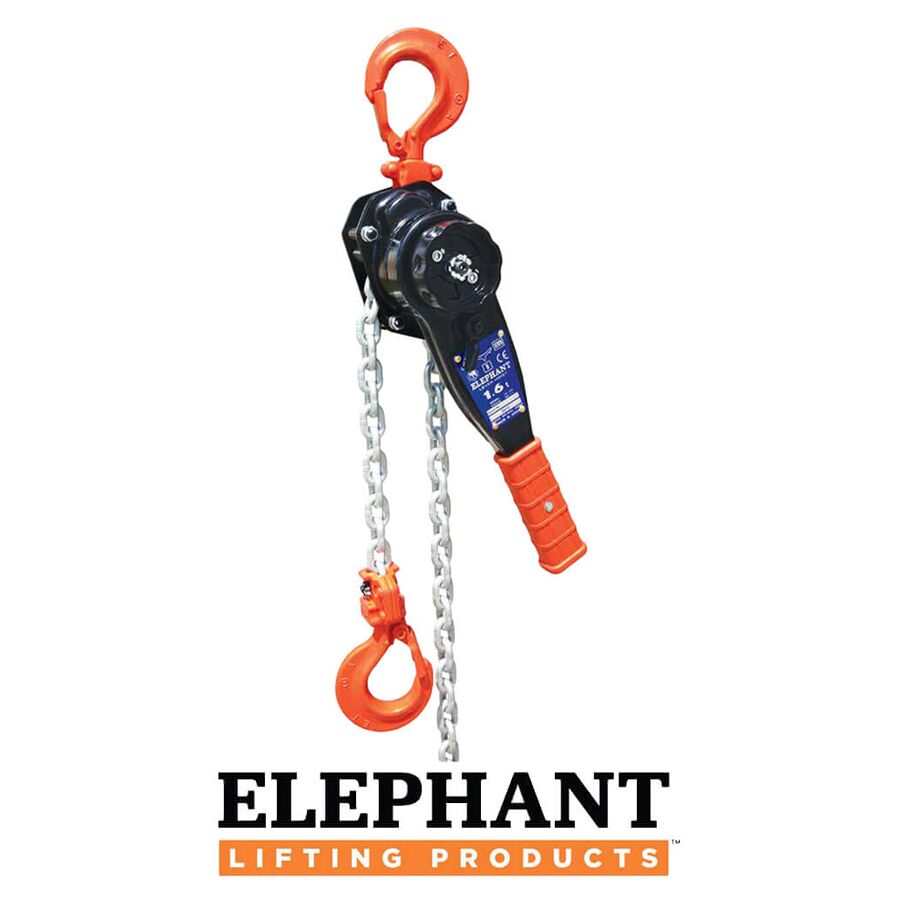

Elephant YA Lever Hoists

• Rounded lever design for smooth operation when placed against flat surfaces
• Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
• True one touch free spooling, which automatically brakes when a load is applied
• Redesigned hooks with tip supporting safety latch
• Hoist body has an electro-deposited black finish for corrosion resistance


EMAIL PAGE

EMAIL PAGE


VIEW IN CATALOG

VIEW IN CATALOG


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

Model Capacity (lbs) Capacity (mt) Standard Lift (ft) Hand Effort to Lift Full Working Load (lbf) Dia. of Load Chain (mm) Net Weight (lbs) Load Chain Min Breaking Load Safety Factor
YA-50 1100 0.5 5 82 4.3 7 5.2+ 5.2
YA-80 1760 0.8 5 66 5.6 13 5.2+ 6.5
YA-100 2200 1 5 82 5.6 14 5.2+ 5.2
YA-160 3520 1.6 5 66 7.1 20 8.3+ 5.3
YA-320 7040 3.2 5 82 9 34 13.4+ 4.2
YA-630 13,860 6.3 5 84 9 x 2 59 26.8+ 4.3
YA-900 19,800 9 5 86 9 x 3 93 40.2+ 4.5
YA-1200 26,400 12 5 88 9 x 4 159 53.6+ 4.2

*Test Load is 150% of Rated Load

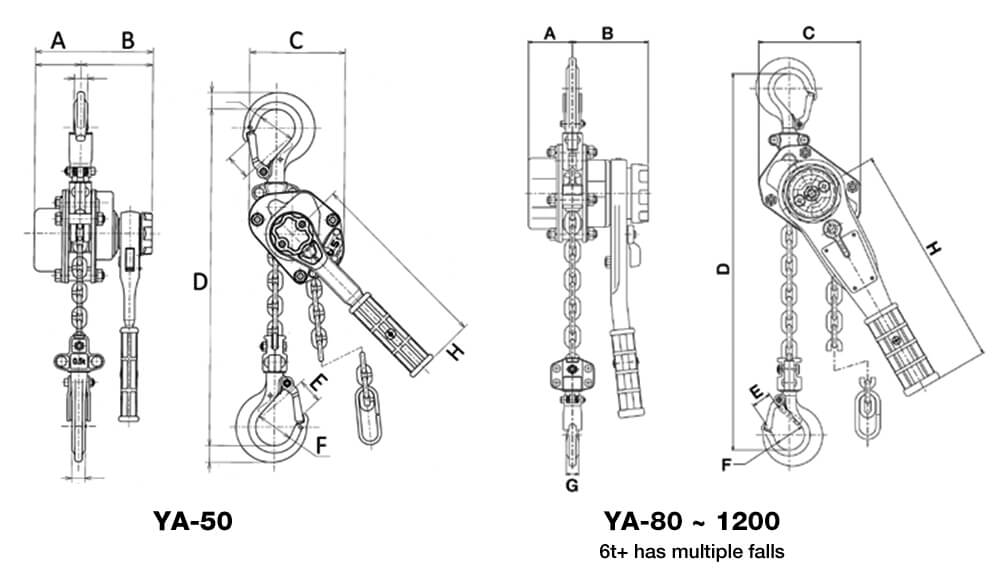

Model A B C D E F G H
YA-50 1.7 2.7 3.6 9.4 0.94 1.4 0.51 7.0
YA-80 2.1 3.6 4.8 11.4 0.91 1.4 0.59 10.6
YA-100 2.1 3.6 4.8 12.3 1.1 1.7 0.63 10.6
YA-160 2.5 3.9 5.4 13.9 1.2 1.7 0.83 12.2
YA-320 3.3 4.1 7.1 16.2 1.4 2.1 1.1 12.2
YA-630 3.3 4.1 9.3 22.2 1.9 2.8 1.3 12.2
YA-900 3.3 4.1 11.8 27.1 2.9 3.4 1.88 12.2
YA-1200 3.25 4.09 14.57 31.06 2.91 3.35 1.87 12.2

* Specifications & Dimensions are subject to change without notice

• Ratchet recovery of 16.5° for 0.8t~1t and 14° for 1.6t~12t
• Internal side plates have hardened steel bushings for excellent load sheave & pinion support
• Internal side plates, pinion, pawls, and pawl springs have an electrodeposited coating that helps resist corrosion
• Internal disc hub and ratchet wheel are nickel plated for corrosion resistance
• Suitable for operation within a -4° ~ 140° F temperature range

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
