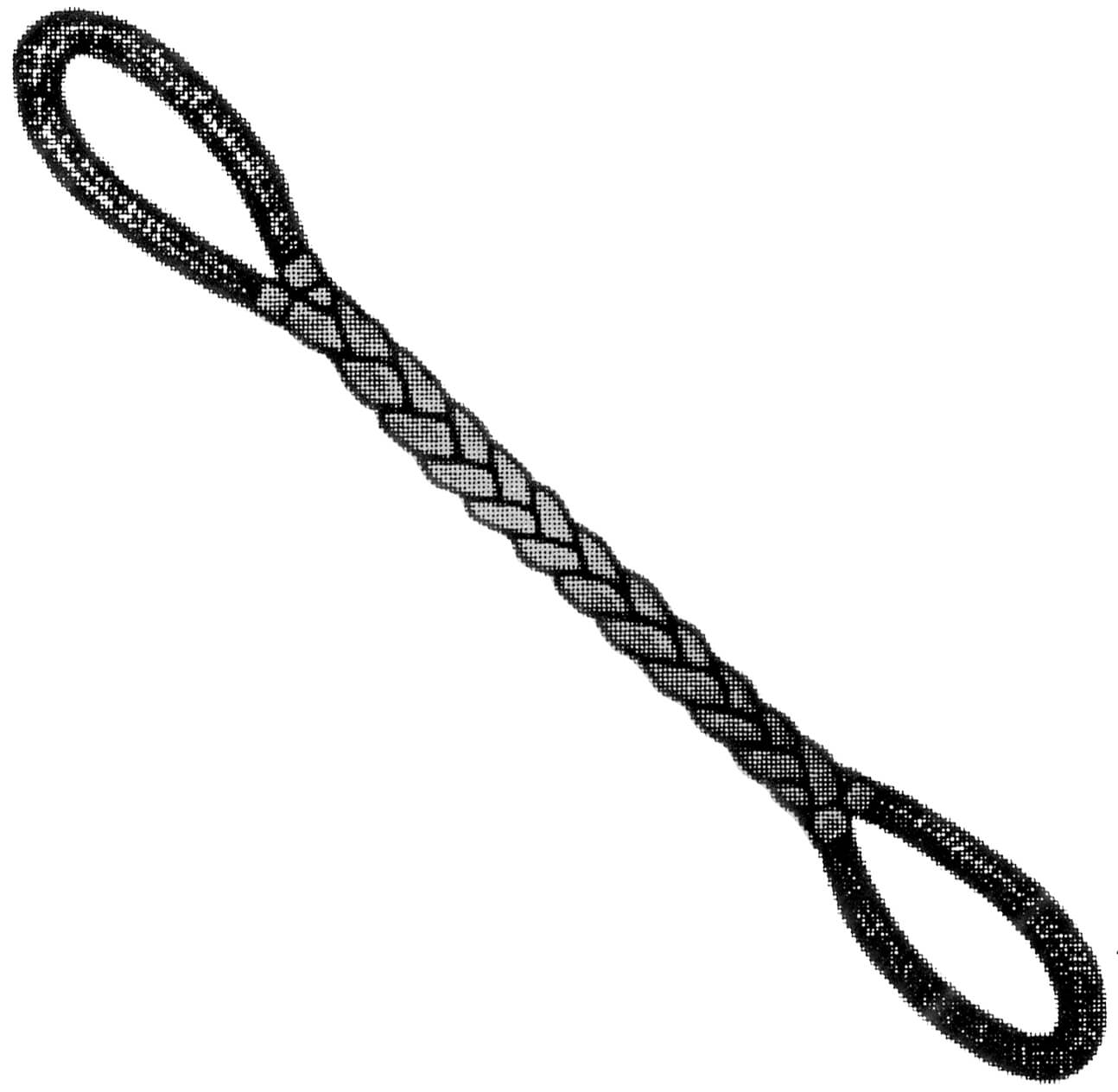

| 6 PART FLAT BRAID | |||||||
|---|---|---|---|---|---|---|---|
| CERTEX Cat. Ref. No | Type/Size | Std. Color | Approx. Width/Inch | Approx. Wt./Ft. | Rated Capacities | ||
| Vertical | Choker | Basket | |||||
| CX08-0049 | B6URS1 | PURPLE | 2.5 | 1.0 | 6,700 | 5,300 | 13,400 |
| CX08-0050 | B6URS2 | GREEN | 3.0 | 1.3 | 13,500 | 10,800 | 27,000 |
| CX08-0051 | B6URS3 | YELLOW | 3.25 | 1.7 | 21,400 | 17,100 | 42,800 |
| CX08-0052 | B6URS4 | TAN | 3.75 | 2.0 | 27,000 | 21,600 | 54,000 |
| CX08-0053 | B6URS5 | RED | 4.0 | 2.8 | 33,600 | 26,800 | 67,200 |
| CX08-0054 | B6URS6 | WHITE | 5.0 | 3.4 | 42,800 | 34,200 | 85,600 |
| CX08-0055 | B6URS7 | BLUE | 6.5 | 4.0 | 54,000 | 43,200 | 108,000 |
| CX08-0056 | B6URS8 | ORANGE | 7.5 | 4.5 | 63,7000 | 50,960 | 127,400 |
| CX08-0057 | B6URS9 | ORANGE | 8.5 | 6.3 | 79,000 | 63,200 | 158,000 |
| CX08-0058 | B6URS10 | ORANGE | 10.0 | 8.5 | 102,000 | 81,600 | 204,000 |
| CX08-0059 | B6URS11 | ORANGE | 12.0 | 11.0 | 135,000 | 108,000 | 270,000 |
| CX08-0060 | B6URS12 | ORANGE | 13.0 | 14.0 | 168,000 | 134,000 | 336,000 |
| CX08-0061 | B6URS13 | ORANGE | 15.0 | 17.0 | 229,500 | 183,600 | 459,000 |
Each individual roundslings have double polyester covers.
Eyes are fully covered with Cordura buffer.
Other cover types available on request.
Available in lengths up to 40 feet.
| 8 PART FLAT BRAID | |||||||
|---|---|---|---|---|---|---|---|
| CERTEX Cat. Ref. No | Type/Size | Std. Color | Approx. Width/Inch | Approx. Wt./Ft. | Rated Capacities | ||
| Vertical | Choker | Basket | |||||
| CX08-0062 | B8URS1 | PURPLE | 3.0 | 1.3 | 9,000 | 7,200 | 18,000 |
| CX08-0063 | B8URS2 | GREEN | 3.5 | 1.6 | 18,000 | 14,400 | 36,000 |
| CX08-0064 | B8URS3 | YELLOW | 4.0 | 2.3 | 28,500 | 22,800 | 57,000 |
| CX08-0065 | B8URS4 | TAN | 4.5 | 2.8 | 36,000 | 28,800 | 72,000 |
| CX08-0066 | B8URS5 | RED | 5.0 | 3.7 | 44,800 | 35,800 | 89,600 |
| CX08-0067 | B8URS6 | WHITE | 5.7 | 4.3 | 57,000 | 45,600 | 114,000 |
| CX08-0068 | B8URS7 | BLUE | 7.0 | 5.2 | 72,000 | 57,600 | 144,000 |
| CX08-0069 | B8URS8 | ORANGE | 8.0 | 6.0 | 85,000 | 68,000 | 170,000 |
| CX08-0070 | B8URS9 | ORANGE | 9.0 | 8.0 | 105,400 | 84,320 | 210,800 |
| CX08-0071 | B8URS10 | ORANGE | 11.0 | 11.2 | 136,000 | 108,800 | 272,000 |
| CX08-0072 | B8URS11 | ORANGE | 12.5 | 14.5 | 180,200 | 144,160 | 360,400 |
| CX08-0073 | B8URS12 | ORANGE | 13.5 | 18.4 | 224,500 | 179,600 | 449,000 |
| CX08-0074 | B8URS13 | ORANGE | 15.5 | 23.0 | 306,000 | 244,800 | 612,000 |
Each individual roundslings have double polyester covers.
Eyes are fully covered with Cordura buffer.
Other cover types available on request.
Available in lengths up to 40 feet.
