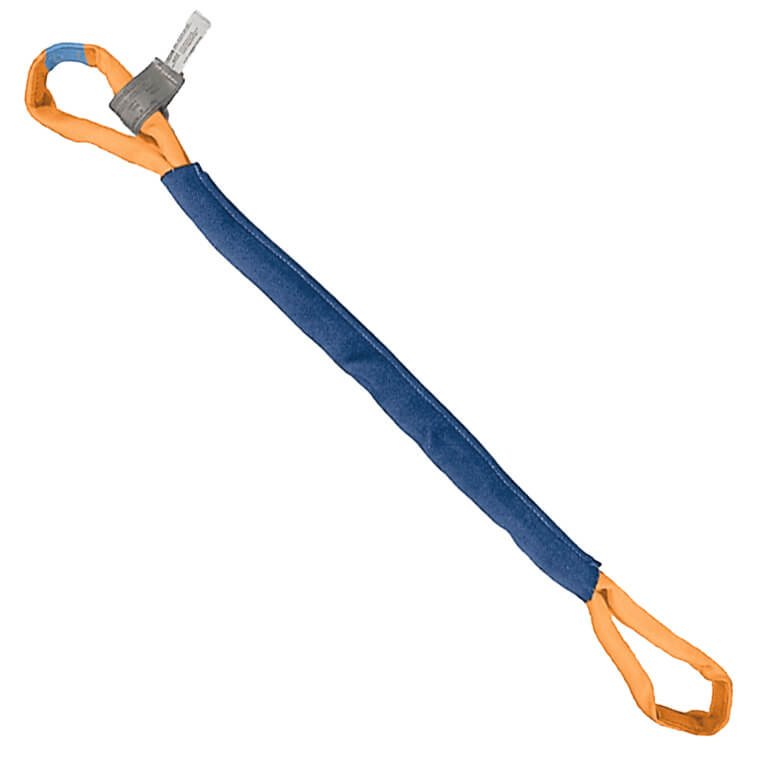

Standard Roundslings can be formed into eye and type slings by adding a cover sleeve over the middle part of the Roundsling. The Eye and Eye Roundslings are available in the same sizes and colors as standard Roundslings.*
| CERTEX Cat. Ref. No. | Type/Size | Std. Color | Approx. Dia./Inch | Approx. Wt./Foot |
|---|---|---|---|---|
| CX08-0023 | EEURS 1 | PURPLE | 2.25 | 0.40 |
| CX08-0024 | EEURS 2 | GREEN | 2.50 | 0.50 |
| CX08-0025 | EEURS 3 | YELLOW | 2.50 | 0.60 |
| CX08-0026 | EEURS 4 | TAN | 3.25 | 0.70 |
| CX08-0027 | EEURS 5 | RED | 3.50 | 0.85 |
| CX08-0028 | EEURS 6 | WHITE | 3.50 | 1.10 |
| CX08-0029 | EEURS 7 | BLUE | 4.25 | 1.40 |
| CX08-0030 | EEURS 8 | ORANGE | 5.00 | 1.85 |
| CX08-0031 | EEURS 9 | ORANGE | 6.50 | 2.50 |
| CX08-0032 | EEURS 10 | ORANGE | 8.50 | 3.20 |
| CX08-0033 | EEURS 11 | ORANGE | 10.00 | 4.00 |
| CX08-0034 | EEURS 12 | ORANGE | 11.50 | 5.00 |
| CX08-0035 | EEURS 13 | ORANGE | 14.00 | 6.30 |
* Available with different body coverings depending on service requirements
Rated capacities are same as endless type
Standard eye sizes: 1 – 2 = 6 inches
3 – 6 = 9 inches; 7 – 9 = 12 inches
10 – 13 = 18 inches
All measurements and weights are for pull to pull.
Available in lengths up to 40’.
