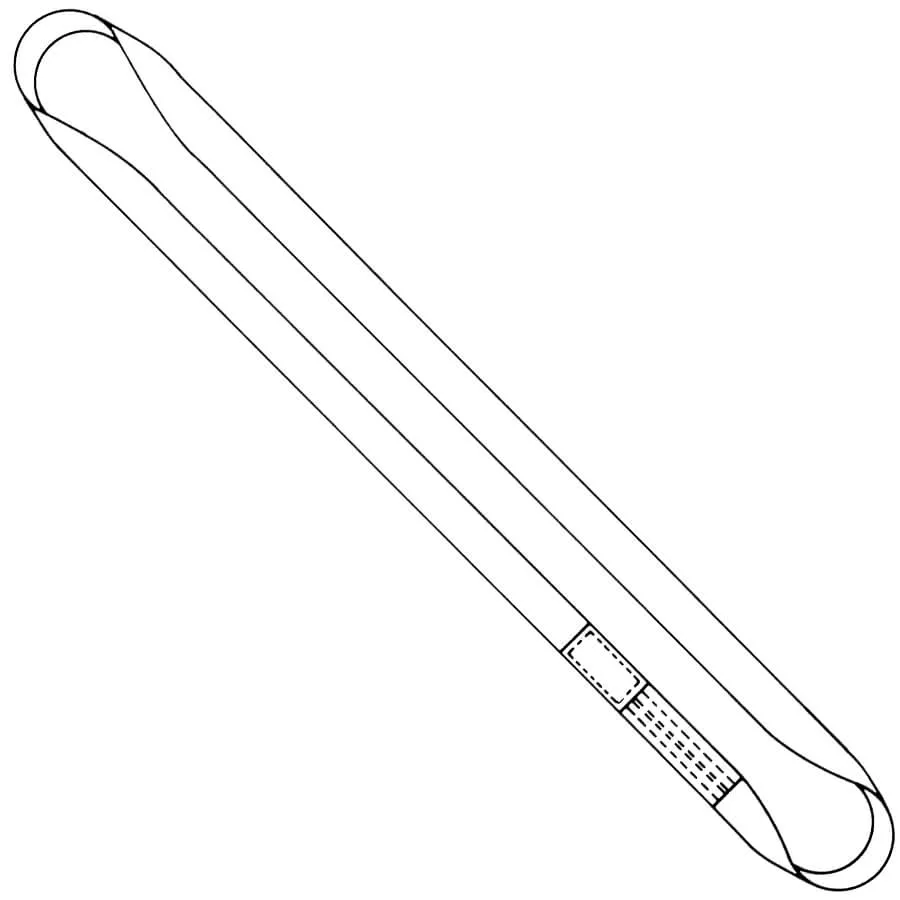

Endless Type 5
- 1 & 2 Ply
- 3 & 4 Ply
- dimensional reference (1 & 2 Ply Slings)
- dimensional reference (3 & 4 Ply Slings)
- Tab
RATED CAPACITIES (POUNDS)*
| CERTEX Cat. Ref. No. | Type | Width | Vertical | Choker | Basket |
|---|---|---|---|---|---|
| CX07-0183 | CEN1-91 | 1” | 3200 | 2500 | 6400 |
| CX07-0184 | CEN2-91 | 1” | 6400 | 5100 | 12800 |
| CX07-0185 | CEN1-K | 1 3/4” | 3200 | 2600 | 6400 |
| CX07-0186 | CEN2-K | 1 3/4” | 6150 | 5000 | 12300 |
| CX07-0187 | CEN1-H | 1 3/4” | 4800 | 3840 | 9600 |
| CX07-0188 | CEN2-H | 1 3/4” | 9600 | 7600 | 19200 |
| CX07-0191 | CEN1-92 | 2” | 6200 | 5000 | 12400 |
| CX07-0192 | CEN2-92 | 2” | 12400 | 9900 | 24800 |
| CX07-0195 | CEN1-93 | 3” | 9400 | 7500 | 18800 |
| CX07-0196 | CEN2-93 | 3” | 18800 | 15000 | 37600 |
| CX07-0199 | CEN1-94 | 4” | 12400 | 9900 | 24800 |
| CX07-0200 | CEN2-94 | 4” | 22000 | 16500 | 44000 |
| CX07-0201 | CEN1-95 | 5” | 15600 | 12500 | 31200 |
| CX07-0202 | CEN2-95 | 5” | 31200 | 25000 | 62400 |
| CX07-0205 | CEN1-96 | 6” | 18600 | 14900 | 37200 |
| CX07-0206 | CEN2-96 | 6” | 33000 | 24750 | 66000 |
| CX07-0207 | CEN1-98 | 8” | 21150 | 15900 | 42300 |
| CX07-0208 | CEN2-98 | 8” | 42350 | 31200 | 84700 |
| CX07-0209 | CEN1-910 | 10” | 26450 | 19850 | 52900 |
| CX07-0210 | CEN2-910 | 10” | 52900 | 39700 | 105800 |
| CX07-0211 | CEN1-912 | 12” | 31750 | 23800 | 63750 |
| CX07-0212 | CEN2-912 | 12” | 63500 | 47600 | 107000 |
* Rated loads are based on untapered slings. Folding or bunching which occurs when used with shackles, hooks or other applications will reduce rated loads.
Consult the manufacturer.
Capacities shown represent minimum values. For actual rated capacities consult your local CERTEX branch.
RATED CAPACITIES (POUNDS)*
| CERTEX Cat. Ref. No. | Type | Width | Vertical | Choker | Basket |
|---|---|---|---|---|---|
| CX07-0214 | CEN4-61 | 1” | 7600 | 6000 | 15200 |
| CX07-0216 | CEN4-91 | 1” | 11000 | 8800 | 22000 |
| CX07-0218 | CEN4-915 | 1 1/2” | 16400 | 13100 | 32800 |
| CX07-0220 | CEN4-K | 1 3/4” | 13300 | 10600 | 26600 |
| CX07-0222 | CEN4-H | 1 3/4” | 19200 | 15400 | 38400 |
| CX07-0226 | CEN4-92 | 2” | 21900 | 17500 | 43800 |
| CX07-0230 | CEN4-93 | 3” | 32900 | 26300 | 65800 |
| CX07-0234 | CEN4-94 | 4” | 40800 | 32600 | 81600 |
| CX07-0236 | CEN4-95 | 5” | 51000 | 40800 | 102000 |
| CX07-0240 | CEN4-96 | 6” | 61200 | 49000 | 122400 |
| CX07-0242 | CEN4-98 | 8” | 81600 | 65300 | 163200 |
| CX07-0244 | CEN4-910 | 10” | 101000 | 80800 | 202000 |
| CX07-0246 | CEN4-912 | 12” | 121800 | 97400 | 243600 |
* Rated loads are for slings without tapered eyes. Folding or bunching which occurs when used with shackles, hooks or other applications will reduce the rated load.
Capacities shown represent minimum values. For actual rated capacities consult your local CERTEX branch.
