Endless Universal Towslings

Endless Universal Towslings

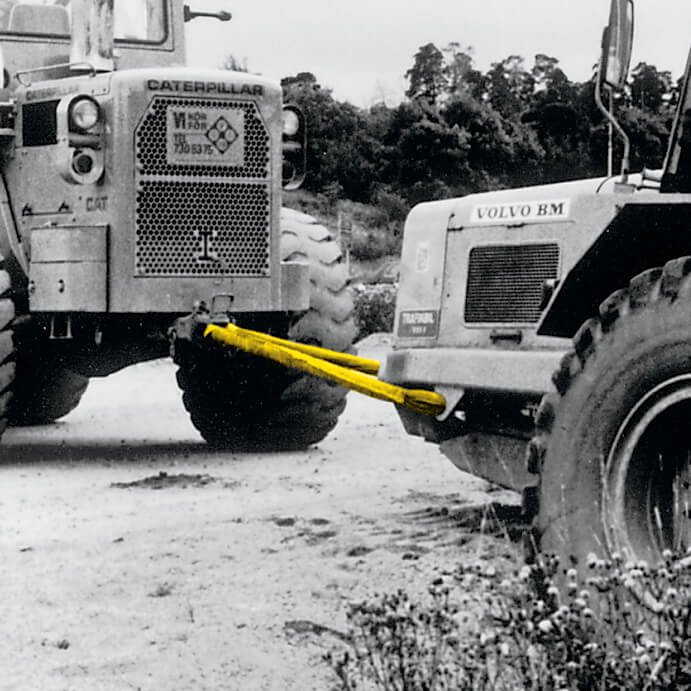

The Universal Towsling, for use with light and heavy equipment, are far superior to commonly used towlines. These towslings are very similar to our polyester roundslings and manufactured to the same high quality specifications as our patented product with the additions of reinforced eyes and a two foot sliding sleeve on the body of the sling for use in a V-type hitch. These slings are extremely light weight for their ratings and are safer than conventional towslings, as they will not snap abruptly and recoil when overloaded. Universal’s Towslings are not affected by water, salt, or petroleum products which are commonly found around these types of applications. The towslings are rated with a maximum loading pressure and are not intended for overhead lifting applications.

Types Available — Standard lengths of 20 ft. Other lengths on request.

CERTEX Cat. Ref. No. Type/Size Rating Approx. Weight
CX08-0036 UTS1-6T 2 tons 10 lbs.
CX08-0037 UTS2-12T 4 tons 12 lbs.
CX08-0038 UTS3-20T 6.6 tons 16 lbs.
CX08-0039 UTS4-25T 8.5 tons 18 lbs.
CX08-0040 UTS5-32T 11.7 tons 22 lbs.
CX08-0041 UTS6-42T 14.0 tons 26 lbs.
CX08-0042 UTS7-52T 17.5 tons 32 lbs.
CX08-0043 UTS8-62T 20.6 tons 40 lbs.
CX08-0044 UTS9-77T 25.6 tons 53 lbs.
CX08-0045 UTS10-95T 31.6 tons 70 lbs.
CX08-0046 UTS11-125T 41.6 tons 85 lbs.
CX08-0047 UTS12-160T 53 tons 110 lbs.
CX08-0048 UTS13-200T 66.6 tons 135 lbs.

WARNING: The specification ratings are maximum load pressures that may be applied to new towslings under ideal test conditions over four inch round pin diameters at each end of the towsling without causing damage to the towsling. Smaller pin diameters, sharp corners or sharp edges exposed to the towsling, and shock loading (jerking of the towsling under load) can greatly reduce the maximum load pressure ratings. Check with the manufacturer for your specific application.

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
