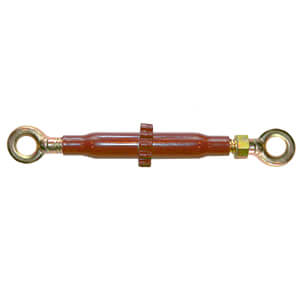

GOLD-TIP® Eye-Eye Removable Handle Load Binder Body

GOLD-TIP® Eye-Eye Removable Handle Load Binder Body

• One handle for different bodies
• Extra security with stabilizing jam nut for over-the-road transport (required)
• Removable handle limits theft
• Handles & barrels sold separately
• Warning: Always remove handle before transit
• Warning: Always tighten all jam nuts before transit


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

STOCK NUMBER TAKE-UP BARREL LENGTH SCREW DIAMETER END FITTING EYE DIAMETER/THROAT OPENING BEARING TO BEARING (CLOSED-OPEN) WORKING LOAD LIMIT (LBS.) PROOF LOAD LIMIT (LBS.) WEIGHT (LBS.)
GT13000EEBODY 8″ 10″ 1″ Eye-Eye 1.06″ 14″ – 22″ 13,000 26,000 6



WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
