Twisted Eye & Eye Web Slings – Type 4
- 1 & 2 Ply
- 3 & 4 Ply
- dimensional reference (1 & 2 Ply Slings)

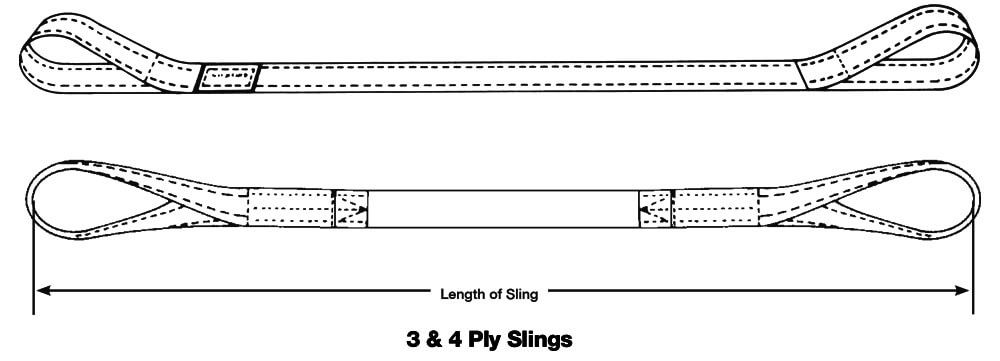

- dimensional reference (3 & 4 Ply Slings)
- Tab
RATED CAPACITIES (POUNDS)*
| CERTEX Cat. Ref. No. | Type | Width | Vertical | Choker | Basket |
|---|---|---|---|---|---|
| CX07-0117 | CEE1-91 | 1” | 1600 | 1200 | 3200 |
| CX07-0118 | CEE2-91 | 1” | 3100 | 2480 | 6200 |
| CX07-0119 | CEE1-k | 1 3/4” | 1900 | 1520 | 3000 |
| CX07-0120 | CEE2-k | 1 3/4” | 3800 | 3040 | 7600 |
| CX07-0121 | CEE1-H | 1 3/4” | 2700 | 2160 | 5400 |
| CX07-0122 | CEE2-H | 1 3/4” | 5400 | 4320 | 10800 |
| CX07-0125 | CEE1-92 | 2” | 3100 | 2500 | 6200 |
| CX07-0126 | CEE2-92 | 2” | 6200 | 5000 | 12400 |
| CX07-0129 | CEE1-93 | 3” | 4700 | 3700 | 9400 |
| CX07-0130 | CEE2-93 | 3” | 8800 | 7040 | 17600 |
| CX07-0133 | CEE1-94 | 4” | 6200 | 5000 | 12400 |
| CX07-0134 | CEE2-94 | 4” | 11000 | 8800 | 22000 |
| CX07-0135 | CEE1-95 | 5” | 7800 | 6200 | 15600 |
| CX07-0136 | CEE2-95 | 5” | 13700 | 10960 | 27400 |
| CX07-0139 | CEE1-96 | 6” | 9300 | 7400 | 18600 |
| CX07-0140 | CEE2-96 | 6” | 16500 | 13200 | 33000 |
| CX07-0141 | CEE1-98 | 8” | 11750 | 9400 | 21150 |
| CX07-0142 | CEE2-98 | 8” | 22750 | 18200 | 42350 |
| CX07-0143 | CEE1-910 | 10” | 14700 | 11760 | 26450 |
| CX07-0144 | CEE2-910 | 10” | 28400 | 22720 | 52900 |
| CX07-0145 | CEE1-912 | 12” | 17650 | 14120 | 31750 |
* Rated loads are for slings without tapered eyes. Folding or bunching which occurs when used with shackles, hooks or other applications will reduce the rated load. Capacities shown represent minimum values. For actual rated capacities consult your local CERTEX branch.
RATED CAPACITIES (POUNDS)*
| CERTEX Cat. Ref. No. | Type | Width | Vertical | Choker | Basket |
|---|---|---|---|---|---|
| CX07-0150 | CEE4-91 | 1” | 5500 | 4400 | 11000 |
| CX07-0152 | CEE4-915 | 1 1/2” | 8200 | 6560 | 16400 |
| CX07-0154 | CEE4-K | 1 3/4” | 6660 | 5320 | 13320 |
| CX07-0156 | CEE4-H | 1 3/4” | 9600 | 7680 | 19200 |
| CX07-0160 | CEE4-92 | 2” | 11000 | 8800 | 22000 |
| CX07-0164 | CEE4-93 | 3” | 16450 | 13160 | 32900 |
| CX07-0168 | CEE4-94 | 4” | 20400 | 16320 | 40800 |
| CX07-0170 | CEE4-95 | 5” | 25500 | 20400 | 51000 |
| CX07-0174 | CEE4-96 | 6” | 30600 | 24480 | 61200 |
| CX07-0176 | CEE4-98 | 8” | 40800 | 32640 | 81600 |
| CX07-0178 | CEE4-910 | 10” | 51000 | 40800 | 102000 |
| CX07-0180 | CEE4-912 | 12” | 61240 | 49000 | 122480 |
* Rated loads are for slings without tapered eyes. Folding or bunching which occurs when used with shackles, hooks or other applications will reduce the rated load. Capacities shown represent minimum values. For actual rated capacities consult your local CERTEX branch.
