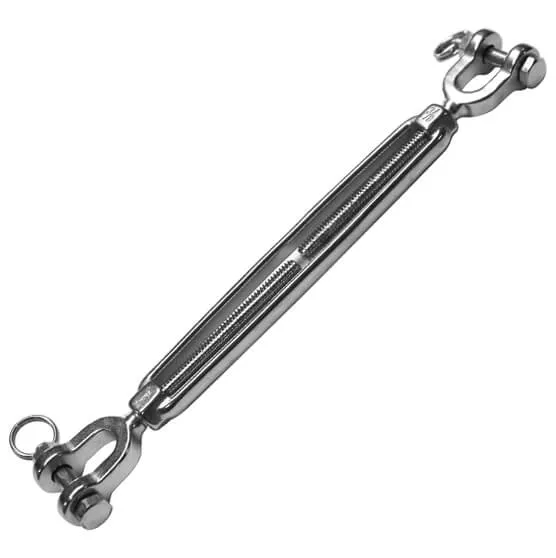

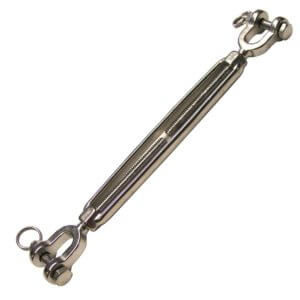

Jaw-Jaw Stainless Steel Turnbuckles
| SIZE | STOCK NUMBER | INSIDE WIDTH | CLOSE LENGTH | WEIGHT/PIECE (LBS.) | WORKING LOAD LIMIT |
|---|---|---|---|---|---|
| 1/4″ X 4″ | SSTB250JJ | 0.44” | 7-3/4” | 0.20 | 500 lbs. |
| 5/16″ X 4 1/2″ | SSTB312JJ | 0.50“ | 9“ | 0.37 | 800 lbs. |
| 3/8″ X 6″ | SSTB375JJ | 0.56” | 10-5/8” | 0.75 | 1,200 lbs. |
| 1/2″ X 6″ | SSTB500JJ | 0.64” | 12” | 1.50 | 2,200 lbs. |
| 5/8″ X 6″ | SSTB625JJ | 0.75” | 13-1/2” | 2.63 | 3,500 lbs. |
| 3/4″ X 6″ | SSTB750JJ | 1” | 15” | 3.75 | 5,200 lbs. |
| 1″ X 6″ | SSTB100X6JJ | 1.25“ | 18“ | 8.5 | 10,000 lbs. |
| 1″ X 12″ | SSTB100JJ | 1.25“ | 24” | 11.5 | 10,000 lbs. |
| 1 1/4″ X 12″ | SSTB1250JJ | 1.88” | 26-5/8” | 21.5 | 15,00 lbs. |
Stock Number Guide
| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
