FXC 550 Lb for Lifting Circular Items

FXC 550 Lb for Lifting Circular Items

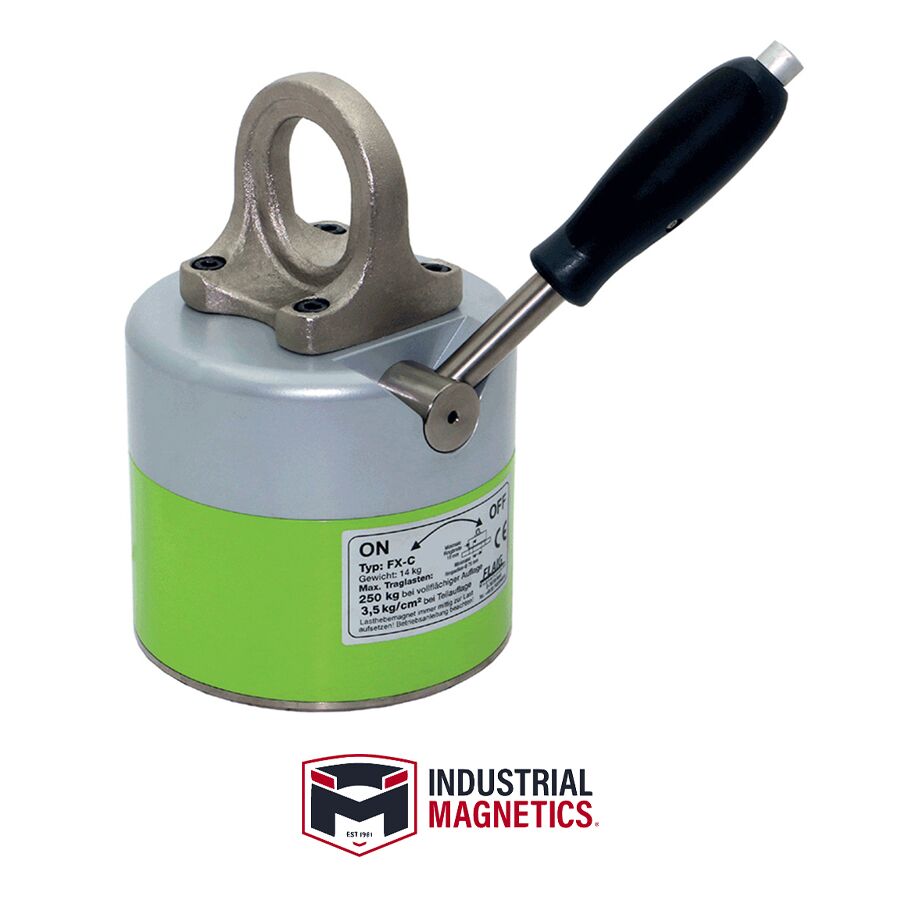

The FXC lift magnets have a round, multi-pole magnetic field designed for lifting flat, circular-shaped parts such as rings, sleeves, bearing housings, flange plates and end of billet/pipe/shaft pieces.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

CERTEX Cat. Ref. No. HEIGHT (IN) DIAMETER (IN) WEIGHT (LBS) BAIL HEIGHT (IN) BAIL THICKNESS (IN) BAIL WIDTH (IN) WLL (LBS) HANDLE LENGTH (IN) MAGNET DEPTH (IN) MAGNET DIAMETER (IN) MAGNET HEIGHT (IN)
FXC0550 9.5 6.3 33 2.4 0.6 2 550 7.5 5.8 6 5.7



  • On/Off, Rare-Earth Permanent Magnet
  • On/off handle only requires 90° rotation
  • and locks at both on/off positions
  • Durable, recessed metal name plates, not stickers
  • Corrosion resistant, plated-magnet surface
  • Heat resistant up to 180°F (82°C)
  • 3:1 Design Factor
  • 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
