FXV 880 Lb for Lifting Angle Iron or Hot Parts up to 482°F

FXV 880 Lb for Lifting Angle Iron or Hot Parts up to 482°F

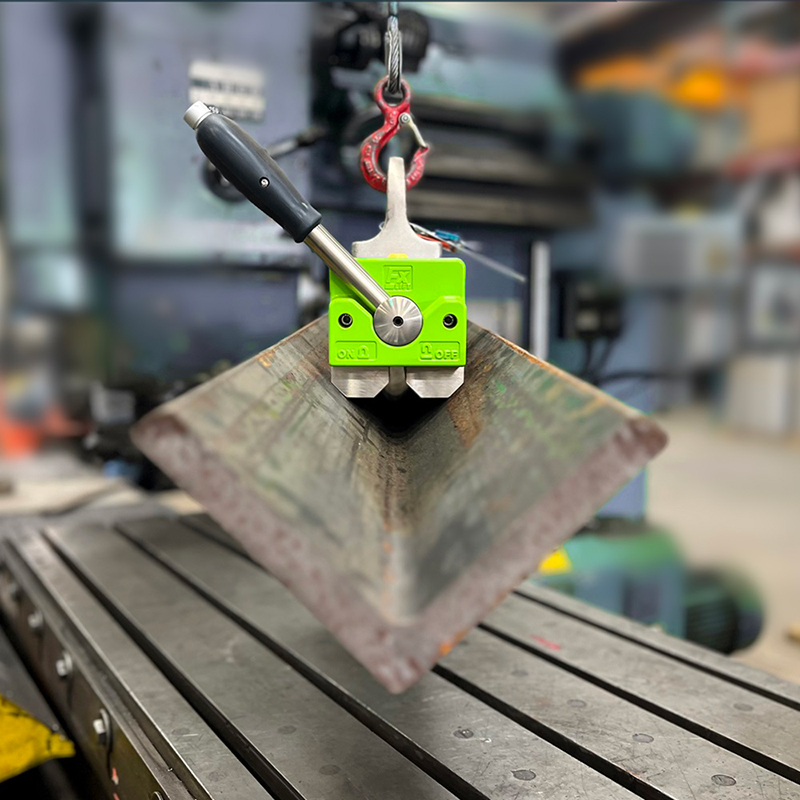

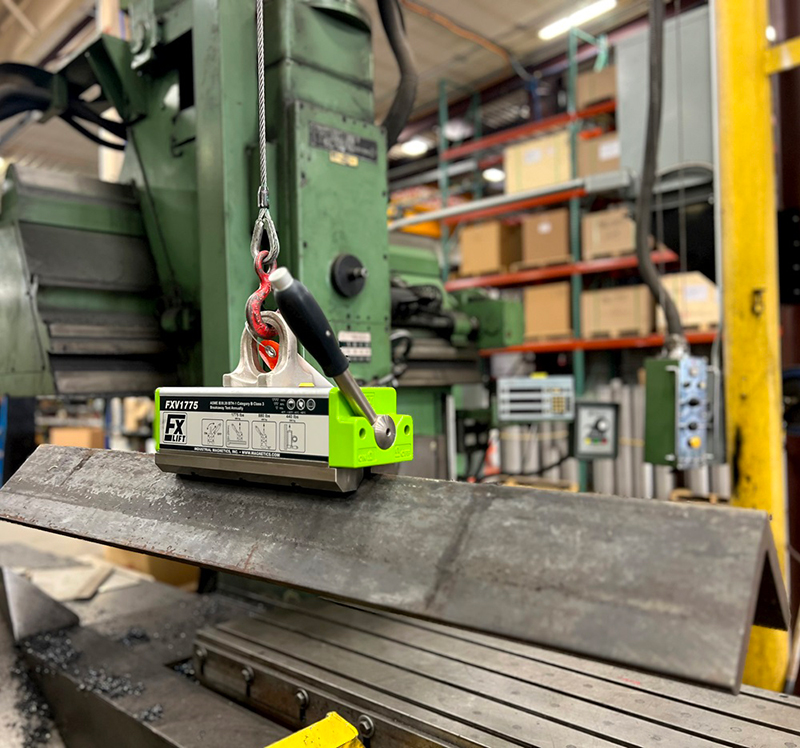

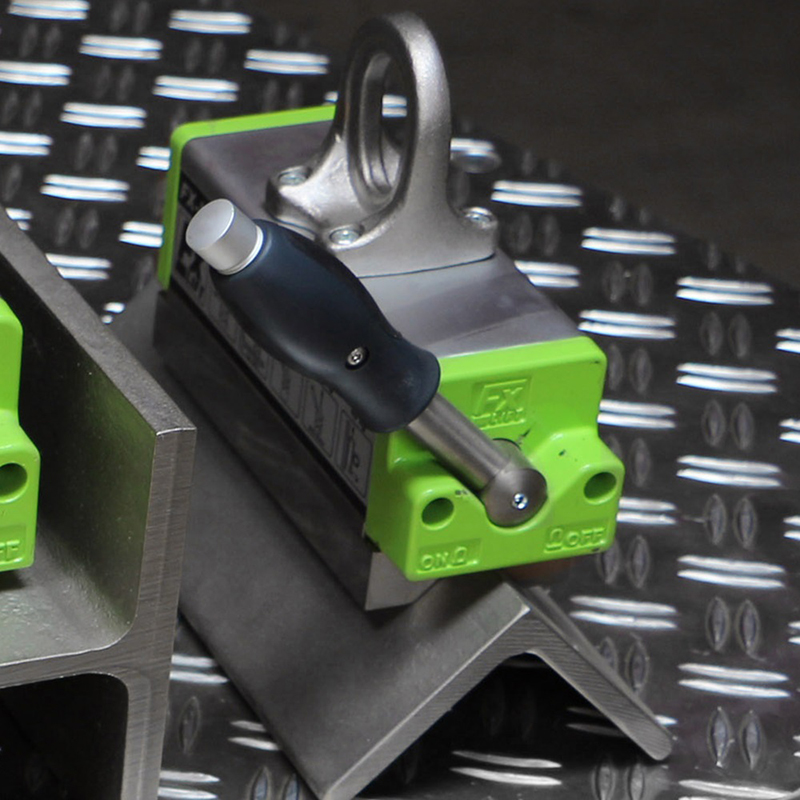

The FXV Series permanent lift magnets work extremely well for inside webbing of I-beams where you need higher handle rotation. The on/off handle only requires 90° rotation and locks at both on/off positions. Durable construction with recessed metal nameplates and corrosion-resistant plated magnet surface. Features a 3:1 design factor and meets 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3.


EMAIL PAGE

EMAIL PAGE


WARNINGS & CAUTIONS

WARNINGS & CAUTIONS

CERTEX Cat. Ref. No. HEIGHT (IN) LENGTH (IN) WEIGHT (LBS) BAIL HEIGHT (IN) BAIL THICKNESS (IN) BAIL WIDTH (IN) WLL (LBS) HANDLE LENGTH (IN) MAGNET HEIGHT (IN) MAGNET LENGTH (IN) MAGNET WIDTH (IN) MAGNET POLE QUALITY
FXV0880 6.9 10.4 29 2 0.5 1.6 880 7.5 3.8 9.4 3.4 2



  • On/Off, Rare-Earth Permanent Magnet
  • On/off handle only requires 90° rotation
  • and locks at both on/off positions
  • Durable, recessed metal name plates, not stickers
  • Corrosion resistant, plated-magnet surface
  • Heat resistant up to 180°F (82°C) Hot Part Handling up to 482°F (250°C) for 4 minutes with reduced WLL
  • 3:1 Design Factor
  • 2018 ASME B30.20 BTH-1 Design Category B, Service Class 3

WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
