• Tapered, heavy duty barrel

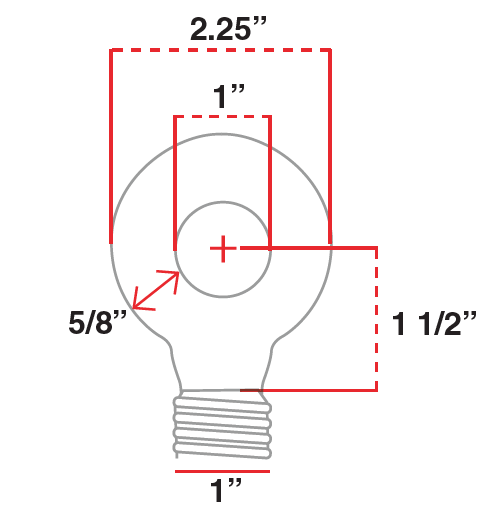

• Eye-Eye end fittings
• Fittings are yellow zinc plated
• Powder coated handle and barrel
• All load bearing fittings are forged
• Quenched and tempered
• One piece handle
• Short Barrel Eye-Eye also available
| STOCK NUMBER | TAKE-UP | BARREL LENGTH | HANDLE LENGTH | SCREW DIAMETER | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) | PROOF LOAD (LBS.) | WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|---|---|---|
| GT13000EE | 8” | 10” | 15.5” | 1” | 14” – 22” | 13,000 | 26,000 | 10 |
WARNING: Prop 65: Products supplied by CERTEX USA may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
